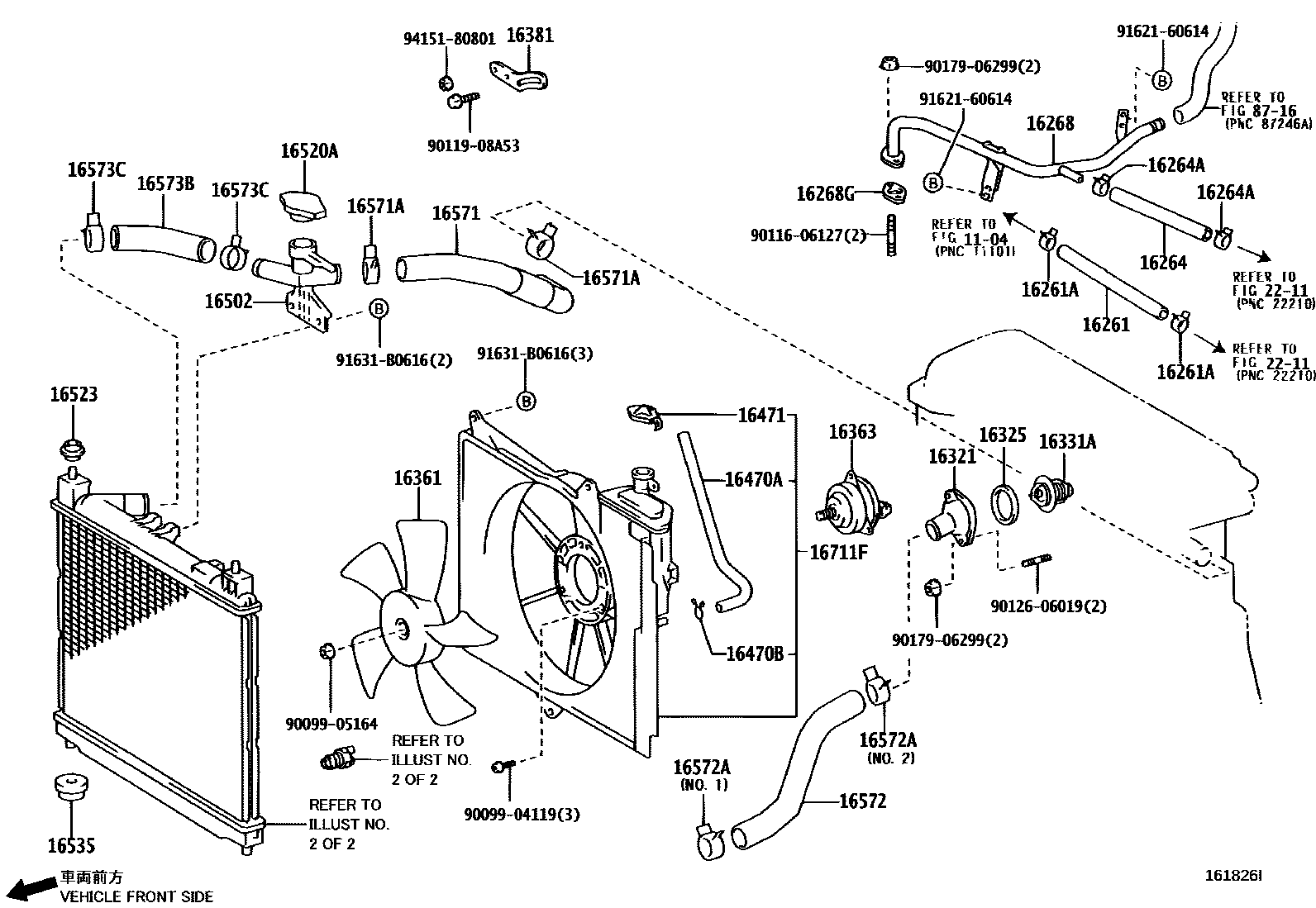

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
L=185
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
L=145
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268GGASKET(FOR WATER BY-PASS PIPE)
sub16258-21021
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 82-95
16363MOTOR, COOLING FAN
sub16363-28160
16381BAR, FAN BELT ADJUSTING
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=545
*H,L=430
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
(L)
(J)
(J)
16502FILLER SUB-ASSY, WATER
16520ACAP SUB-ASSY, WATER FILLER
sub16401-31520
16523CUSHION, SUB-RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
2211
8716
9009904119
main90099-04119
9009905164
main90099-05164
9011606127
main90116-06127
9011908A53
main90119-08A53
9012606019
main90126-06019
9017906299
main90179-06299
9162160614
main91621-60614
91631B0616
main91631-B0616
9415180801
main94151-80801
38 parts on this diagram · 3 diagrams in section
