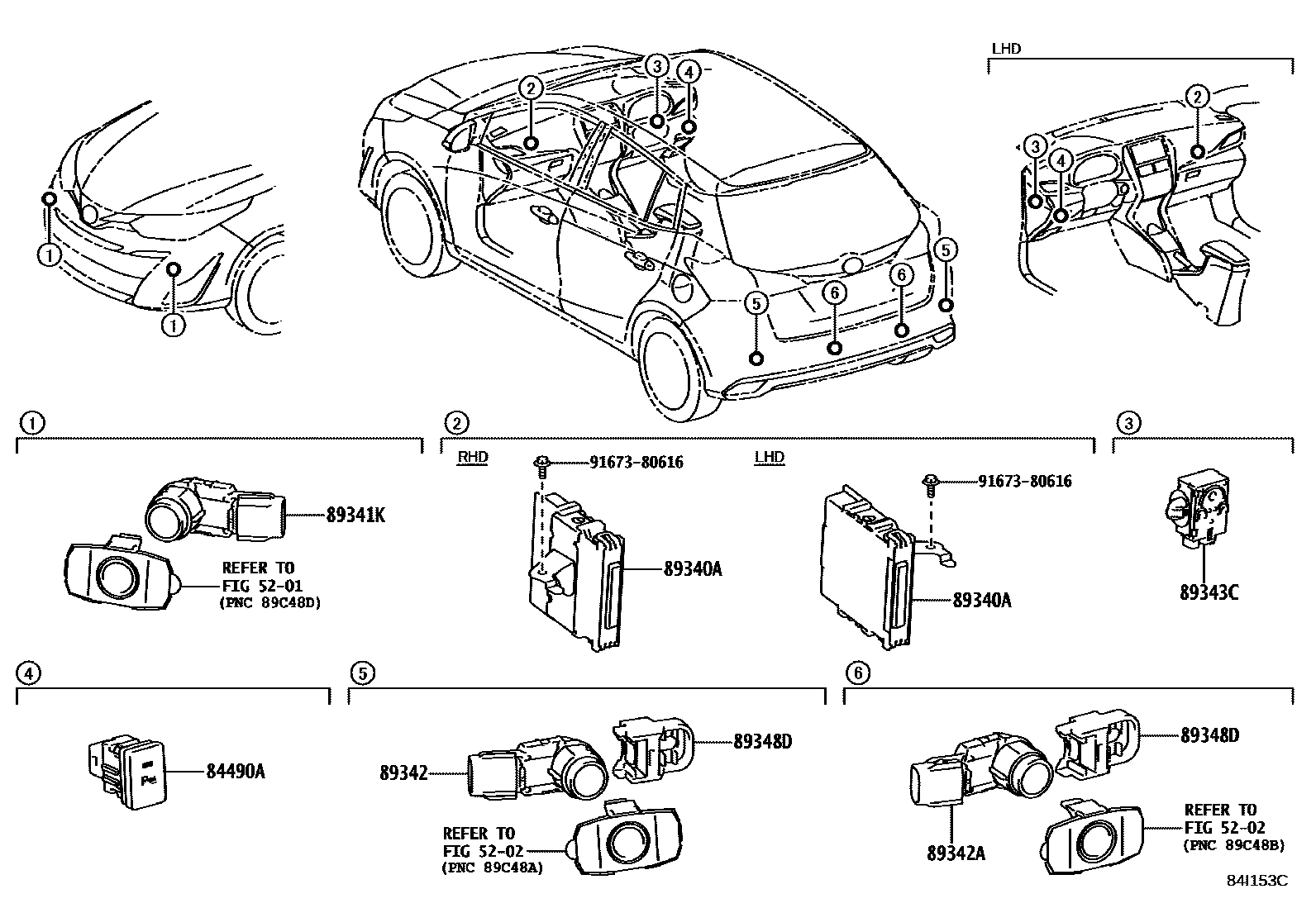

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-0D020201709-202302

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0D020201709

main89340-0D030201710-202101

main89340-0D080202009-202302

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-06080-A0202009-202302

main89341-06080-B0202009-202302

main89341-06080-B2202009-202302

main89341-06080-C0202009-202302

main89341-06080-D1202009-202302

main89341-06080-E3202009-202302

main89341-06080-G0202009-202111

main89341-06080-J4202009-202302

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-06080-A0202009-202302

main89341-06080-B0202009-202302

main89341-06080-B2202009-202302

main89341-06080-C0202009-202302

main89341-06080-D1202009-202302

main89341-06080-E3202009-202302

main89341-06080-G0202009-202111

main89341-06080-J4202009-202302

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-06080-A0201709-202302

main89341-06080-A2201904-202011

main89341-06080-B0201709-202302

main89341-06080-B1202008-202101

main89341-06080-B2201709-202302

main89341-06080-B4202008-202101

main89341-06080-C0201709-202302

main89341-06080-C4202008-202101

main89341-06080-D1201709-202302

main89341-06080-E3201709-202302

main89341-06080-F1202008-202101

main89341-06080-G0201709-202111

main89341-06080-J1202008-202101

main89341-06080-J4202009-202302

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010201709-202302

89348DCLIP, ULTRASONIC SENSOR

main89348-0D040201709-202302

main89348-33190201904-202011

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
