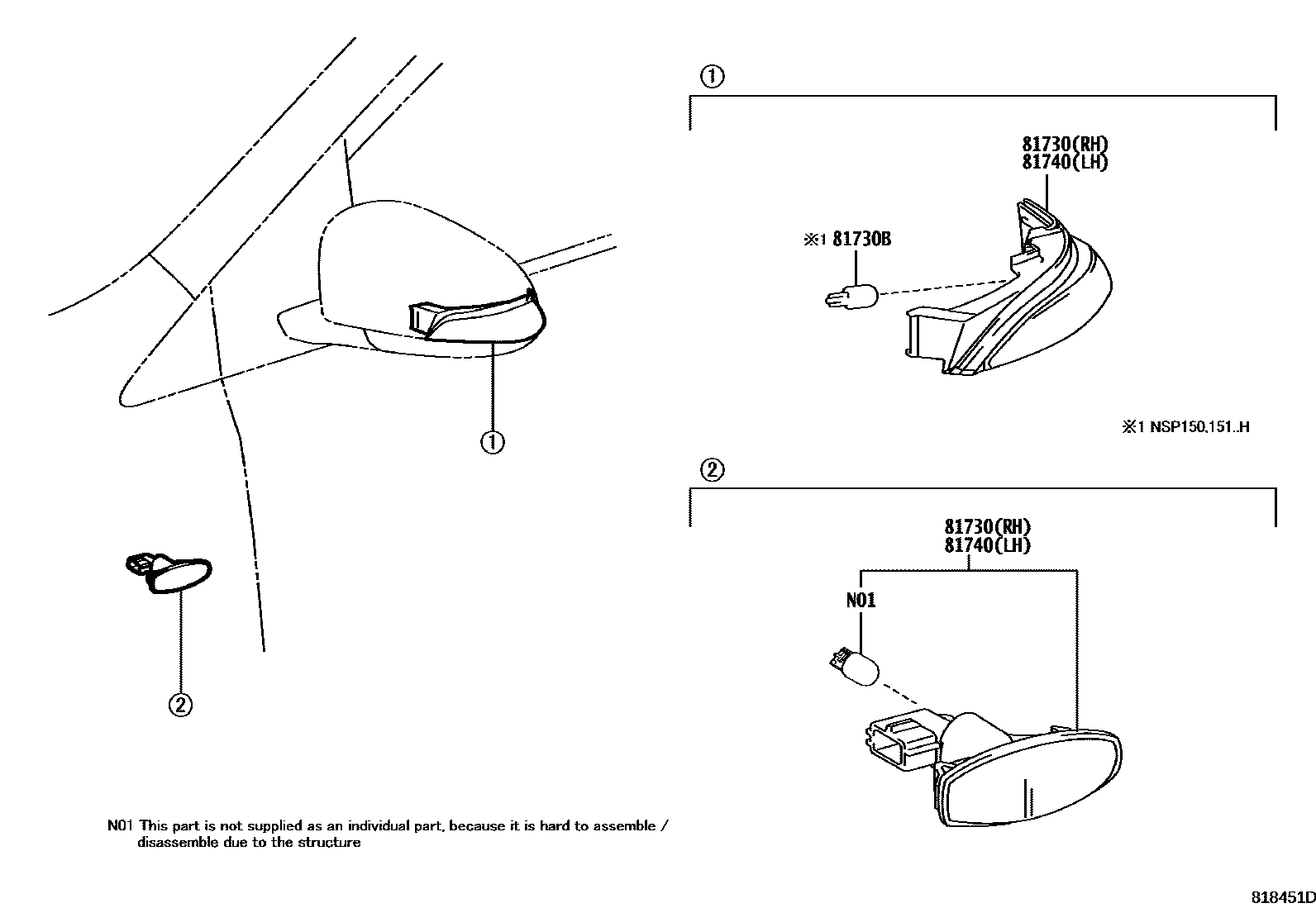

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0D120iNCP150..GCC..R;NCP151,NSP152..D,R;NCP150..(GEN,IDN,TAIW)..(D,G,R)201310-201504

main81730-0D121iNCP150..TAIW..(G,R)201505-201604

main81730-0D180iNSP150,151..H201806-201910

main81730-52100iNCP150..4FC..IDN..G; NCP150..MA;NCP150..V..C201403-201609

BRUNEI SPEC

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-WF011iNSP150,151..H201806-201910

12V 5W

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0D120iNCP150..GCC..R;NCP151,NSP152..D,R;NCP150..(GEN,IDN,TAIW)..(D,G,R)201310-201504

main81730-0D121iNCP150..TAIW..(G,R)201505-201604

main81740-0D180iNSP150,151..H201806-201910

main81740-52050iNCP150..4FC..IDN..G; NCP150..MA;NCP150..V..C201403-201609

BRUNEI SPEC

3 parts on this diagram · 1 diagram in section
