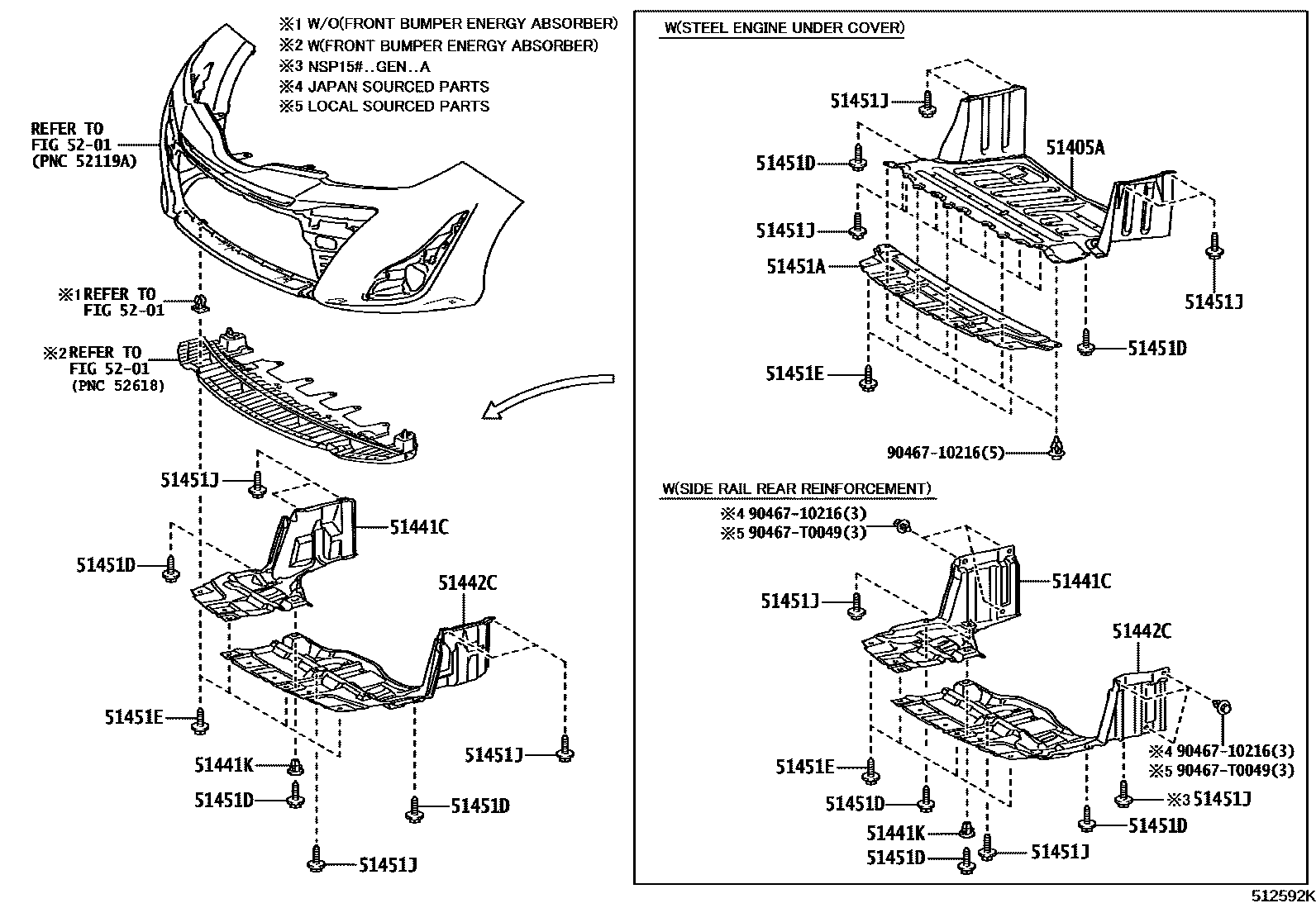

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1UNDER COVER 0002 1SUSPENSION CROSSMEMBER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

51441CCOVER, ENGINE UNDER, RH

main51441-0D280iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main51441-0D320iNSP151..F201409-202101

main51441-0D330iNCP150..C201403-202108

main51441-0D500iNSP150,151..H201806-201910

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06006iNSP150..R..A;NSP151..GCC..R;NSP151..(GEN,PH,SA)..A;NSP150,151..(GEN,VN)..G..A201310-202104

main90189-06006iNSP150..RHD;NSP150..5F..PH202102-202302

(J)

main90189-06076iNSP152..HTWCB;NSP150,151..6F201806-202302

main90189-T0022iNSP150..RHD;NSP150..5F..PH202102-202302

(L)

51442CCOVER, ENGINE UNDER, LH

main51442-0D170iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main51442-0D200iNSP151..TAIW201409-202101

main51442-0D210iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main51442-0D310iNSP150,151..H201806-201910

51451ACOVER, ENGINE UNDER, CENTER

51451DSCREW, NO.1

main90159-60383iNSP151..PH,SA;NSP150..CVT..PH201709-202302

(J)

main90159-60383iNCP150,NSP151..TAIW201409-201802

main90159-T0008iNSP152..HTWC;NSP150,151..GCC..G;NSP151..(D,G,V)..(B,C,H);NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(AGT,BZ)..(D,R)201709-202302

(L)

main90159-T0008iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-201712

51451ESCREW, NO.2

main90159-60488iNSP150,151..H201806-201910

main90159-T0033iNSP151..F201310-202302

51451JBOLT, NO.1

main90119-06767iNSP150,151..F,H201409-202101

main90119-06767iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202302

(J)

main90119-T0144iNSP151..PH,SA;NSP150..CVT..PH201709-202302

(L)

main90119-T0144iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-201712

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

9046710216

main90467-10216

90467T0049

main90467-T0049

11 parts on this diagram · 2 diagrams in section
