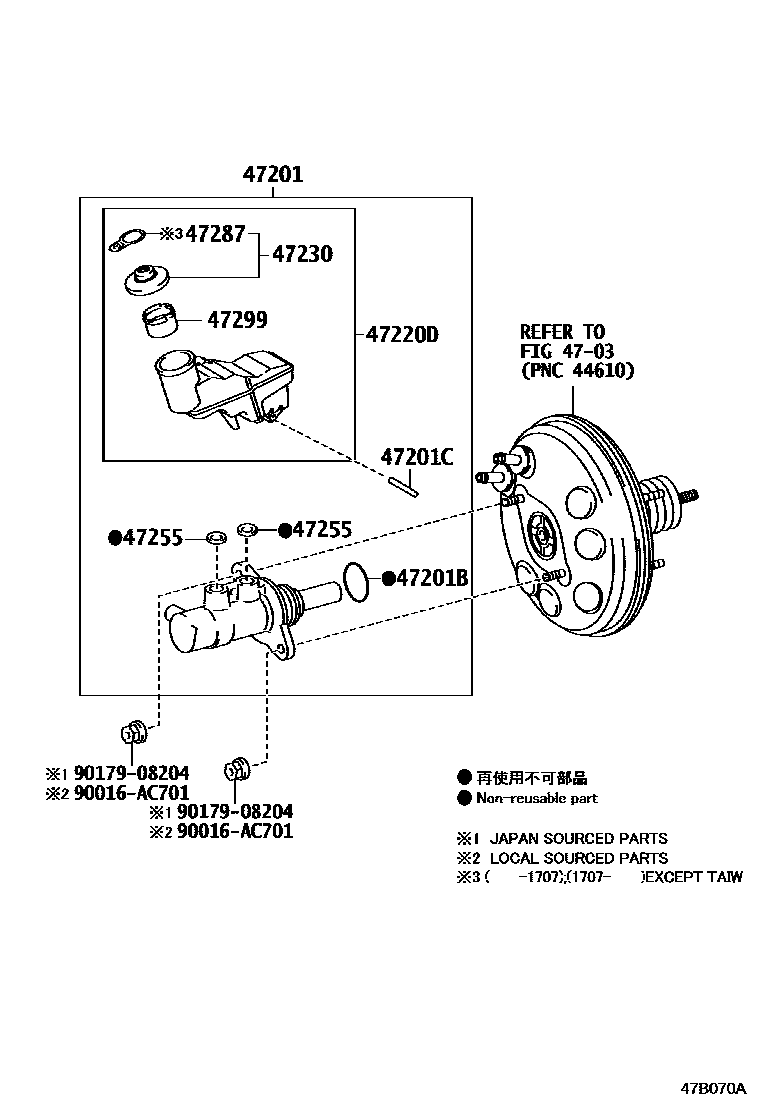

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09870iNSP150,151..CVT..H201806-201910

sub47201-09B50

main47201-09880iNSP150,151..6F201806-201910

sub47201-09B60

main47201-0D410iNCP150..4FC..IDN..(G,R)201310-201609

main47201-0D420iNCP150..5F..(G,R)..C201403-201609

main47201-0D430iNCP150..MA;NCP150..4FC..V..C201403-201609

main47201-0D440iNSP150..5F..G201710-202108

main47201-0D450iNCP151..GCC..G;NCP150..4FC..(GCC,GEN);NCP151..LHD..4FC..(GCC,GEN,PH)..R201403-201606

main47201-0D460iNCP15#..LHD..5F201403-201606

main47201-0D470iNCP151..VN;NCP15#..4FC..(GEN,PH)..G201403-201606

main47201-0D490iNCP150..TAIW..(G,R)201409-201604

main47201-0D500iNCP150..V..A201409-201604

main47201-0D610supersedes 47201-0D410iNSP151..CVT..SA201709-202207

main47201-0D620iNSP151..(G,V)..B201904-202011

main47201-0D630supersedes 47201-0D740iNSP150,151..GCC201607-201708

main47201-0D640supersedes 47201-0D650iNSP150..5F..PH201710-202108

main47201-0D650iNSP150,151..LHD..5F201607-201708

main47201-0D670iNSP151..5F..(G,R)..C201610-201712

main47201-0D680iNSP151..CVT..V..C201610-201712

main47201-0D690iNSP151..5F..V..C201610-201712

main47201-0D720iNSP151..TAIW..(G,R)201605-201802

main47201-0D730iNSP151..TAIW..V201605-201802

main47201-0D740iNSP150,151..LHD..CVT..(GEN,PH)..(D,R)201607-201708

main47201-0D760iNSP151..PH,VN;NSP150..CVT..GEN..G201607-201708

main47201-0D810iNSP151..5F..SA201710-202207

main47201-0D820supersedes 47201-0D820iNSP151..VN201710-202302

main47201-0DA20iNSP151..5F..(G,R)..C201802-201911

main47201-0DA21iNSP151..5F..G201911

main47201-0DA30supersedes 47201-0DA10iNSP151..CVT..V..C201802-201911

BRUNEI SPEC

main47201-0DA31supersedes 47201-0DA31iNSP151..CVT..G..C201911

BRUNEI SPEC

main47201-0DA40iNSP151..5F..V..C201802-201911

main47201-0DA41iNSP151..5F..V..C201911

main47201-0DA50iNSP151..(G,R)..F201804-202101

main47201-0DA60iNSP151..V..F201804-202101

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP151..TAIW201409-201802

main90016-AH903iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iNSP150,151..H201806-201910

main90029-15803iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D220iNSP150,152..RHD..R201310-201708

main47220-0D230iNSP150..5F..G201403-201708

main47220-0D240iNCP15#..LHD..4FC..(GCC,GEN,PH,VN)201403-201606

main47220-0D250iNCP15#..LHD..5F201403-201606

main47220-0D260iNCP150..TAIW201409-201604

main47220-0D370iNSP150,151..LHD..CVT..(GCC,GEN,PH,VN)201607-201708

main47220-0D380iNSP150,151..5F..GEN..R201710-202302

main47220-0D390iNSP151..CVT..C201802

main47220-0D400iNSP151..5F..(G,V)..C201802

main47220-0D430iNSP151..TAIW201605-201802

main47220-0D470iNSP151..F201804-202101

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D160iNSP150,151..H201806-201910

main47230-0D220iNCP15#,NSP152..GCC,GEN,IDN,MA,PH,TH,VN201310-201505

main47230-0D221iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main47230-0D430iNSP151..TAIW201605-201707

main47230-0D440iNSP151..TAIW201707-201802

main47230-0K060iNCP150..TAIW201409-201604

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09050iNSP150,151..H201806-201910

main90016-AT001×2iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main90016-AT004×2iNSP151..C201610-201712

main90029-48001×2iNCP150..TAIW201409-201604

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNCP15#..GCC,GEN,PH,VN201505-201606

main47287-20010iNCP150..TAIW201310-201604

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNCP150..C201310-201609

main47299-20060iNSP151..F201804-202101

main47299-25010iNSP152201911-202302

(J)

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 3 diagrams in section
