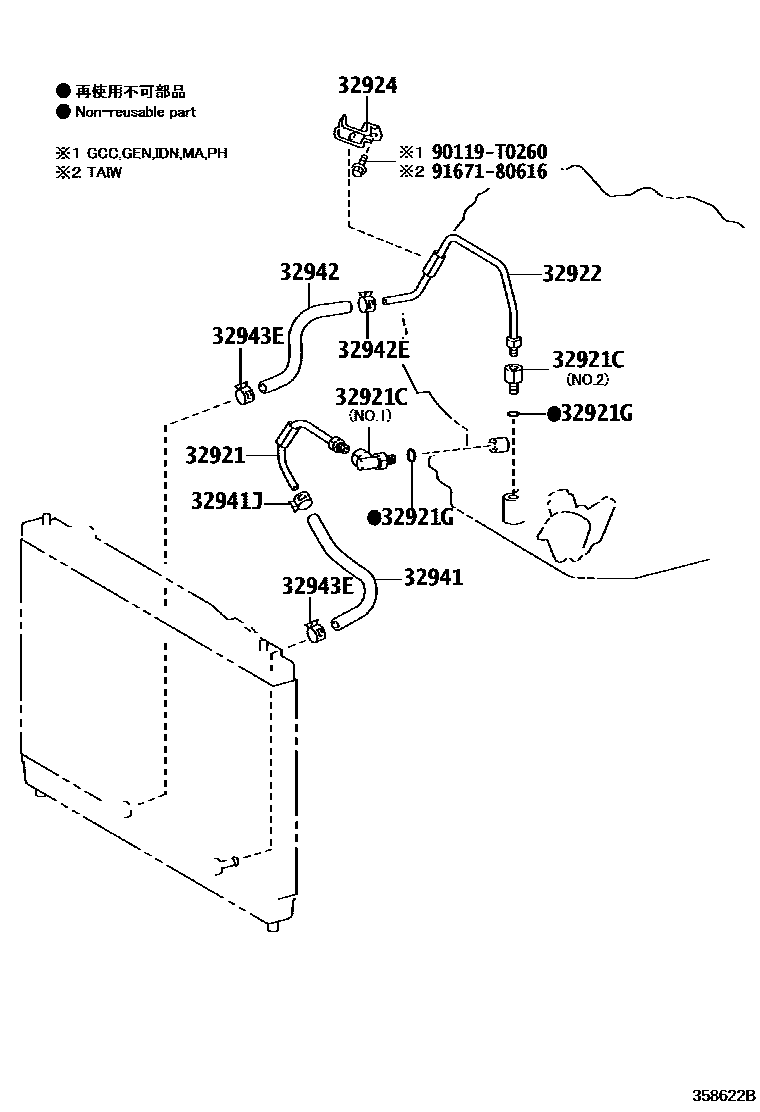

OIL COOLER & TUBE (ATM)

0001 1U340E 0002 1U441E

32921TUBE, OIL COOLER INLET, NO.1

main32921-0D060iNCP150..4FC..(GCC,GEN,PH)201403-201606

main32921-0D070iNCP150..TAIW201409-201604

main32921-0D080iNCP151..4FC201403-201606

main32921-0D090iNCP150..4FC..C201403-201609

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP151..4FC201403-201606

main90404-14007iNCP150..4FC201403-201609

NO.2

main90407-14003iNCP150..4FC201403-201609

NO.1

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iNCP150..4FC201403-201609

main90301-10189iNCP151..4FC201403-201606

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0D060iNCP150..4FC..(GCC,GEN,PH)201403-201606

main32922-0D070iNCP150..TAIW201409-201604

main32922-0D080iNCP151..4FC201403-201606

main32922-0D090iNCP150..4FC..C201403-201609

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52010iNCP150..4FC201403-201609

main90462-10127iNCP151..4FC201403-201606

32941HOSE, OIL COOLER INLET, NO.1

main90445-15044iNCP150..TAIW201409-201604

main90445-T0024iNCP151..4FC201403-201606

main90445-T0027iNCP150..4FC..(GCC,GEN,IDN,MA,PH)201403-201609

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main96137-41501iNCP15#..4FC201403-201609

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-15044iNCP150..TAIW201409-201604

main90445-T0024iNCP151..4FC201403-201606

main90445-T0027iNCP150..4FC..(GCC,GEN,IDN,MA,PH)201403-201609

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main96137-41501iNCP15#..4FC201403-201609

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-T0009iNCP15#..4FC..(GCC,GEN,IDN,MA,PH,VN)201403-201609

main96137-41501iNCP150..TAIW201409-201604

90119T0260

main90119-T0260

9167180616

main91671-80616

12 parts on this diagram · 2 diagrams in section
