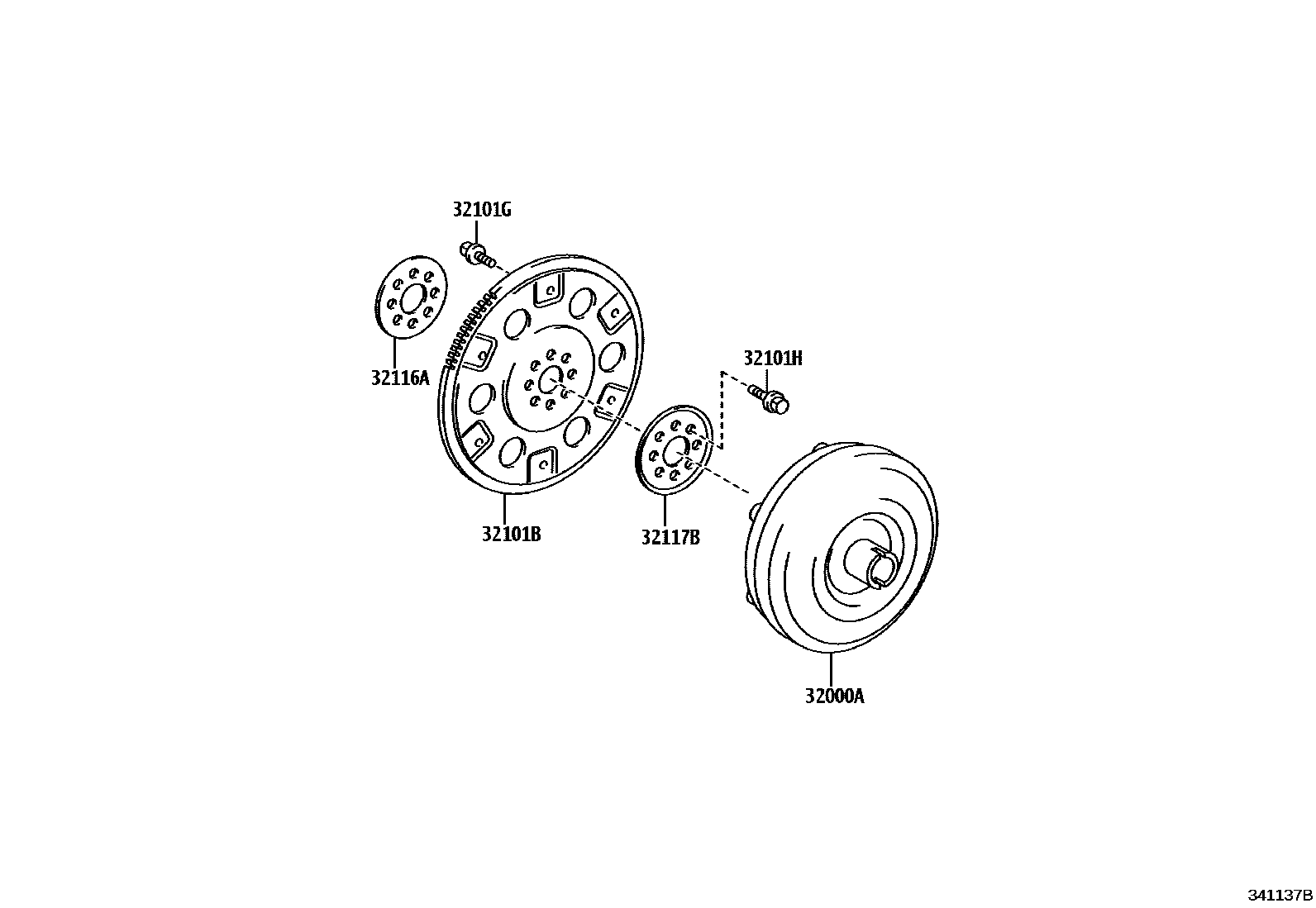

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K312,K411 0002 1K412

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP150..CVT..PH201709-202207

main32000-52190iNSP151..CVT..H201902-201904

AISIN AW:REFER 34-01

main32000-52191iNSP151..CVT..H201904-201910

AISIN AW:REFER 34-01

main32000-52200iNSP151..CVT..(GCC,GEN,IDN,PH,TAIW,VN)201605-201802

main32000-52201iNSP151..VN..R;NSP151..GCC..G;NSP151..CVT..(B,C,H)201906-202503

TMH:REFER 34-01

main32000-52220iNSP150..CVT..H201806-201903

main32000-52221iNSP150..CVT..H201904-201910

main32000-52240iNSP152201911-202302

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP150,151..CVT..(A,C)202101-202108

main32101-52090iNSP152201911-202302

main32111-52110iNSP151..CVT..C202108

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP150,151..CVT..(PH,SA)201709-202207

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)201310-201802

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNSP151..F201709-202101

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP152..HTWC;NSP151..VN..R;NSP150,151..GCC..G;NSP150,151..CVT..(B,C,H)201709

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)201310-201802

6 parts on this diagram · 2 diagrams in section
