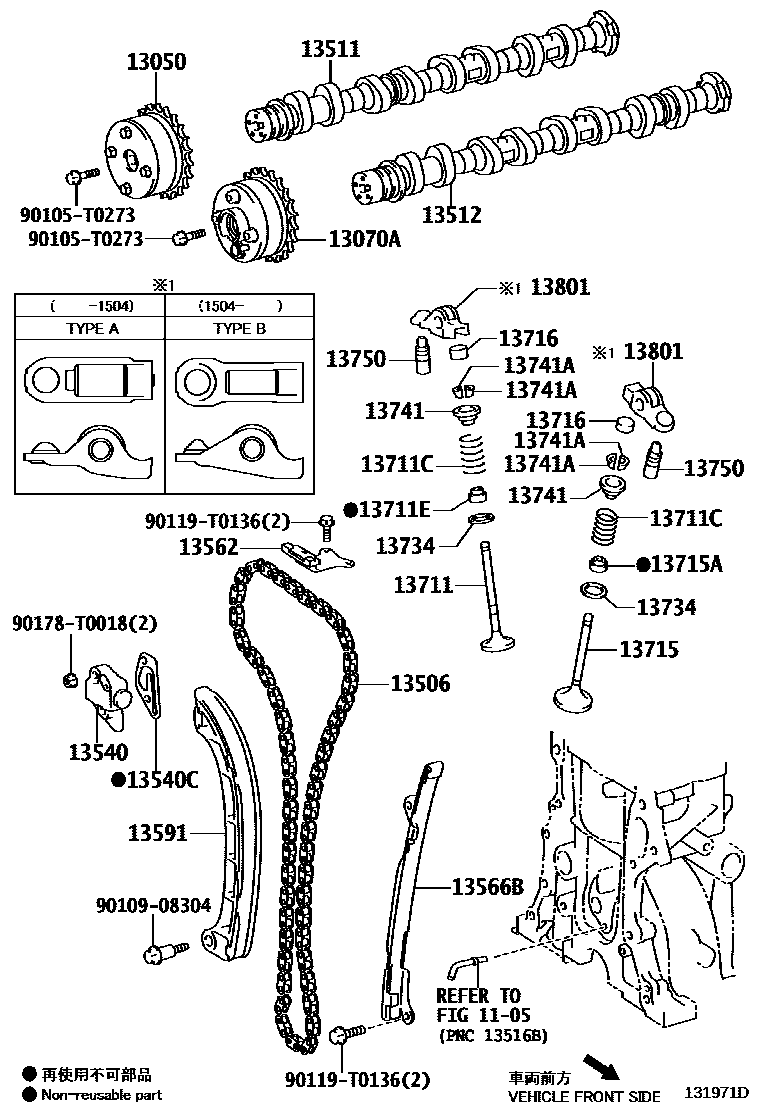

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0005 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0Y020i2NRFE..NSP151..F201710-202302

*230 OR *432,*264

main13050-0Y020i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-201802

*264

main13050-0Y020i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-201802

*230 OR *432

main13050-0Y020i1NRFBE,2NR#..NSP150,151..H201806-201910

main13050-0Y020i2NRFE..NSP151..B201904-202011

*419

main13050-21041i1NZFE..NCP150..TAIW201403-201609

main13050-47011i3NRFE..NSP152201310-201910

main13050-47040i3NRFKE..NSP152201911-202302

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0T011i1NRFBE,2NR#..NSP150,151..H201806-201910

main13070-0Y020i2NRFE..NSP151..C201605-201802

*264

main13070-0Y020i2NRFE..NSP151..C201607-201802

*230 OR *432

main13070-0Y020i2NRFE..NSP151..B201904-202011

*419

main13070-0Y020i2NRFE..NSP151..F201710-202302

*230 OR *432,*264

main13070-0Y060i3NRFKE..NSP152201911-202302

main13070-47010i3NRFE..NSP152201310-201910

13506CHAIN SUB-ASSY

main13506-0M020i1NZFE..NCP150..C201403-201609

(L)

main13506-0Y040i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201607-202302

*230 OR *432

main13506-0Y040i2NRFE..NSP151..C201605-202302

*264

main13506-0Y040i1NRFBE,2NR#..NSP150,151..H201806-201910

main13506-0Y040i2NRFE..NSP151..B201904-202011

*419

main13506-21030i2NZFE..NCP151201403-201606

main13506-21050i1NZFE..NCP150..GCC,GEN,PH201403-201609

(J)

main13506-47030i3NRFE..NSP152201310-201607

13511CAMSHAFT

main13501-0Y040i3NRFE..NSP152201310-201607

sub13501-47020

main13501-0Y050i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201605-202302

*264

main13501-0Y080i1NRFBE,2NRFBE..NSP150,151201806-201910

main13501-0Y090i2NRFE..NSP151..H201806-201910

main13501-0Y100i2NRFE..NSP151..TAIW201607-202302

*230 OR *432

main13501-0Y100i3NRFE..NSP152201709-201910

main13501-0Y140i3NRFKE..NSP152201911-202302

main13501-21030i1NZFE..NCP150..TAIW201403-201609

main13501-BZ040i2NRFE..NSP151..B201904-202011

*419

13512CAMSHAFT, NO.2

main13502-0Y040i3NRFE..NSP152201310-201607

sub13502-47010

main13502-0Y050i2NRFE..NSP151..TAIW201605-202302

*264

main13502-0Y070i1NRFBE,2NR#..NSP150,151..H201806-201910

main13502-0Y080i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-202302

*230 OR *432

main13502-0Y080i3NRFE..NSP152201709-201910

main13502-0Y120i3NRFKE..NSP152201911-202302

main13502-21021i2NZFE..NCP151201403-201606

main13502-21031i1NZFE..NCP150..GCC,GEN,PH201403-201609

main13502-BZ030i2NRFE..NSP151..B201904-202011

*419

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0M010i1NZFE..NCP150201403-201404

(L)

sub13540-0M020

main13540-0M020i1NZFE..NCP150..C201404-201609

main13540-0Y010i2NRFE..NSP151..TAIW201605-202302

*264

main13540-0Y010i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main13540-0Y010i1NRFBE,2NR#..NSP150,151..H201806-201910

main13540-0Y010i2NRFE..NSP151..B201904-202011

*419

main13540-21010i1NZFE..NCP150201403-201404

(J)

sub13540-21020

main13540-21020i2NZFE..NCP151201403-201606

main13540-47010i3NRFE..NSP152201310-201312

sub13540-47011

main13540-47011i3NRFE..NSP152201312-201607

13540CGASKET(FOR CHAIN TENSIONER)

main13552-47010i3NRFE..NSP152201310-201607

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0Y020i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302

*264

main13562-0Y020i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main13562-0Y020i2NRFE..NSP151..B201904-202011

*419

main13562-47020i1NRFBE,2NR#..NSP150,151..H201310-201910

13566BGUIDE, TIMING CHAIN

main13566-0Y010i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201605-202302

*264

main13566-0Y010i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main13566-0Y010i1NRFBE,2NR#..NSP150,151..H201806-201910

main13566-0Y010i2NRFE..NSP151..B201904-202011

*419

main13566-47030i3NRFE..NSP152201310-201607

13591ARM, TIMING CHAIN TENSION

main13591-0Y010i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302

*264

main13591-0Y010i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main13591-0Y010i1NRFBE,2NR#..NSP150,151..H201806-201910

main13591-0Y010i2NRFE..NSP151..B201904-202011

*419

main13591-47030i3NRFE..NSP152201310-201607

sub13591-47050

13711VALVE, INTAKE

main13711-0Y020i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201605-202302

*264

main13711-0Y020i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201607-202302

*230 OR *432

main13711-0Y020i2NRFE..NSP151..B201904-202011

*419

main13711-21010i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201609

main13711-47010i3NRFE..NSP152201310-201607

main13711-47050i1NRFBE,2NR#..NSP150,151..H201806-201910

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-27040i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201609

main90501-32062i3NRFE..NSP152201310-201504

PNC 13801=TYPE A

main90501-T0045i3NRFE..NSP152201504-201607

PNC 13801=TYPE B

main90501-T0045i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-202302

*264

main90501-T0045i1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V);2NRFE,3NRFE..NSP151,152..CVT..(IDN,MA,TH,VN)..R201607-202302

*230 OR *432

main90501-T0045i1NRFBE,2NR#..NSP150,151..H201806-201910

main90501-T0045i2NRFE..NSP151..B201904-202011

*419

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31085i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201605-201802

*264

main90080-31085i3NRFE..NSP152201310-202302

main90080-31085i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201607-201802

*230 OR *432

main90080-31085i2NRFE..NSP151..B201904-202011

*419

main90080-31085i2NRFE..NSP151..F201710-202302

*230 OR *432,*264

main90913-02092i1NZFE..NCP150201403-201512

sub90913-02128

main90913-02093i2NZFE..NCP151201403-201606

main90913-02128i1NZFE..NCP150201512-201609

13715VALVE, EXHAUST

main13715-0Y020i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201605-202302

*264

main13715-0Y020i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201607-202302

*230 OR *432

main13715-0Y020i2NRFE..NSP151..B201904-202011

*419

main13715-21010i1NZFE..NCP150..TAIW201403-201609

main13715-47010i3NRFE..NSP152201310-201607

main13715-47050i1NRFBE,2NR#..NSP150,151..H201806-201910

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31084i2NRFE..NSP151..F201710-202302

*230 OR *432,*264

main90080-31084i3NRFE..NSP152201607-202302

main90080-31084i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201605-201802

*264

main90080-31084i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201607-201802

*230 OR *432

main90080-31084i2NRFE..NSP151..B201904-202011

*419

main90913-02092i2NZFE..NCP151201403-201512

sub90913-02128

main90913-02093i1NZFE..NCP150201403-201609

main90913-02112i3NRFE..NSP152201310-201607

main90913-02128i2NZFE..NCP151201512-201606

13716CAP, VALVE STEM

main13716-0C010i1NRFE..NSP150..LHD..(GCC,GEN)..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,TH)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201607-202302

*230 OR *432

main13716-0C020i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201605-202002

*264

sub13716-0C030

main13716-0C030i2NRFE..NSP151..F202003-202302

*264

main13716-75020i1NRFBE,2NR#..NSP150,151..H201310-201910

main13716-75020i2NRFE..NSP151..B201904-202011

*419

13734SEAT, VALVE SPRING

main13734-0C010i2NRFE..NSP151..B201904-202011

*419

main13734-0C010i3NRFE..NSP152201310-201910

main13734-0C010i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-202302

*264

main13734-0C010i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-202302

*230 OR *432

main13734-74010i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201609

13741RETAINER, VALVE SPRING

main13741-0C020i3NRFE..NSP152201310-201504

PNC 13801=TYPE A

main13741-0C030i2NRFE..NSP151..TAIW201607-202302

*230 OR *432

main13741-0C030i3NRFE..NSP152201504-201607

PNC 13801=TYPE B

main13741-0Y010i2NRFE..NSP151..TAIW201605-202302

*264

main13741-0Y010i2NRFE..NSP151..B201904-202011

*419

main13741-22021i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201609

main13741-36010i1NRFBE,2NR#..NSP150,151..H201806-201910

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i1NRFBE,2NR#..NSP150,151..H201310-201910

main90913-03028i2NRFE..NSP151..TAIW201605-202302

*264

main90913-03028i2NRFE..NSP151..TAIW201607-202302

*230 OR *432

main90913-03028i2NRFE..NSP151..B201904-202011

*419

main90913-03031i1NZFE..NCP150..TAIW201403-201609

13750ADJUSTER ASSY, VALVE LASH

main13750-0C020i3NRFE..NSP152201310-201504

PNC 13801=TYPE A

main13750-0C030i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201607-202302

*230 OR *432

main13750-0C030i3NRFE..NSP152201504-201607

PNC 13801=TYPE B

main13750-0C040i2NRFE..NSP151..F201605-202302

*264

main13750-0C040i2NRFE..NSP151..B201904-202011

*419

main13750-0Y050i1NRFBE,2NR#..NSP150,151..H201806-201910

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0C020i3NRFE..NSP152201504-201607

TYPE B:REFER ILLUST.

main13801-0C020i2NRFE..NSP151..F201607-202302

*230 OR *432

main13801-0C030i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201605-202302

*264

main13801-0C030i2NRFE..NSP151..B201904-202011

*419

main13801-0Y050i1NRFBE,2NR#..NSP150,151..H201806-201910

main13801-47010i3NRFE..NSP152201310-201504

TYPE A:REFER ILLUST.

sub13801-36020

90105T0273

main90105-T0273

9010908304

main90109-08304

90119T0136

main90119-T0136

90178T0018

main90178-T0018

26 parts on this diagram · 4 diagrams in section
