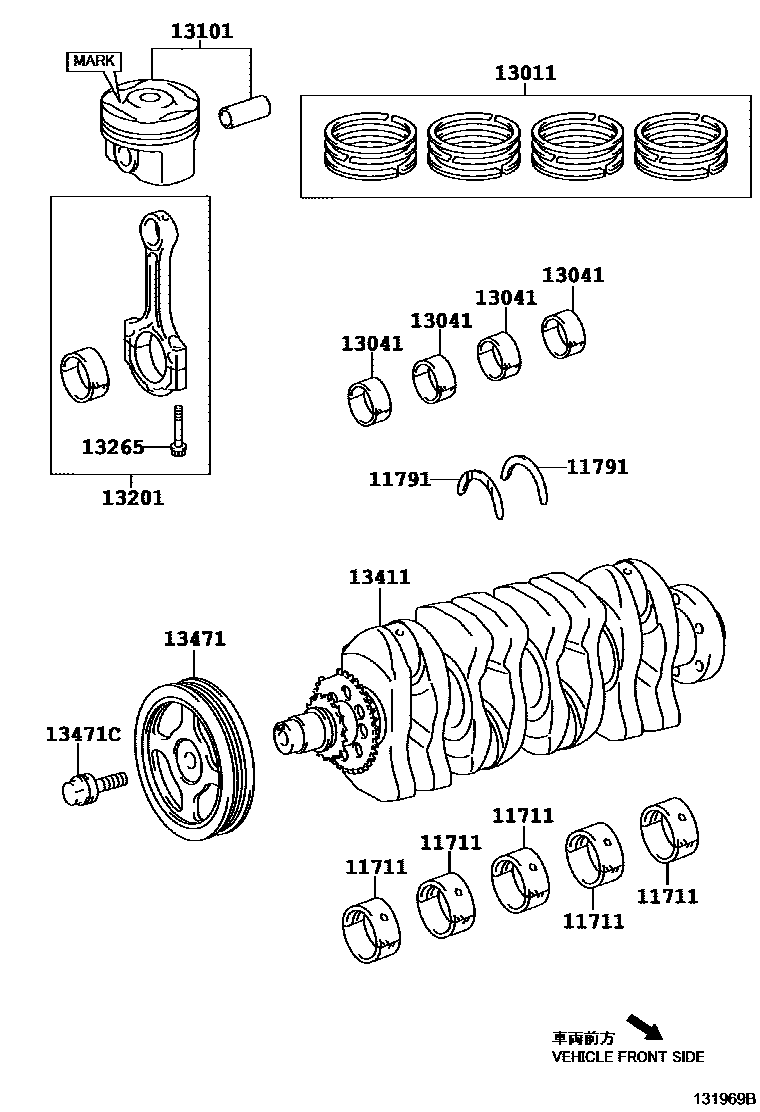

CRANKSHAFT & PISTON

0001 1 0002 1 0004 1

11711BEARING, CRANKSHAFT

main11701-0M030-01×5i1NZFE..NCP150201403-201407

MARK 1,(L),REFER R/M

main11701-0M030-02×5i1NZFE..NCP150201403-201407

MARK 2,(L),REFER R/M

main11701-0M030-03×5i1NZFE..NCP150201403-201407

MARK 3,(L),REFER R/M

main11701-0M030-04×5i1NZFE..NCP150201403-201407

MARK 4,(L),REFER R/M

main11701-0M031-01×5i1NZFE..NCP150..TAIW201408-201604

MARK 1,(L),REFER R/M

main11701-0M031-02×5i1NZFE..NCP150..C201408-201609

MARK 2,(L),REFER R/M

main11701-0M031-03×5i1NZFE..NCP150..GCC,GEN,PH201408-201606

MARK 3,(L),REFER R/M

main11701-0M031-04×5i1NZFE..NCP150..TAIW201408-201604

MARK 4,(L),REFER R/M

main11701-0Y030-02×5i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

MARK2,(L),REFER R/M

main11701-0Y030-03×5i1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V);2NRFE,3NRFE..NSP151,152..CVT..(IDN,MA,TH,VN)..R201709

MARK3,(L),REFER R/M

main11701-0Y030-04×5i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201710-202108

MARK4,REFER REPAIR MANUAL

main11701-0Y030-05×5i2NRFE..NSP151..TAIW201605-201802

MARK5,*264:REFER R/M

main11701-0Y040-02×5i3NRFKE..NSP152201911-202302

MARK2,REFER REPAIR MANUAL

main11701-0Y040-03×5i3NRFKE..NSP152201911-202302

MARK3,REFER REPAIR MANUAL

main11701-0Y040-04×5i3NRFKE..NSP152201911-202302

MARK4,REFER REPAIR MANUAL

main11701-0Y040-05×5i3NRFKE..NSP152201911-202302

MARK5,REFER REPAIR MANUAL

main11701-21020-01×5i1NZFE..NCP150201403-201604

MARK 1,(J),REFER R/M

main11701-21020-02×5i1NZFE..NCP150201403-201604

MARK 2,(J),REFER R/M

main11701-21020-03×5i1NZFE..NCP150201403-201604

MARK 3,(J),REFER R/M

main11701-21020-04×5i1NZFE..NCP150201403-201604

MARK 4,(J),REFER R/M

main11701-21033-01×5i2NZFE..NCP151201403-201606

MARK 1,REFER REPAIR MANUAL

main11701-21033-02×5i2NZFE..NCP151201403-201606

MARK 2,REFER REPAIR MANUAL

main11701-21033-03×5i2NZFE..NCP151201403-201606

MARK 3,REFER REPAIR MANUAL

main11701-21033-04×5i2NZFE..NCP151201403-201606

MARK 4,REFER REPAIR MANUAL

main11701-47012-02×5i3NRFE..NSP152201310-201607

MARK2,REFER REPAIR MANUAL

main11701-47012-03×5i3NRFE..NSP152201310-201607

MARK3,REFER REPAIR MANUAL

main11701-47012-04×5i1NRFE,2NRFE,3NRFE..NSP15#201607-201703

MARK4,*230 OR *432:*RRM

main11701-47012-05×5i3NRFE..NSP152201310-201607

MARK5,REFER REPAIR MANUAL

main11701-47013-02×5i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

MARK2,(J),REFER R/M

main11701-47013-03×5i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108

MARK3,(J),REFER R/M

main11701-47013-04×5i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207

MARK4,(J),REFER R/M

main11701-47013-05×5i2NRFE..NSP151..F201709-202101

MARK5,(J),REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0M020×2i1NZFE..NCP150..TAIW201403-201604

STD,(L)

main11791-0Y010×2i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-201708

STD,*230 OR *432

main11791-0Y040×2i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201710-202207

STD,*264

main11791-22020×2i1NZFE..NCP150201403-201604

STD,(J)

main11791-37010×2i2NZFE..NCP151201403-201606

STD

main11791-47010×2i3NRFE..NSP152201310-201607

STD

main11791-47031×2i3NRFKE..NSP152201911-202302

STD

main11791-B0010×2i2NRFE..NSP151..B201904-202011

STD,*419

main11792-22020×2i1NZFE..NCP150..TAIW201403-201604

O/S 0.125

main11792-37010×2i2NZFE..NCP151201403-201606

O/S 0.125

main11793-22020×2i1NZFE..NCP150..TAIW201403-201604

O/S 0.25

main11793-37010×2i2NZFE..NCP151201403-201606

O/S 0.25

13011RING SET, PISTON

main13011-0M010i1NZFE..NCP150..TAIW201403-201505

STD

main13011-0Y030i2NRFE..NSP151..B201904-202011

STD,*419

main13011-0Y090i1NRFBE,2NRFBE..NSP150,151201806-201910

STD

main13011-0Y130i3NRFKE..NSP152201911-202302

STD

main13011-21050i2NZFE..NCP151201403-201506

STD

main13011-21140i2NZFE..NCP151201506-201606

STD

main13011-47033i3NRFE..NSP152201709-201910

STD

main13011-0M020i1NZFE..NCP150..4FC..IDN..(G,R)201403-201609

STD,BRUNEI SPEC

13041BEARING, CONNECTING ROD

main13041-0M011-01×4i1NZFE..NCP150201403-201407

MARK1,(L),REFER R/M

main13041-0M011-02×4i1NZFE..NCP150201403-201407

MARK2,(L),REFER R/M

main13041-0M011-03×4i1NZFE..NCP150201403-201407

MARK3,(L),REFER R/M

main13041-0M012-01×4i1NZFE..NCP150..GCC,GEN,PH201408-201606

MARK 1,(L),REFER R/M

main13041-0M012-02×4i1NZFE..NCP150..TAIW201408-201604

MARK 2,(L),REFER R/M

main13041-0M012-03×4i1NZFE..NCP150..GCC,GEN,PH201408-201606

MARK 3,(L),REFER R/M

main13041-0Y040-01×4i2NRFE..NSP151..C201605-201712

MARK1,*264:REFER R/M

main13041-0Y040-02×4i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-201708

MARK2,*264:REFER R/M

main13041-0Y040-03×4i1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V);2NRFE,3NRFE..NSP151,152..CVT..(IDN,MA,TH,VN)..R201709

MARK3,*230 OR *432:*RRM

main13041-21033-01×4i2NZFE..NCP151201403-201606

MARK 1,REFER REPAIR MANUAL

main13041-21033-02×4i2NZFE..NCP151201403-201606

MARK 2,REFER REPAIR MANUAL

main13041-21033-03×4i1NZFE..NCP150201403-201604

MARK 3,(J),REFER R/M

main13041-47011-01×4i3NRFE..NSP152201310-201607

MARK1,REFER REPAIR MANUAL

main13041-47011-02×4i3NRFE..NSP152201310-201607

MARK2,REFER REPAIR MANUAL

main13041-47011-03×4i3NRFE..NSP152201310-201607

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0M030×4i1NZFE..NCP150..TAIW201403-201505

STD

main13101-0M040×4i1NZFE..NCP150..C201510-201609

STD

main13101-0Y010×4i3NRFE..NSP152201709-201910

STD

main13101-0Y070×4i3NRFKE..NSP152201911-202302

STD

main13101-0Y120×4i2NRFE..NSP151..C201607-201712

STD,*230 OR *432

main13101-0Y130×4i1NRFE..NSP150..CVT..PH201710-202207

STD,*230 OR *432

main13101-21080×4i2NZFE..NCP151201403-201606

STD

main13101-47081×4i3NRFE..NSP152201310-201401

STD

main13101-47130×4i3NRFE..NSP152201401-201607

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09C20×4i2NRFE..NSP151..B201904-202011

*419

main13201-09C30×4i1NRFE..NSP150..CVT..PH201710-202207

*264

main13201-09C40×4i1NRFBE..NSP150201806-201910

main13201-09C50×4i2NR#..NSP151..H201806-201910

main13201-09C60×4i2NRFE..NSP151..GCC,GEN,PH,VN201607-201708

*230 OR *432

main13201-09C70×4i1NRFE..NSP150..RHD;1NRFE..NSP150..5F..PH201709-202108

*230 OR *432

main13201-29717×4i2NZFE..NCP151201403-201606

main13201-29757×4i1NZFE..NCP150..C201403-201609

main13201-49086×4i3NRFE..NSP152201310-201607

13265BOLT, CONNECTING ROD

main13265-0Y010×8i2NRFE..NSP151..F201908-202101

(L),*230 OR *432

main13265-0Y020×8i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201904-202207

(L),*264

main13265-21020×8i2NRFE..NSP151..F;1NRFE,2NRFE,3NRFE..NSP15#..(GCC,GEN,IDN,MA,PH,SA,TH,VN)..(A,B,C)201709-201908

*230 OR *432

13411CRANKSHAFT

main13401-0Y110i3NRFE..NSP152201510-201607

(L)

main13401-0Y120i2NR#..NSP151..H201806-201910

(L)

main13401-0Y130i1NRFBE..NSP150201806-201910

(L)

main13401-0Y140i2NRFE..NSP151..PH,SA201710-202207

*264

main13401-0Y150i2NRFE..NSP151..PH,SA201710-202207

*230 OR *432

main13401-0Y160i3NR#..NSP152201709-202302

main13401-0Y170i1NRFE..NSP150..RHD;1NRFE..NSP150..5F..PH201710-202108

*230 OR *432

main13401-0Y180i1NRFE..NSP150..LHD..(GCC,GEN)201710-202302

*264

main13401-21020i1NZFE..NCP150..C201403-201609

main13401-21030i2NZFE..NCP151201403-201606

main13401-47060i3NRFE..NSP152201510-201607

(J)

main13401-47070i1NRFBE..NSP150201806-201910

(J)

main13401-47090i2NR#..NSP151..H201806-201910

(J)

main13401-BZ100i2NRFE..NSP151..B201904-202011

*419

13471PULLEY, CRANKSHAFT

main13470-0Y020i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201710-202108

*264

main13470-0Y030i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-201708

*230 OR *432

main13470-0Y040i3NR#..NSP152201709-202302

main13470-47070i3NRFE..NSP152201310-201607

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE..NCP150..C201310-201609

main90119-T0444i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*230 OR *432,*264

main90119-T0529i2NRFE..NSP151201605-201606

*264
