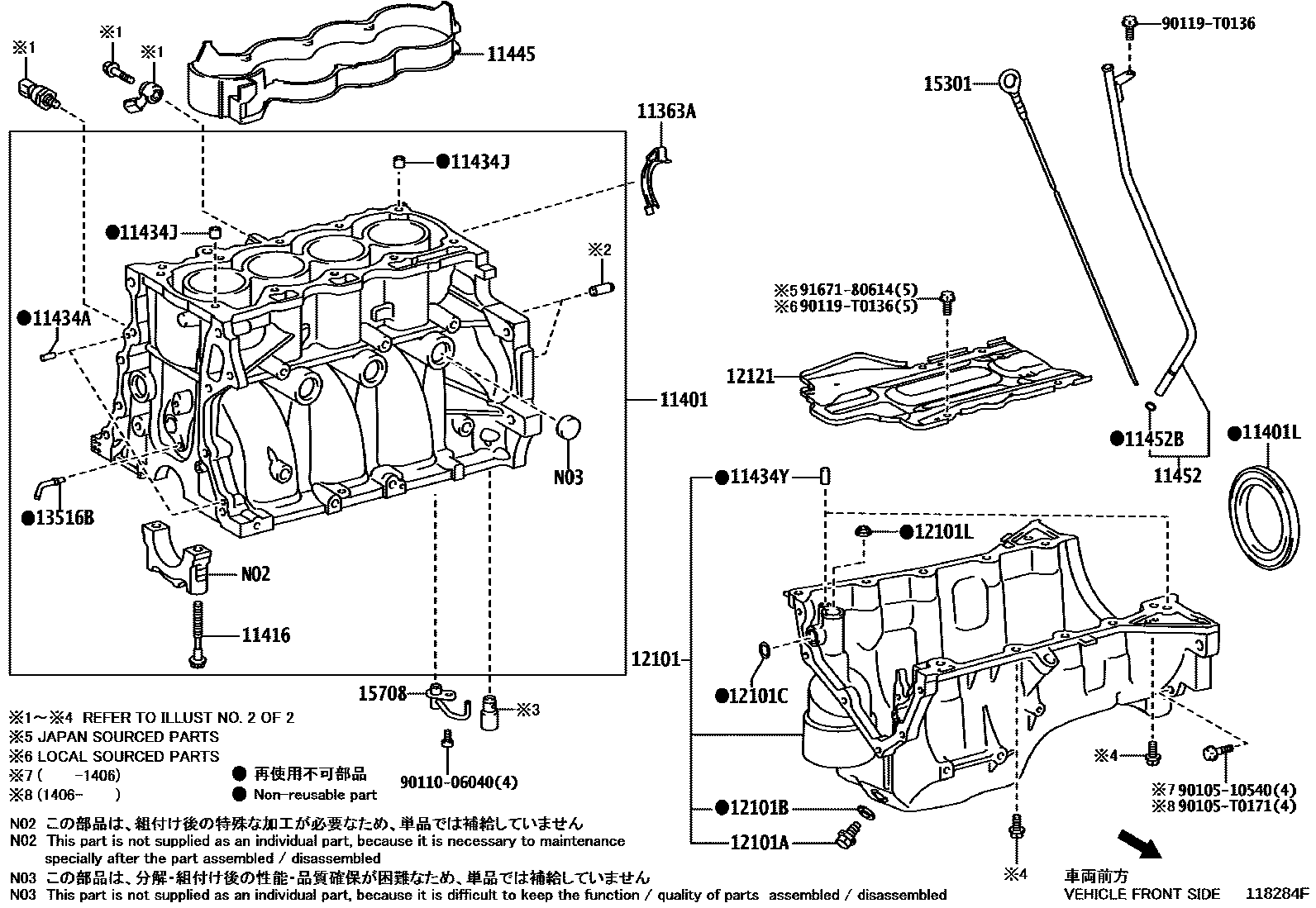

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0M010i201403-201609

(L)

main11363-0Y020i201605-202302

main11363-0Y020i201310-201607

(L)

main11363-0Y040i201806-201910

main11363-21010i201403-201608

(J)

main11363-40010i201310-201607

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-29847i201403-201512

main11401-29848i201512-201606

main11401-29858i201403-201512

main11401-80881i201512-201609

main11410-09700i201605-202302

*264

main11410-09710i201607-202302

*264

main11410-09725i201806-201910

(L)

main11410-09735i201806-201910

(L)

main11410-09740i201607-202302

*230 OR *432

main11410-09750i201607-202302

*230 OR *432

main11410-09760i201607-202302

main11410-49037i201310-201607

main11410-49095i201806-201910

(J)

main11410-49105i201806-201903

(J)

main11410-49106i201903-201910

(J)

main11410-B9050i201904-202011

*419

11401LSEAL, ENGINE REAR OIL

main90311-75019i201403-201603

(J)

main90311-75019i201403-201604

main90311-75022i201604-201609

(J)

main90311-78005i201310-201607

main90311-T0033i201403-201609

(L)

main90311-T0073i201607-202302

*230 OR *432

main90311-T0074i201605-202302

*264

main90311-T0074i201806-201910

main90311-T0074i201904-202011

*419

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i201403-201609

main90910-02175i201806-201910

(J)

main90910-02175i201310-201607

main90910-T2013i201710-202302

*230 OR *432,*264

main90910-T2013i201605-201802

*264

main90910-T2013i201607-201802

*230 OR *432

main90910-T2013i201806-201910

(L)

main90910-T2013i201904-202011

*419

main90910-T2013i201709-202302

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i201607-202302

L=12,OD=4.0,*230 OR *432

main90250-04097i201310-201910

L=12,OD=4.0

main90250-04097i201605-202302

L=12,OD=4.0,*264

main90250-04097i201904-202011

L=12,OD=4.0,*419

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i201310-201910

main90253-13017i201605-202302

*264

main90253-13017i201607-202302

*230 OR *432

main90253-13017i201904-202011

*419

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074i201310-201607

main90250-08120i201403-201910

main90250-08120i201403-201604

(J)

main90250-08120i201605-202302

*264

main90250-08120i201607-202302

*230 OR *432

main90250-08120i201904-202011

*419

main90250-T0007i201403-201609

(L)

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i201605-202302

*264

main11445-0Y020i201607-202302

*230 OR *432

main11445-0Y020i201806-201910

main11445-0Y020i201904-202011

*419

main11445-47010i201310-201607

main11445-47050i201911-202302

NO.1

main11445-47060i201911-202302

NO.2

11452GUIDE, OIL LEVEL GAGE

main11409-47012i201310-201607

main11452-0M010i201403-201609

(L)

main11452-0M020i201409-201604

(L)

main11452-0Y020i201605-202409

*264

main11452-0Y020i201806-201910

main11452-0Y020i201904-202011

*419

main11452-0Y030i201607-202302

*230 OR *432

main11452-0Y050i201607-201910

main11452-0Y080i202410

*264

main11452-21030i201403-201609

(J)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i201904-202011

*419

main90301-T0025i201607-202302

*230 OR *432

main90301-T0025i201403-201609

(L)

main90301-T0025i201709-201910

main90301-T0060i201806-201910

main90301-T0060i201605-202302

*264

main96721-19010i201403-201609

(J)

main96721-19010i201403-201604

main96741-19010i201310-201607

12101PAN SUB-ASSY, OIL

main12101-0Y040i201605-202302

*264

main12101-0Y040i201904-202011

*419

main12101-0Y060i201806-201910

main12101-0Y070i201607-202302

*230 OR *432

main12101-0Y080i201607-202302

*264

main12101-0Y090i201607-202302

*230 OR *432

main12101-47101i201310-201607

main12111-0M010i201403-201609

(L)

main12111-21033i201403-201609

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i201403-201609

main90341-12032i201607-202302

*230 OR *432

main90341-12032i201310-201910

main90341-T0017i201605-202302

*264

main90341-T0017i201904-202011

*419

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i201310-201910

main90430-T0024i201605-202302

*264

main90430-T0024i201607-202302

*230 OR *432

main90430-T0024i201904-202011

*419

12101CRING, O(FOR OIL PAN)

main90301-19023i201310-201607

main90301-T0041i201403-201609

(L)

main90301-T0054i201607-202302

*230 OR *432,NO.1

main90301-T0055i201806-201910

NO.1:REFER ILLUST.

main90301-T0055i201605-202302

*264,NO.1

main90301-T0055i201904-202011

*419,NO.2

main90301-T0056i201607-202302

*230 OR *432,NO.2

main90301-T0057i201904-202011

*419,NO.1

main90301-T0057i201605-202302

*264,NO.2

main90301-T0057i201806-201910

NO.2:REFER ILLUST.

main96722-24020i201403-201606

main96722-24020i201403-201604

(J)

12101LGASKET NO.1(FOR OIL PAN)

main90430-12039i201310-201607

main90430-T0022i201607-202302

*230 OR *432

main90430-T0023i201605-202302

*264

main90430-T0023i201806-201910

main90430-T0023i201904-202011

*419

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y030i201605-202302

*264

main12121-0Y050i201806-201910

main12121-0Y060i201607-202302

*230 OR *432

main12121-0Y090i202007-202302

*264

main12121-47030i201607-202302

*230 OR *432

main12121-47030i201607-202006

*264

main12121-B1060i201310-201607

main12121-BZ090i201904-202011

*419

13516BJET, OIL

main13516-21011i201403-201609

main13516-40010i201310-201607

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0M010i201403-201609

main15301-0Y010i201605-202302

*264

main15301-0Y010i201904-202011

*419

main15301-0Y040i201607-202302

*230 OR *432

main15301-0Y070i201710-202302

*264

main15301-0Y070i201607-202207

*230 OR *432,*264

main15301-0Y070i201709-201910

main15301-0Y070i201710-202302

*230 OR *432

main15301-0Y080i201806-201910

main15301-21060i201403-201606

main15301-47050i201310-201607

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040i201607-202302

*230 OR *432

main15708-0Y040i201605-202302

*264

main15708-0Y040i201806-201910

main15708-0Y040i201904-202011

*419

main15708-47031i201310-201501

main15708-47080i201502-201607

9010510540

main90105-10540

90105T0171

main90105-T0171

9011006040

main90110-06040

90119T0136

main90119-T0136

9167180614

main91671-80614
