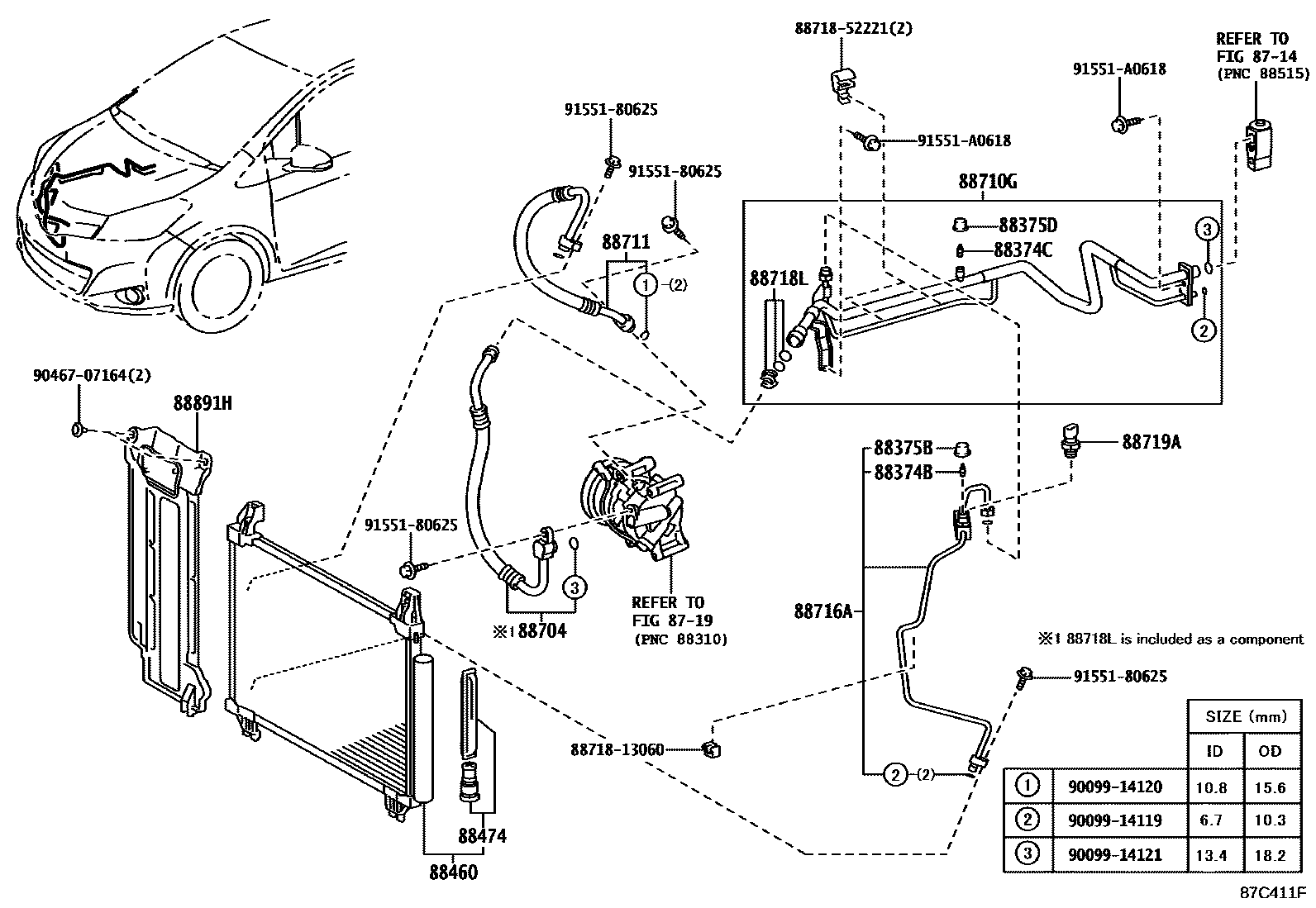

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88460CONDENSER ASSY, COOLER

main88460-52130iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88474DRYER, COOLER

main88474-12030iNCP131..CND201108-201407

FRONT AIR CONDITIONER-DEALER OPTION

88704HOSE SUB-ASSY, SUCTION

main88704-52250iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-52040iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52380iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-52720iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88718LCLAMP, PIPING

main88718-52260iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

main88718-52280iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

88891HCOVER, COOLER, NO.1

main88891-52100iNCP131..USA201108

FRONT AIR CONDITIONER-WITHOUT

8871813060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13060

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9046707164

main90467-07164

9155180625

main91551-80625

91551A0618

main91551-A0618

23 parts on this diagram · 2 diagrams in section
