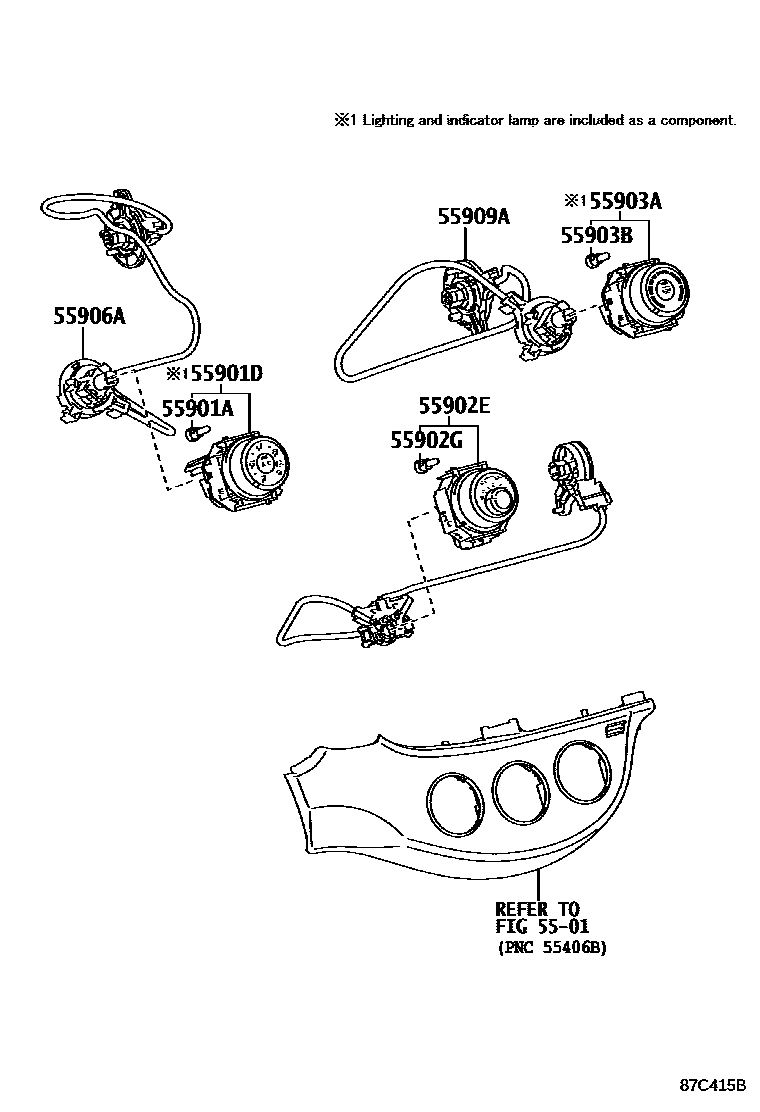

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR

5501

55901ABULB, HEATER CONTROL SUB-ASSY, NO.1

main90010-01145iNCP131201108

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-52400iNCP131201108-201407

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-52220supersedes 55902-52200iNCP131..CND201108

REAR WINDOW DEFOGGER-WITH(TIMER)

55902GBULB, HEATER CONTROL SUB-ASSY, NO.2

main90010-01145iNCP131201108

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-52660supersedes 55903-52690iNCP131..USA201108-201407

REAR WINDOW DEFOGGER-WITH(TIMER)&FRONT AIR CONDITIONER-WITHOUT

main55903-52680supersedes 55903-52650iNCP131..CND201108-201407

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

55903BBULB, HEATER CONTROL SUB-ASSY, NO.3

main90010-01145iNCP131201108

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP131201108-201407

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP131201108-201407

9 parts on this diagram · 4 diagrams in section
