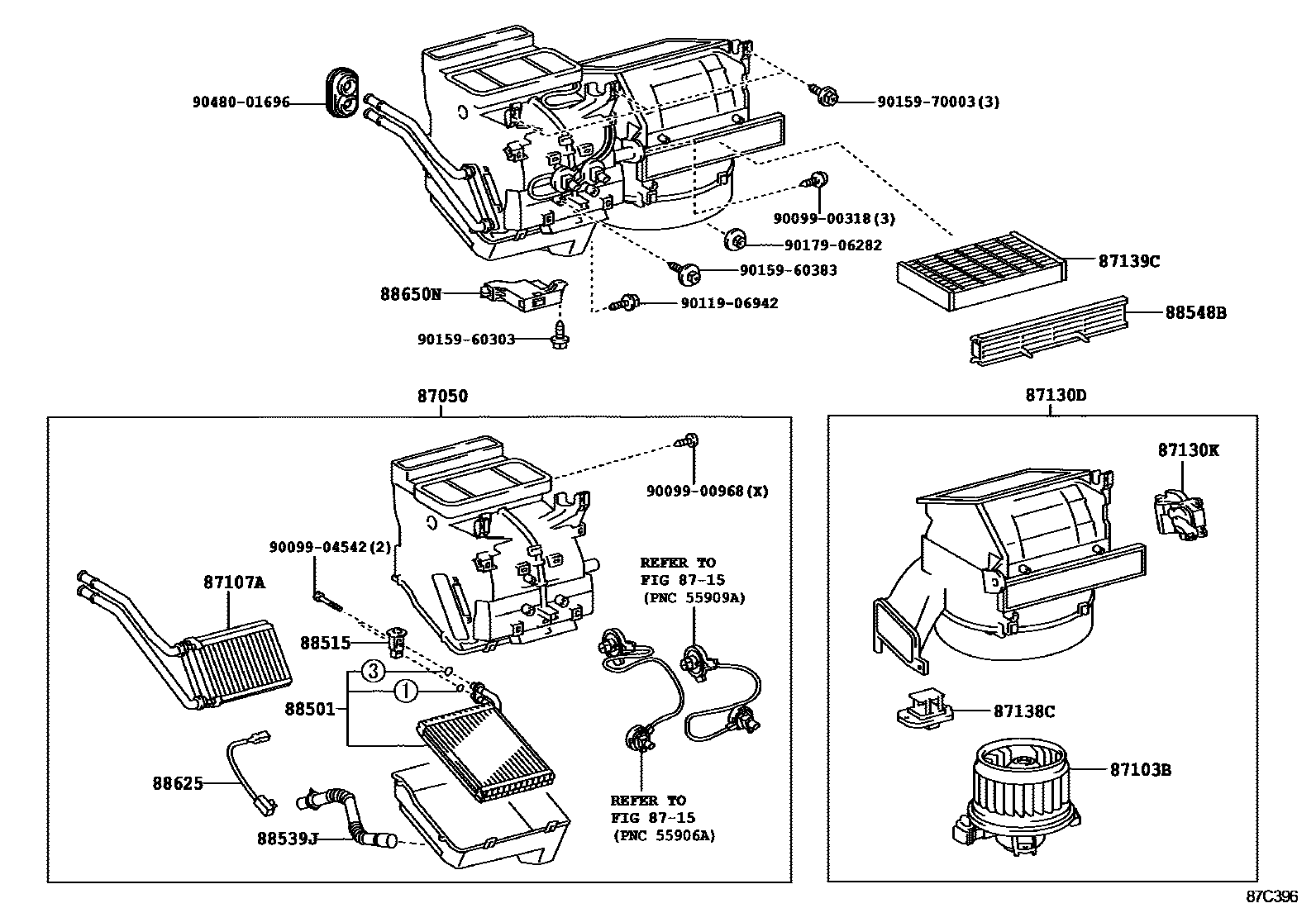

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL 0002 1MANUAL & W(HEATER) 0003 1W/O(AIR CONDITIONER) 0004 1W/O(AIR CONDITIONER) & W(HEAT0005 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52102supersedes 87050-52280iNCP131..USA201108

FRONT AIR CONDITIONER-WITHOUT

main87050-52113supersedes 87050-52270iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52180iNCP131201108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52061iNCP131201108

87130DBLOWER ASSY

main87130-52140iNCP131201108

main87130-52150iNCP131..CND201108

FRONT AIR CONDITIONER-DEALER OPTION

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-52110iNCP131201108

87138CRESISTOR, BLOWER

main87138-52030iNCP131201108

87139CFILTER, CLEAN AIR

main87139-30040iNCP131201108-201204

POLLEN FILTER

main87139-50100iNCP131201205-201407

*DPF

main87139-52020iNCP131201108-201407

MICRO DUST FILTER

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52102iNCP131201108-201111

main88501-52103iNCP131201112

88515VALVE, COOLER EXPANSION

main88515-50190iNCP131201108

88539JHOSE, DRAIN COOLER

main88539-52040iNCP131201108

88548BCASE, AIR FILTER

main88548-52040iNCP131201108

88625THERMISTOR, COOLER, NO.1

main88625-26090iNCP131201108

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52700supersedes 88650-52690iNCP131..CND201108-201407

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main88650-52720supersedes 88650-52690iNCP131..CND201108-201407

FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER)

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

23 parts on this diagram · 5 diagrams in section
