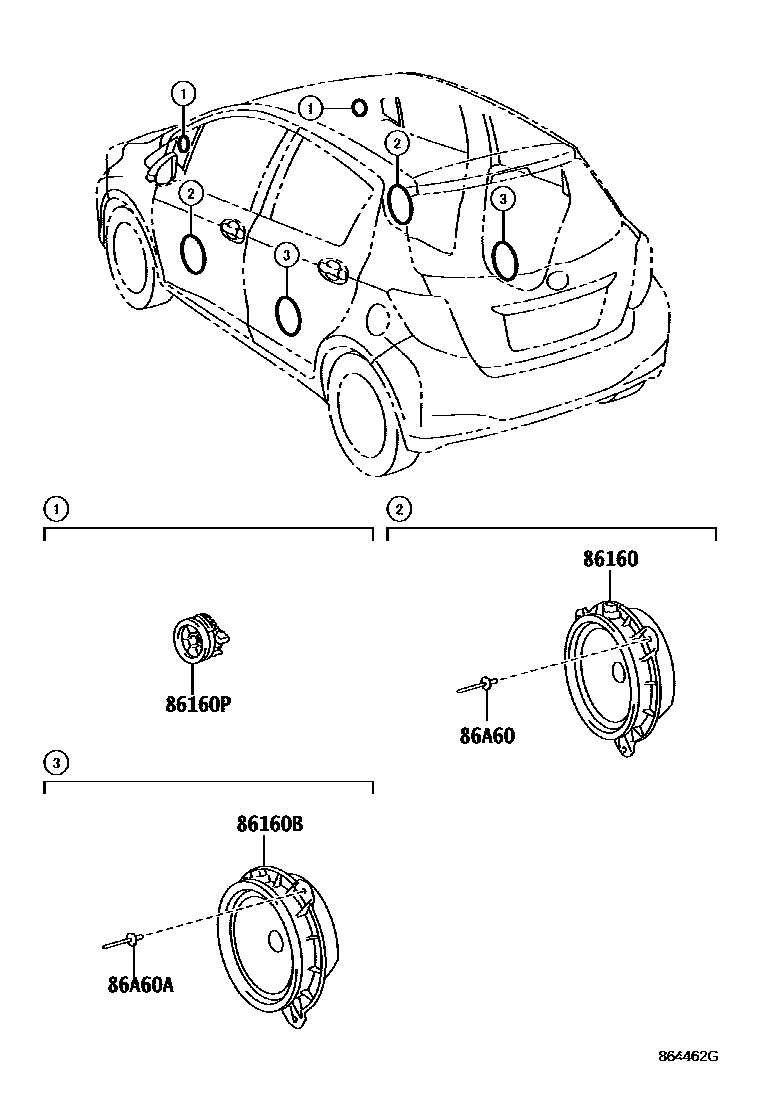

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-52310×2iNCP131..STD201404

main86160-52330×2iNCP131..STD201108-201404

sub86160-52331

86160BSPEAKER ASSY, REAR

main86160-52310×2iNCP131201404

main86160-52330×2iNCP131201108-201404

sub86160-52331

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340×2iNCP131..USA201108

AUDIO-RADIO LESS & 6SPEAKER

86A60RIVET (FOR RADIO SPEAKER)

main90269-05034×6iNCP131201108-201407

86A60ARIVET (FOR RADIO SPEAKER)

main90269-05034×6iNCP131201108-201407

5 parts on this diagram · 1 diagram in section
