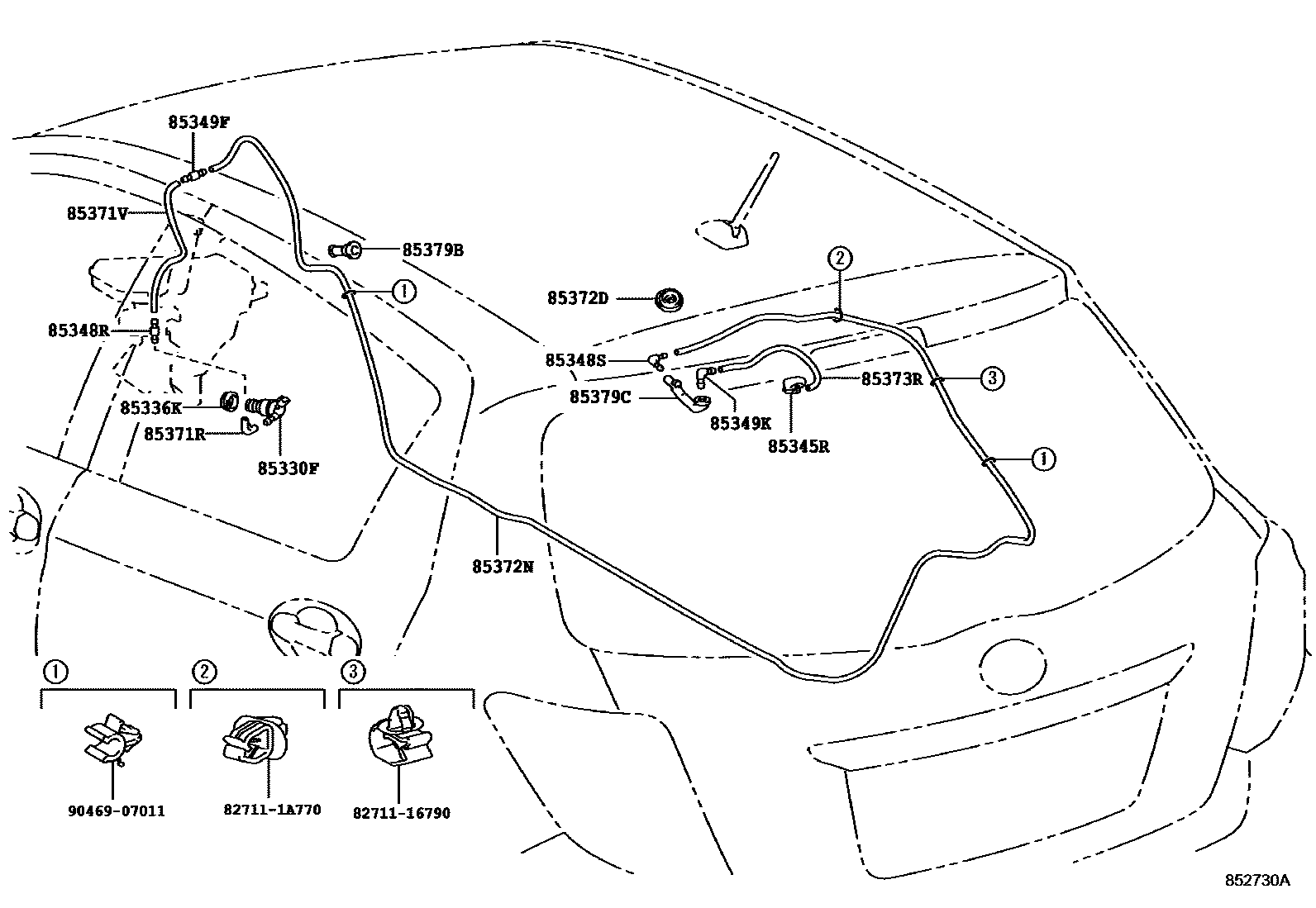

REAR WASHER

0001 1 0002 1 0003 1COLD SPEC

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180supersedes 85330-60160iNCP131..CND201108

COLD AREA SPEC

85336KPROTECTOR, WASHER JAR

main85336-60300iNCP131201108

85345RNOZZLE, REAR WASHER

main85391-52150iNCP131201108

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP131..CND201108

COLD AREA SPEC

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP131201108

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP131201108

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNCP131201108

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85355-14481supersedes 90099-33080iNCP131..CND201108

COLD AREA SPEC

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33299iNCP131..CND201108

L=1000(*H,L=370),COLD AREA SPEC

85372DGROMMET, REAR WASHER HOSE

main85372-20020iNCP131201108

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iNCP131201108-201407

L=4985(*H,L=4750)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNCP131201108-201407

L=1000(*H,L=250)

85379BGROMMET, WASHER, A

main85379-52530iNCP131201108

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iNCP131201108

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9046907011

main90469-07011

17 parts on this diagram · 3 diagrams in section
