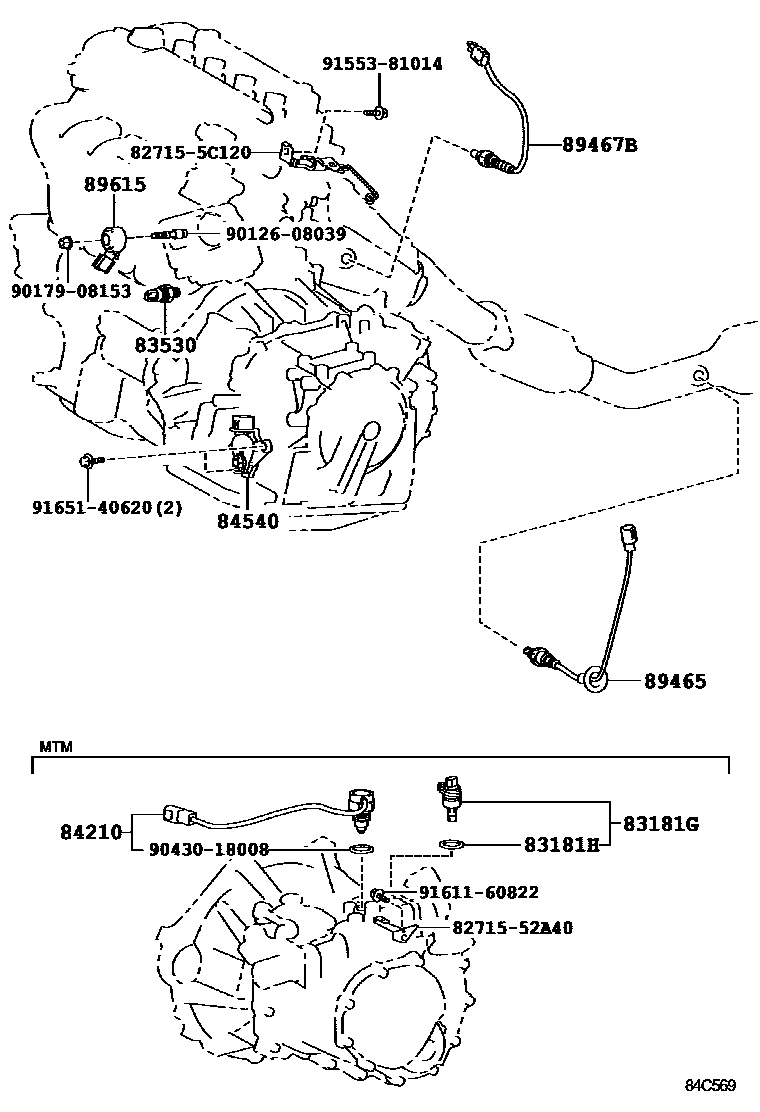

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & BACK DOOR

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP131..5F..USA201108-201407

MEXICO SPEC&ABS-WITHOUT

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iNCP131..5F..USA201108

MEXICO SPEC&ABS-WITHOUT

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP131201108

DENSO

main83530-60020iNCP131201108

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP131..5F201108-201407

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP131..4FC201108-201407

89465SENSOR, OXYGEN

main89465-52480iNCP131201108

89467BSENSOR, AIR FUEL RATIO

main89467-52170iNCP131201108

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP131201108

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

16 parts on this diagram · 7 diagrams in section
