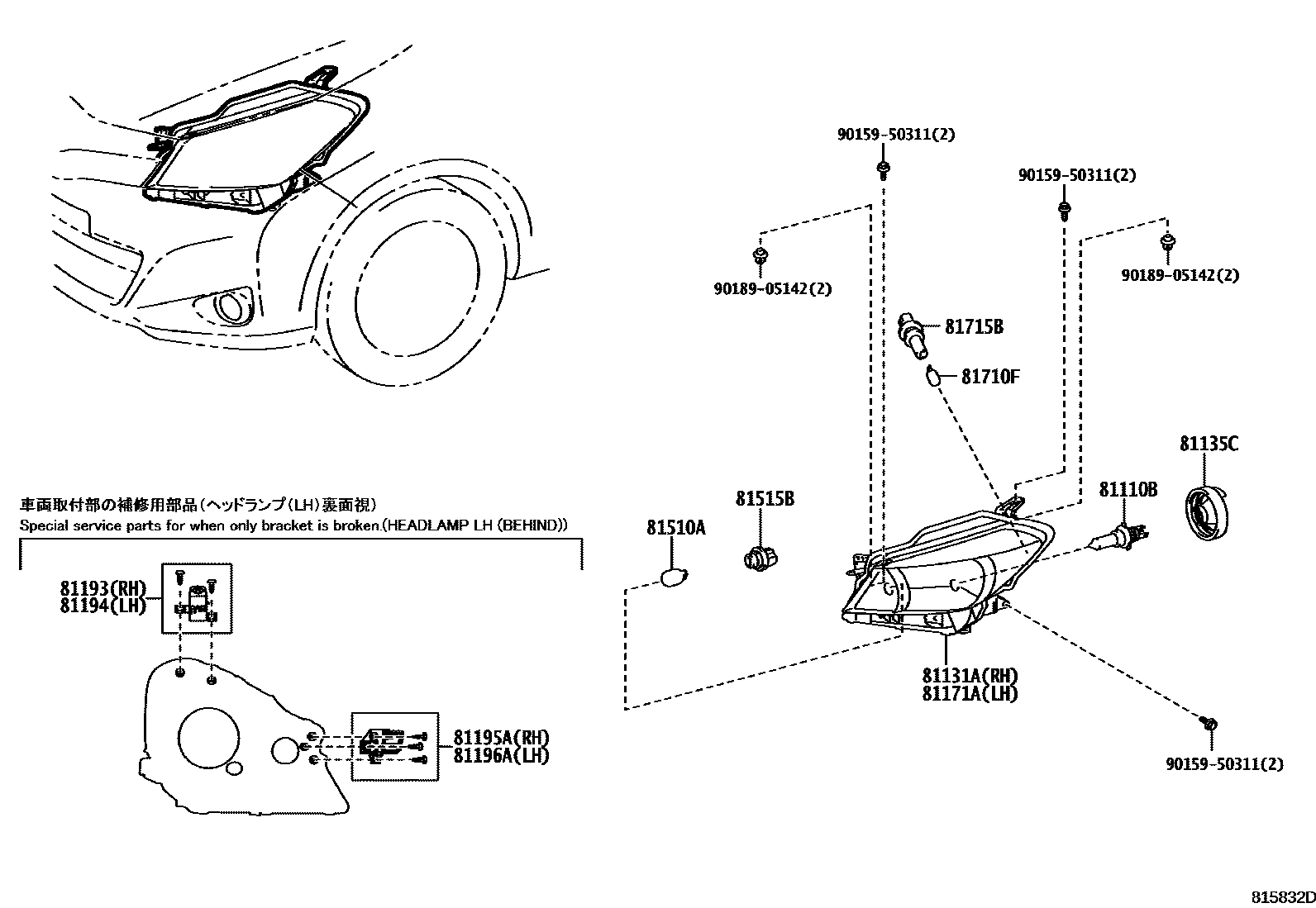

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP131201108-201407

12V 60/55W,HALOGEN

81131AUNIT, HEADLAMP, RH

main81130-52D30iNCP131..STD201108-201407

main81130-52E20iNCP131..RS201108-201407

HEADLAMP-2BEAM HALOGEN SPORT

81135CCOVER, HEADLAMP BACK, NO.1

main90075-65002×2iNCP131201108-201407

81171AUNIT, HEADLAMP, LH

main81170-52D30iNCP131..STD201108-201407

main81170-52E20iNCP131..RS201108-201407

HEADLAMP-2BEAM HALOGEN SPORT

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52200iNCP131201108-201407

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52200iNCP131201108-201407

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52160iNCP131201108-201407

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52160iNCP131201108-201407

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2iNCP131201108-201407

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60083×2iNCP131201108-201407

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×2iNCP131201108-201407

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60077×2iNCP131201108-201407

9015950311

main90159-50311

9018905142

main90189-05142

14 parts on this diagram · 1 diagram in section
