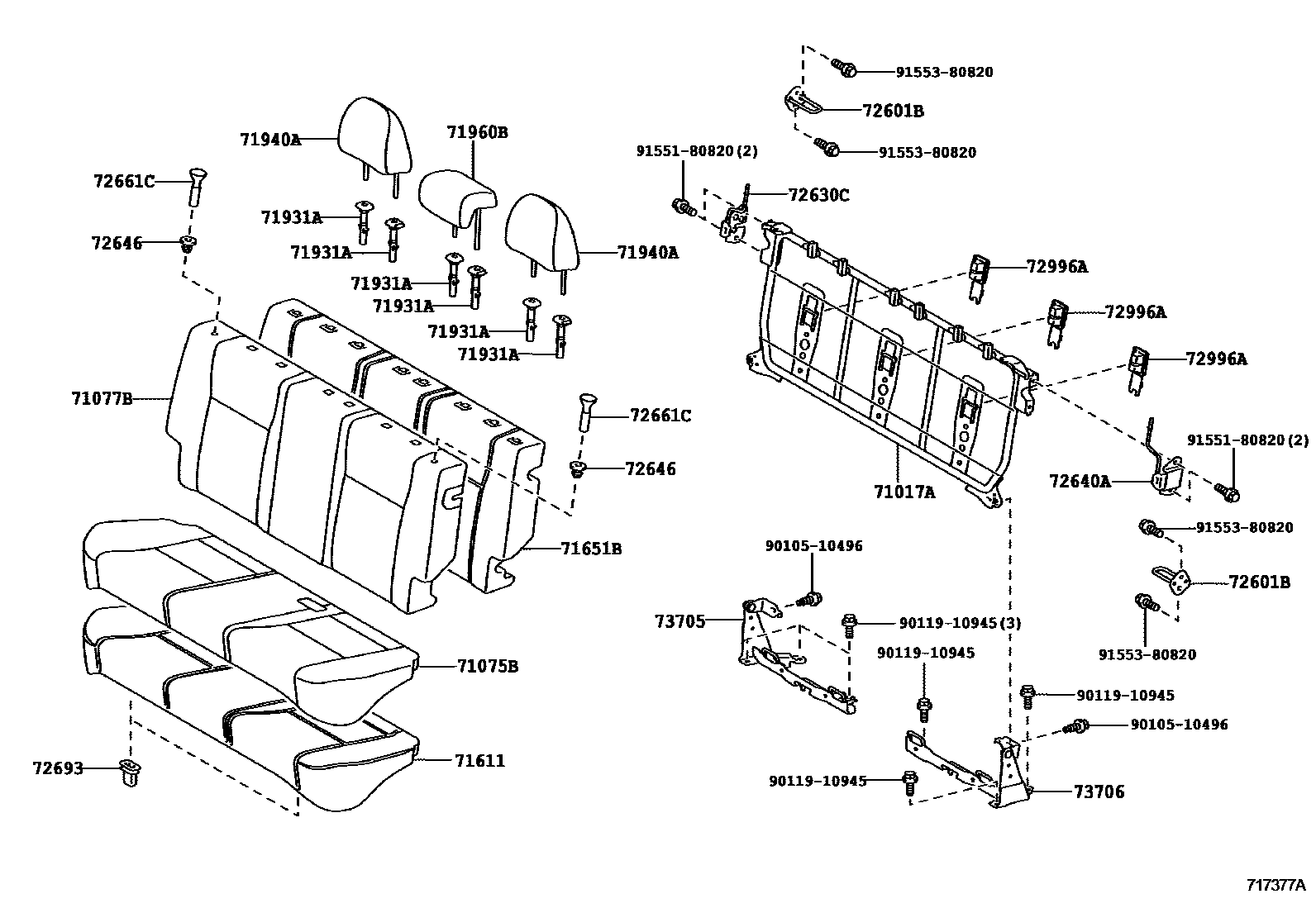

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1SEAT BACK = 6:4 SPLIT TYPE

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52620iNCP131..CND201108-201206

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71017-52621iNCP131..CND201308-201407

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-52640iNCP131..USA201108-201207

main71017-52641iNCP131..USA201308-201407

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-52G70-B1iNCP131..STD201108-201407

MD.GRAY,TRIM1#

main71075-52G90-C0iNCP131..USA201108-201407

BLACK,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-52J70-B2supersedes 71077-52J40-B2iNCP131..USA201108-201407

MEXICO SPEC,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-52450iNCP131201108-201407

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-52690iNCP131..USA201108

71931ASUPPORT, REAR SEAT HEADREST

main71970-52030-C0×3iNCP131..CND201108-201303

W/O(LOCK),BLACK,TRIM1#

main71990-52010-C0×3supersedes 71990-52010-C0iNCP131..CND201303-201308

W(LOCK),BLACK,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-52C70-B2×2iNCP131..RS201108-201303

DARK GRAY,TRIM1#

main71940-52C70-B3×2iNCP131..USA201308-201407

DARK GRAY,TRIM1#

main71940-52D00-B1×2supersedes 71940-52C70-B3iNCP131..USA201301-201308

MEXICO SPEC,GRAY,TRIM10

main71940-52D00-B3×2supersedes 71940-52C70-B2iNCP131..USA201308-201407

MEXICO SPEC,DARK GRAY,TRIM11

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52580-B1supersedes 71960-52580-B1iNCP131..STD..CND201303-201308

GRAY,TRIM1#

main71960-52580-B3supersedes 71960-52580-B3iNCP131..RS201108-201303

DARK GRAY,TRIM1#

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-52220×2iNCP131201108

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-52140iNCP131201108-201109

main72630-52141supersedes 72630-52141iNCP131..CND201109-201303

main72630-52170iNCP131201308-201407

PNC 72661C=TYPE B

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-52130iNCP131..CND201108-201109

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main72640-52131supersedes 72640-52141iNCP131..CND201303-201308

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main72640-52170iNCP131201308-201407

PNC 72661C=TYPE B

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-C0×2supersedes 72646-33010-C0iNCP131..CND201108-201303

BLACK,TRIM1#

main72646-52050-C0×2iNCP131201308-201407

BLACK,TRIM1#,PNC 72661C=TYPE B

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-C0×2supersedes 72661-32030-C0iNCP131..CND201108-201303

BLACK,TRIM1#

main72661-52050-C0×2iNCP131201308-201407

BLACK,TRIM1#,TYPE B:REFER ILLUST.

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNCP131201108

72996ACOVER, REAR SEATBACK

main72996-12320-C0×3supersedes 72996-12320-C0iNCP131..CND201303-201308

BLACK,TRIM1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-52180iNCP131201108

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-52020iNCP131201108

9010510496

main90105-10496

9011910945

main90119-10945

9155180820

main91551-80820

9155380820

main91553-80820

22 parts on this diagram · 3 diagrams in section
