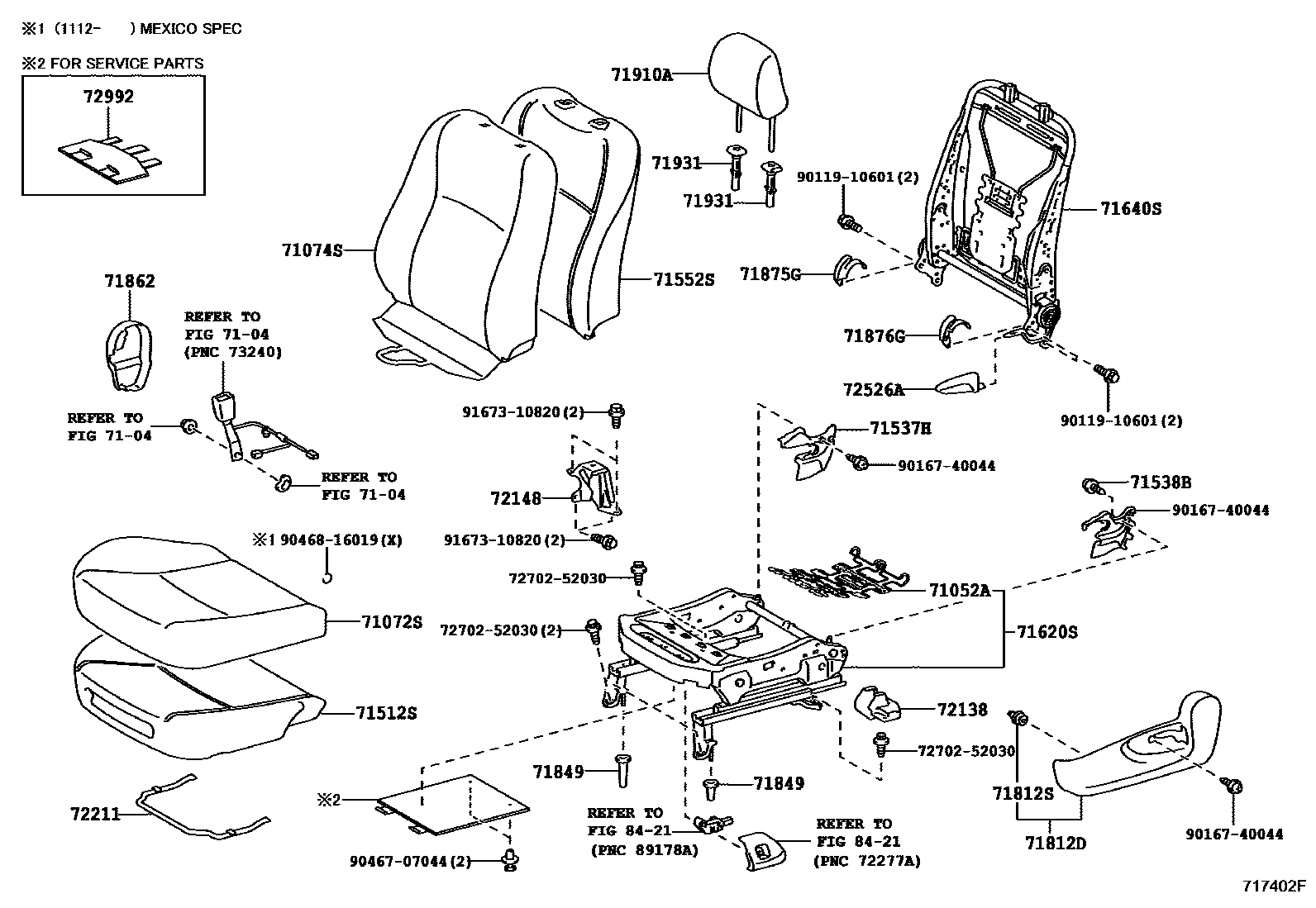

FRONT SEAT & SEAT TRACK

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47060i201108-201210

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-52N40-B1i201108-201205

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),GRAY,TRIM1#

main71072-52N42-B1i201205-201407

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),GRAY,TRIM1#

main71072-52N50-C0i201108-201205

BLACK,TRIM1#

main71072-52N52-C0i201205-201407

BLACK,TRIM1#

main71072-52J00-B2supersedes 71072-52N32-B1i201108-201112

MEXICO SPEC,GRAY,TRIM1#

sub71072-52J01

main71072-52J20-B2supersedes 71072-52N32-B1i201108-201112

MEXICO SPEC&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),GRAY,TRIM1#

sub71072-52J21

main71072-52J30-C0supersedes 71072-52N32-B1i201108-201112

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

sub71072-52J31

main71072-52Q90-B0supersedes 71072-52N32-B1i201112-201204

MEXICO SPEC,GRAY,TRIM1#

main71072-52Q91-B0supersedes 71072-52N32-B1i201205-201407

MEXICO SPEC,GRAY,TRIM1#

main71072-52R60-B0supersedes 71072-52N32-B1i201112-201204

MEXICO SPEC&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),GRAY,TRIM1#

main71072-52R61-B0supersedes 71072-52N32-B1i201205-201407

MEXICO SPEC&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),GRAY,TRIM1#

main71072-52R70-C0supersedes 71072-52N32-B1i201112-201204

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

main71072-52R71-C0supersedes 71072-52N32-B1i201205-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-52G20-B2i201108-201407

GRAY,TRIM1#

main71074-52L20-C1i201108-201407

BLACK,TRIM1#

main71074-52F40-B1i201108-201407

MEXICO SPEC,GRAY,TRIM1#

main71074-52L10-C0i201108-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-52560supersedes 71512-52570i201108-201407

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71512-52410supersedes 71512-52570i201108-201407

MEXICO SPEC

main71512-52420supersedes 71512-52570i201108-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-52100-C0supersedes 71537-52110-C0i201108-201407

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-52050-C0supersedes 71538-52060-C0i201108-201407

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-52760i201108-201407

main71552-52800i201108-201407

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71551-52800i201108-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71552-52670i201108-201407

MEXICO SPEC

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-52220i201108-201210

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71620-52221i201210-201301

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

sub73214-75010

main71620-52222i201301-201407

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71620-52090supersedes 71620-52082i201108-201210

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71620-52091supersedes 71620-52082i201210-201301

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

sub73214-75010

main71620-52092supersedes 71620-52082i201301-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

main71620-52230supersedes 71620-52082i201108-201210

MEXICO SPEC

main71620-52231supersedes 71620-52082i201210-201301

MEXICO SPEC

sub73214-75010

main71620-52232supersedes 71620-52082i201301-201407

MEXICO SPEC

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-52350supersedes 71640-52350i201108-201407

main71640-52270supersedes 71640-52350i201108-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING)

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-52320-C0supersedes 71812-52330-C0i201108-201407

BLACK,TRIM1#

main71812-52260-C0supersedes 71812-52330-C0i201108-201407

MEXICO SPEC,BLACK,TRIM1#

main71812-52270-C0supersedes 71812-52330-C0i201108-201407

MEXICO SPEC&S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71812SCLIP, FRONT SEAT CUSHION SHIELD, LH

main71769-47020i201108-201407

71849CAP, SEAT ADJUSTER COVER, LH

main71848-52040i201108-201407

OUTER

main71848-52050i201108-201407

INNER

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-52210-C0supersedes 71862-52200-C0i201108-201407

S PACKAGE&REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60260-C0i201108-201407

BLACK,TRIM1#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-60270-C0i201108-201407

BLACK,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52F00-B0×2supersedes 71910-52F00-B2i201108-201212

DARK GRAY,TRIM11

main71910-52F00-B1×2supersedes 71910-52F00-B3i201108-201212

DARK GRAY,TRIM10

main71910-52F00-B2×2i201212-201407

DARK GRAY,TRIM11

main71910-52F00-B3×2i201212-201407

DARK GRAY,TRIM10

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2i201108-201407

W(LOCK),BLACK,TRIM1#

main71931-47020-C0×2i201108-201407

W/O(LOCK),BLACK,TRIM1#

72138COVER, SEAT TRACK, OUTER LH

main72138-52070-C0i201108-201407

BLACK,TRIM1#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-52100i201108

sub72148-52101

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52160i201108-201407

MEXICO SPEC,RH

main72211-52170i201108-201407

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-47010-C0i201108-201407

BLACK,TRIM1#

72992COVER, FRONT SEAT CUSHION, LH

main72991-52120i201108-201407

8421

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9011910601

main90119-10601

9016740044

main90167-40044

9046707044

main90467-07044

9046816019

main90468-16019

9167310820

main91673-10820

30 parts on this diagram · 8 diagrams in section
