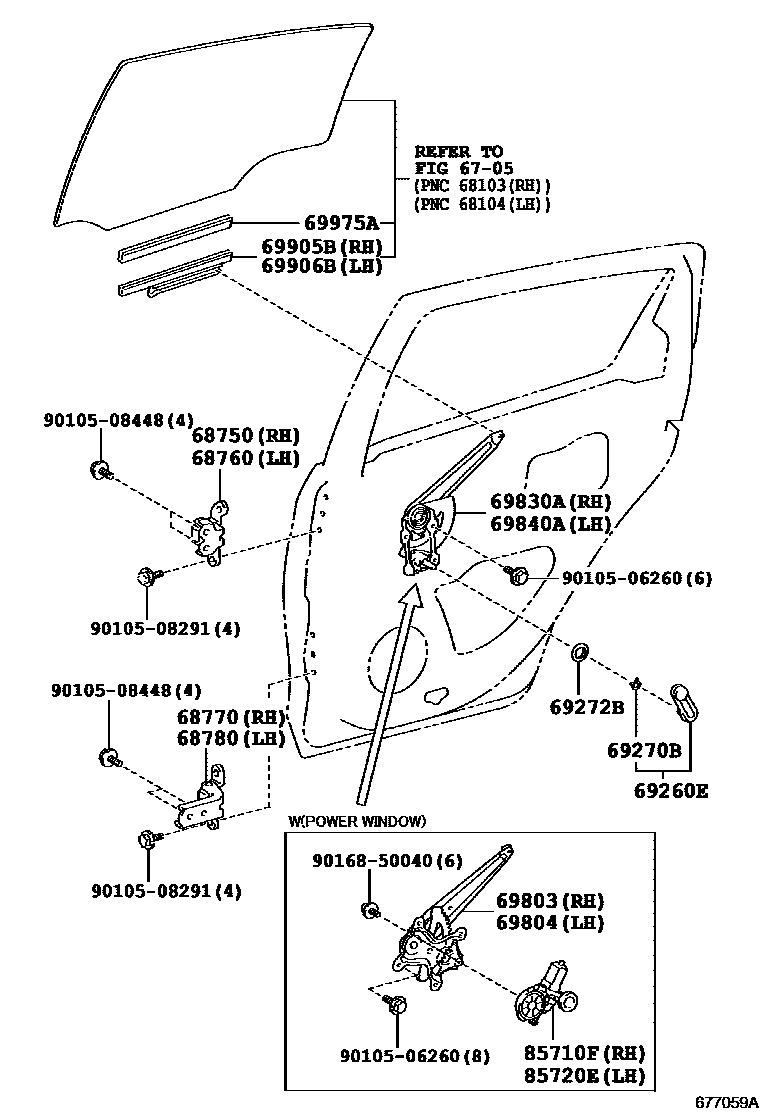

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iNCP131..5D201108-201206

main68750-20122iNCP131..5D201207-201407

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iNCP131..5D201108-201206

main68760-20122iNCP131..5D201207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNCP131..5D201108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNCP131..5D201108

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52090iNCP131..5D..STD201108

POWER WINDOW-WITH(FRONT & REAR)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52100iNCP131..5D..STD201108

POWER WINDOW-WITH(FRONT & REAR)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52260iNCP131..5D..STD201108

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52260iNCP131..5D..STD201108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iNCP131..5D201108-201407

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iNCP131..5D201108-201407

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP131..5D201108-201407

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52150iNCP131..5D..STD201108

POWER WINDOW-WITH(FRONT & REAR)

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52160iNCP131..5D..STD201108

POWER WINDOW-WITH(FRONT & REAR)

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

21 parts on this diagram · 1 diagram in section
