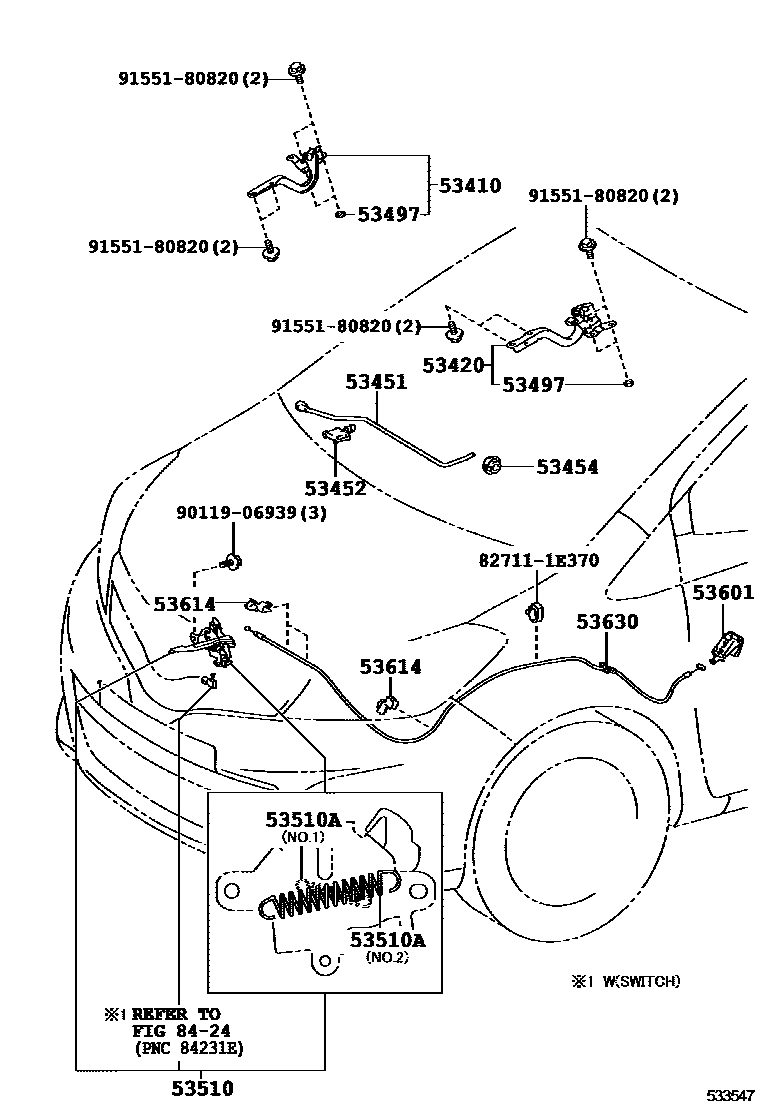

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52320iNCP131201108

53420HINGE ASSY, HOOD, LH

main53420-52330iNCP131201108

53451ROD, HOOD SUPPORT

main53440-52220iNCP131201108

53452HOLDER, HOOD STAY

main53452-52010iNCP131201108

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNCP131201108

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP131201108

T=1.5

main53497-42010×4iNCP131201108

T=0.5

53510LOCK ASSY, HOOD

main53510-52551iNCP131201201-201407

main53510-52581iNCP131201108-201201

main53510-52571iNCP131..USA201201-201407

PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

main53510-52591iNCP131..USA201108-201201

PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10047iNCP131201108

WD=1.0,CW=24,NO.1

main90506-16077iNCP131201108

WD=1.6,CW=12,NO.2

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iNCP131201108-201407

BLACK,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010×4iNCP131201108

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52150iNCP131201108

8424

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
