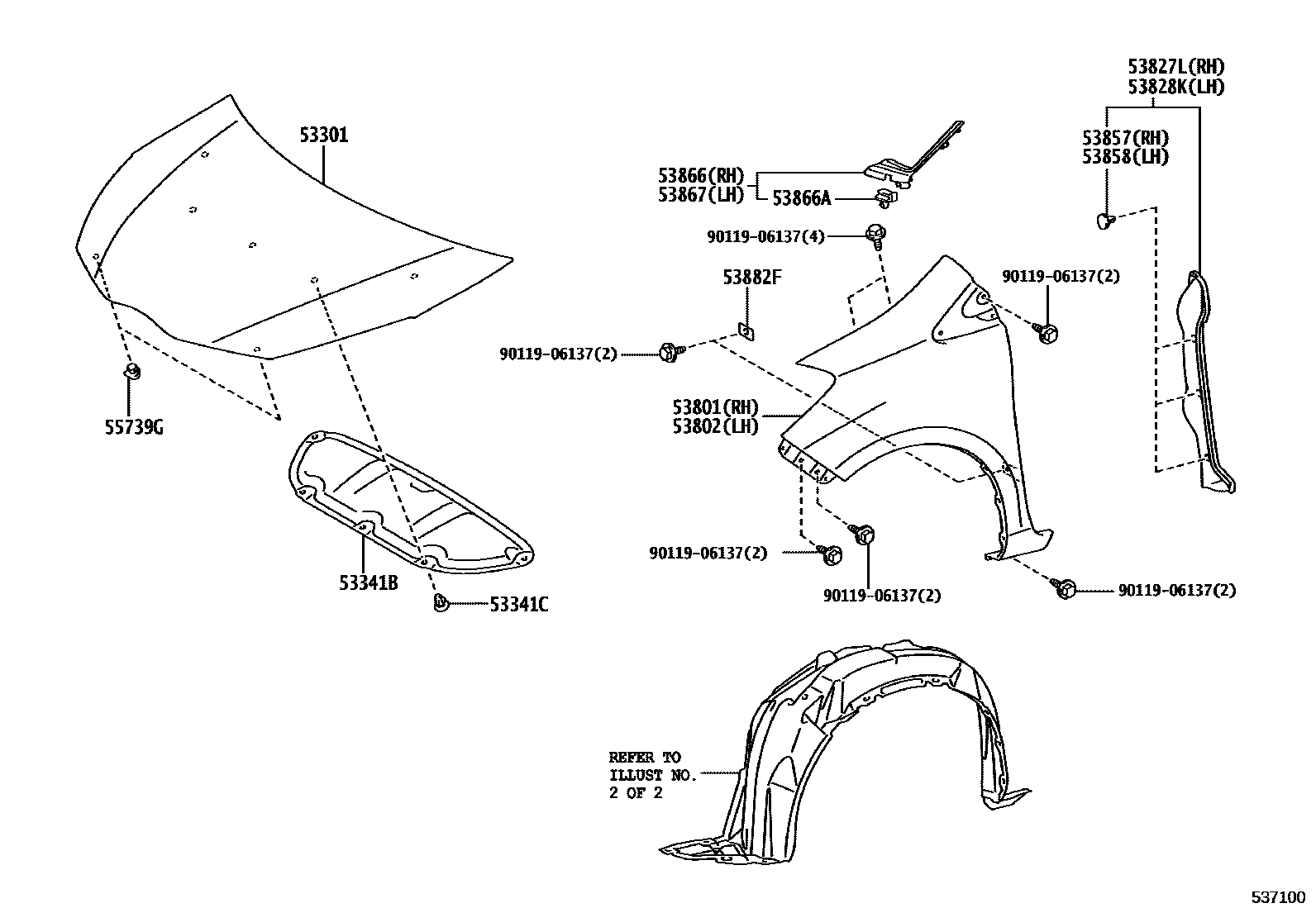

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52310iNCP131..CND201108-201407

main53301-52320iNCP131..USA201108-201407

53341BINSULATOR, HOOD

main53341-52180iNCP131201108

MEXICO SPEC

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iNCP131201108

MEXICO SPEC

53801FENDER SUB-ASSY, FRONT RH

main53811-52390iNCP131..STD..CND201108-201407

main53811-52400iNCP131..RS201108-201407

sub53811-52580

main53801-52110supersedes 53801-52120iNCP131..USA201108-201407

SIDE MUD GUARD-WITH

sub53801-52210

53802FENDER SUB-ASSY, FRONT LH

main53812-52360iNCP131..STD..CND201108-201407

main53812-52370iNCP131..RS201108-201407

sub53812-52580

main53802-52110supersedes 53802-52120iNCP131..USA201108-201407

SIDE MUD GUARD-WITH

sub53802-52210

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52150iNCP131201108

MEXICO SPEC

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52160iNCP131201108

MEXICO SPEC

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×3iNCP131201108

MEXICO SPEC

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×3iNCP131201108

MEXICO SPEC

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52090iNCP131201108

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-52020×2iNCP131201108

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52090iNCP131201108

53882FSEAL, FRONT FENDER

main53882-16030×2iNCP131201108

55739GSTOPPER, HOOD

main55738-52060×2iNCP131201108

9011906137

main90119-06137

15 parts on this diagram · 4 diagrams in section
