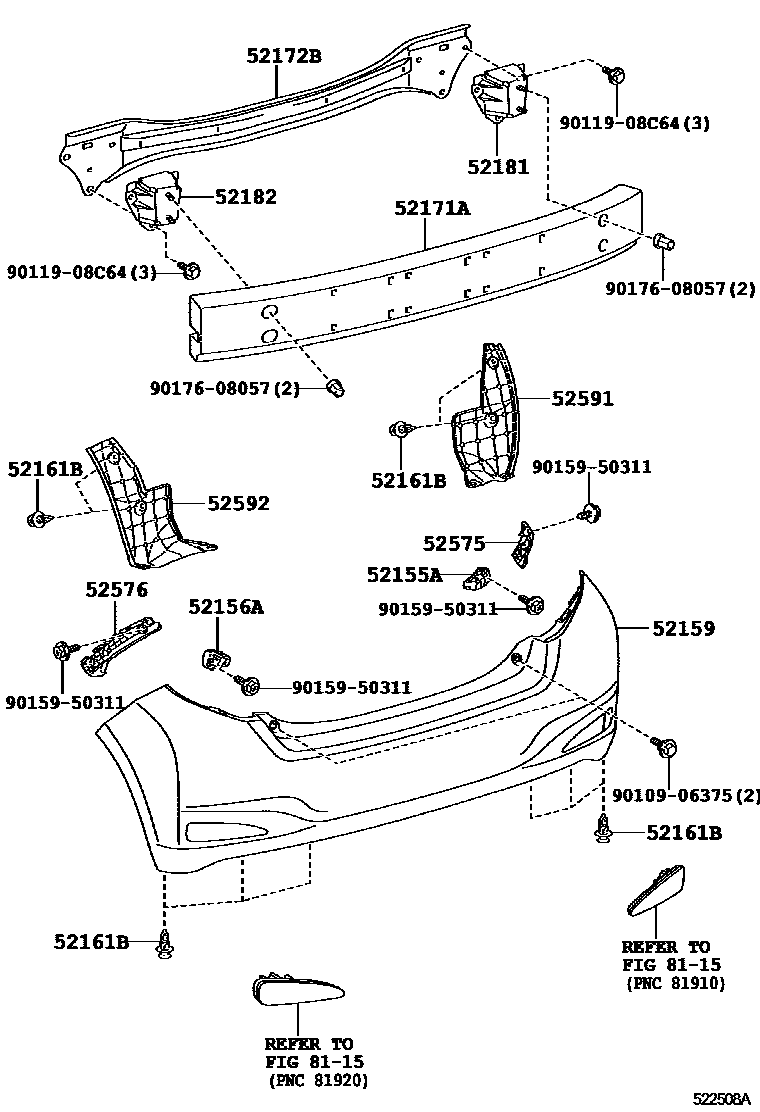

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1HEADLAMP - 2BEAM HALOGEN SPOR

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52120iNCP131201108

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52120iNCP131201108

52159COVER, REAR BUMPER

main52159-52966iNCP131..STD201108-201407

PAINT REQ.

main52159-52967iNCP131..RS201108-201407

PAINT REQ.

main52159-52967iNCP131..RS201108-201407

PAINT REQ.,HEADLAMP-2BEAM HALOGEN SPORT

52161BPIECE, REAR BUMPER

main52161-16010iNCP131..STD201108

HEADLAMP-2BEAM HALOGEN SPORT

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-52030iNCP131..USA201108-201407

main52171-52090iNCP131..CND201108-201407

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-52020iNCP131201108

52181ARM, REAR BUMPER, RH

main52181-52160iNCP131201108

52182ARM, REAR BUMPER, LH

main52182-52160iNCP131201108

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52170iNCP131201108-201111

main52575-52171iNCP131201112

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52150iNCP131201108-201111

main52576-52151iNCP131201112

52591SEAL, REAR BUMPER SIDE, RH

main52591-52300iNCP131..STD201108

main52591-52320iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

52592SEAL, REAR BUMPER SIDE, LH

main52592-52290iNCP131..STD201108

main52592-52310iNCP131..RS201108

HEADLAMP-2BEAM HALOGEN SPORT

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906375

main90109-06375

9011908C64

main90119-08C64

9015950311

main90159-50311

9017608057

main90176-08057

17 parts on this diagram · 3 diagrams in section
