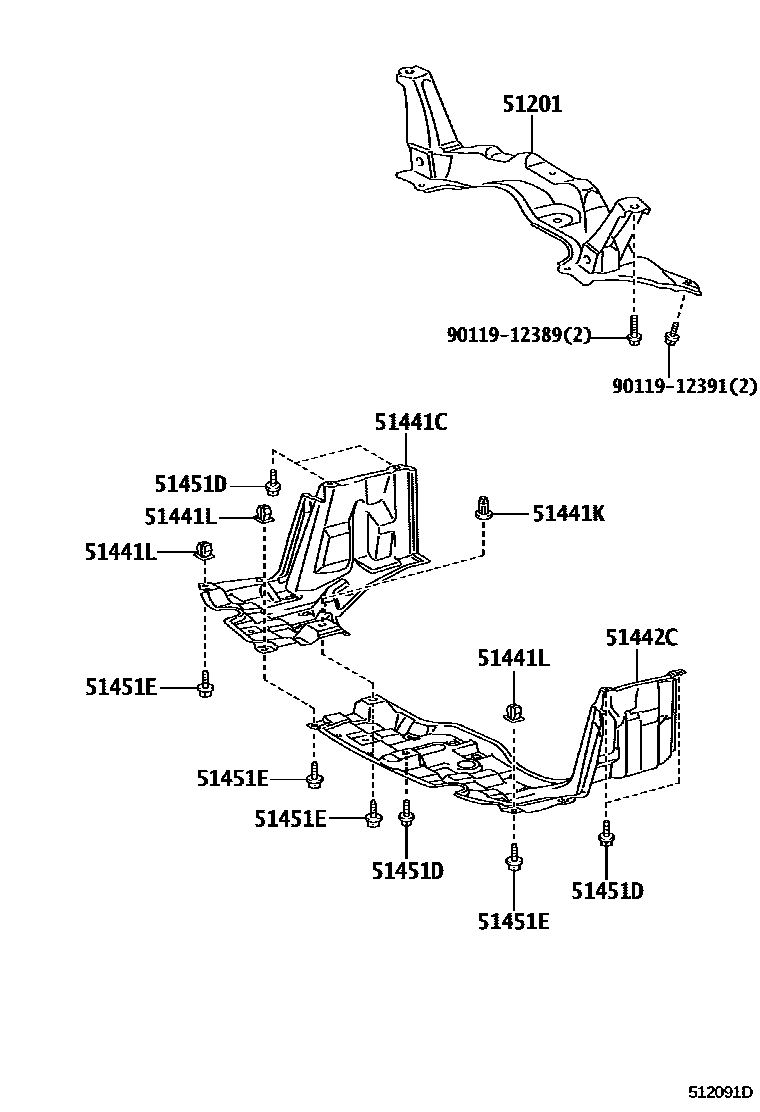

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52083iNCP131201108-201112

main51201-52084iNCP131201201-201204

main51201-52085iNCP131201205-201206

main51201-52086iNCP131201206-201210

main51201-52087iNCP131201211-201407

51441CCOVER, ENGINE UNDER, RH

main51441-52180iNCP131201108-201404

main51441-52330iNCP131201404-201407

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076iNCP131201108-201407

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06237×3iNCP131201108-201407

51442CCOVER, ENGINE UNDER, LH

main51442-52090iNCP131201108-201404

main51442-52160iNCP131201404-201407

51451DSCREW, NO.1

main90119-06767×5iNCP131201108-201407

51451ESCREW, NO.2

main90159-60383×4iNCP131201108-201407

9011912389

main90119-12389

9011912391

main90119-12391

9 parts on this diagram · 1 diagram in section
