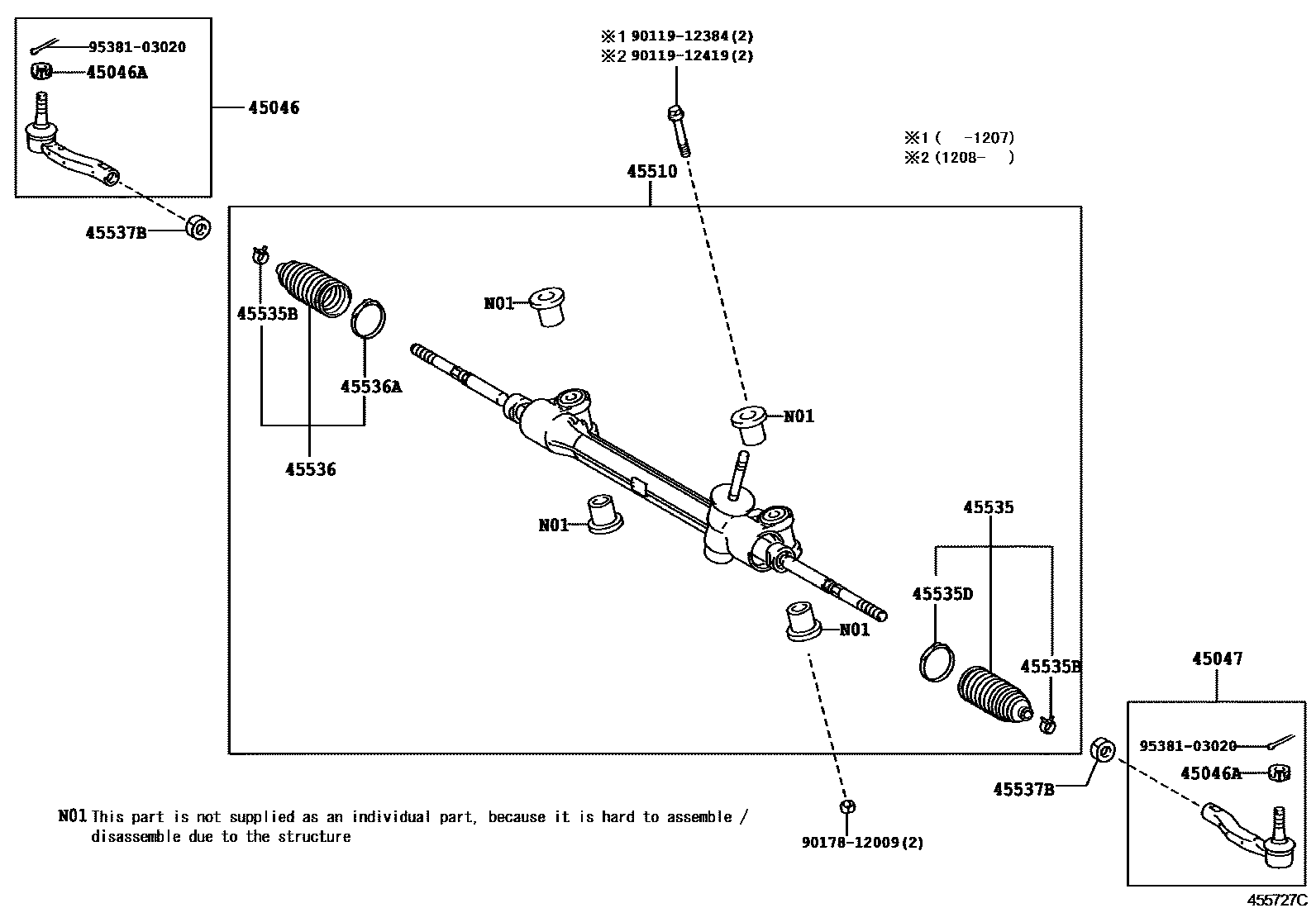

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59115iNCP131..USA201108

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45046-59195iNCP131..STD201108-201208

main45046-59255iNCP131..STD201208

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP131201108

45047END SUB-ASSY, TIE ROD, LH

main45046-59115iNCP131..USA201108

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45047-59135iNCP131..STD201108-201208

main45047-59165iNCP131..STD201208

45510GEAR ASSY, STEERING

main45510-52350iNCP131..STD201108-201212

main45510-52351iNCP131..STD201301

main45510-52370iNCP131..USA201108

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45510-52390iNCP131..USA201301

MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

45535BOOT, STEERING RACK, NO.1

main45535-59035iNCP131201108

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNCP131201108

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNCP131201108

45536BOOT, STEERING RACK, NO.2

main45535-59035iNCP131201108

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNCP131201108

45537BNUT, RACK END LOCK

main90178-15003×2iNCP131..USA201108

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main90179-14019×2iNCP131..STD201108

9011912384

main90119-12384

9011912419

main90119-12419

9017812009

main90178-12009

9538103020

main95381-03020

14 parts on this diagram · 1 diagram in section
