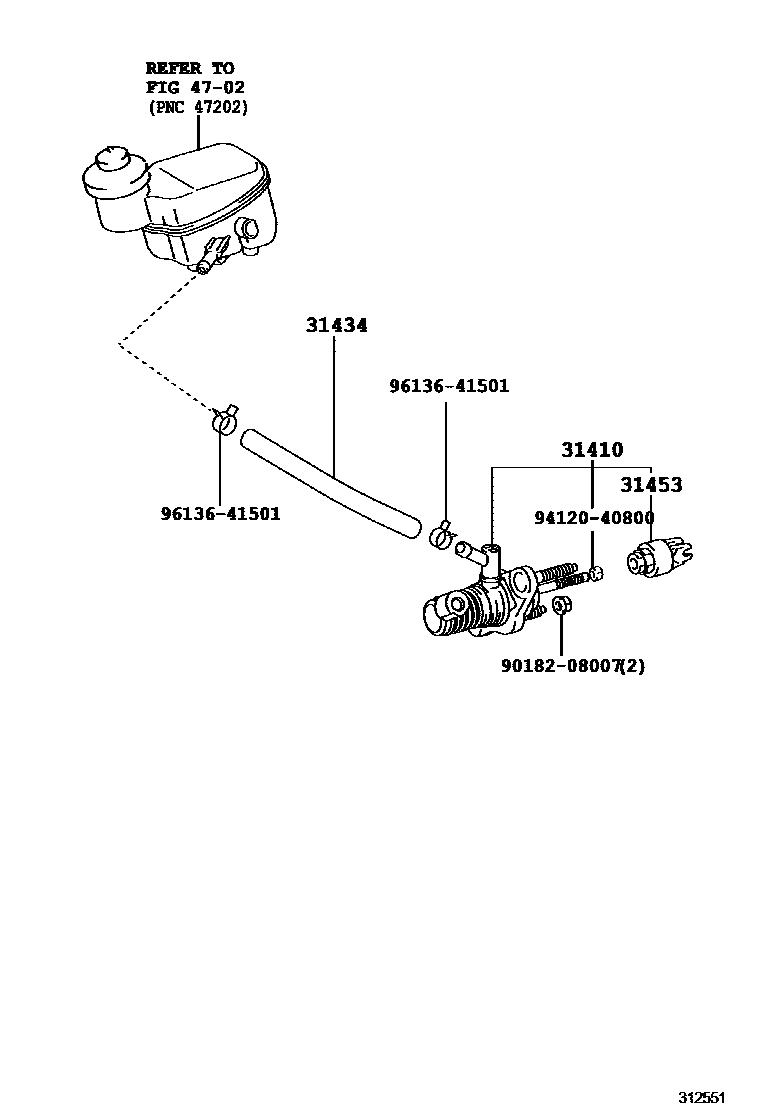

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52080iNCP131..5F201108-201407

sub31420-52081

31434TUBE, CLUTCH RESERVOIR

main31434-52230iNCP131..5F201108

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-52020iNCP131..5F201108

sub31453-52021

4702

9018208007

main90182-08007

9412040800

main94120-40800

9613641501

main96136-41501

7 parts on this diagram · 1 diagram in section
