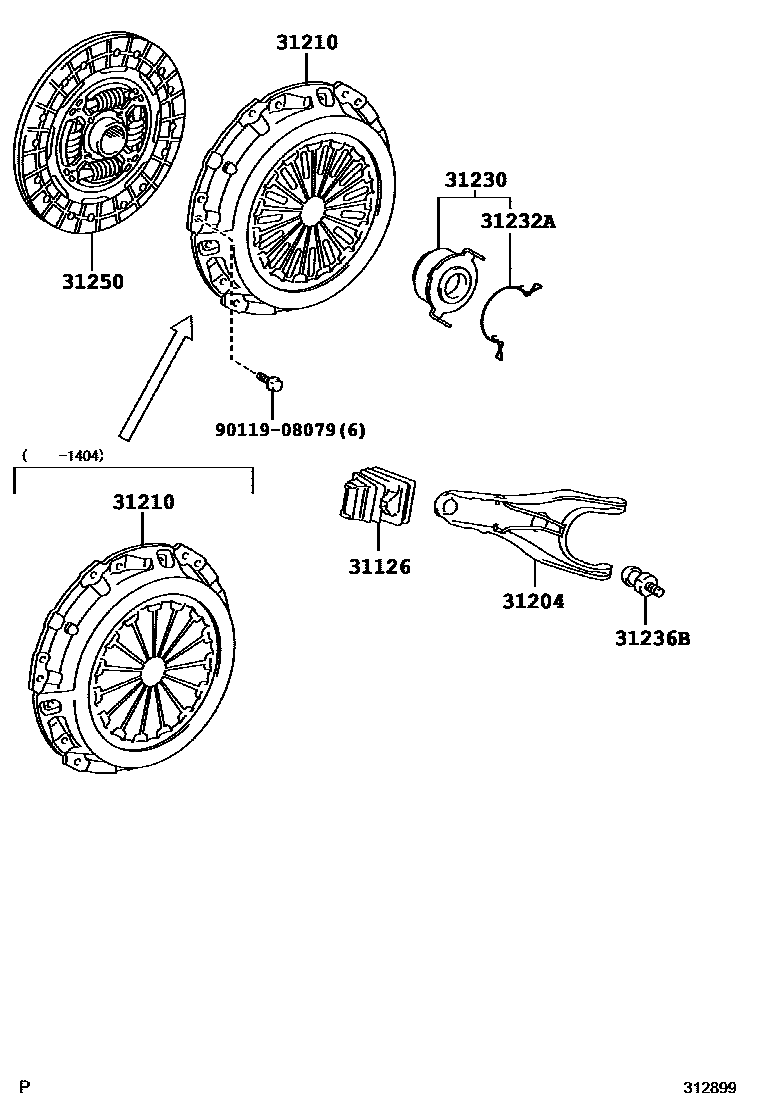

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP131..5F201108-201407

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP131..5F201108-201407

31210COVER ASSY, CLUTCH

main31210-52052iNCP131..5F201108-201203

sub31210-52053

main31210-52053iNCP131..5F201204-201404

main31210-52180iNCP131..5F201404-201407

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181iNCP131..5F201108-201407

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP131..5F201108-201407

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP131..5F201108-201407

31250DISC ASSY, CLUTCH

main31250-52050iNCP131..5F201108-201407

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
