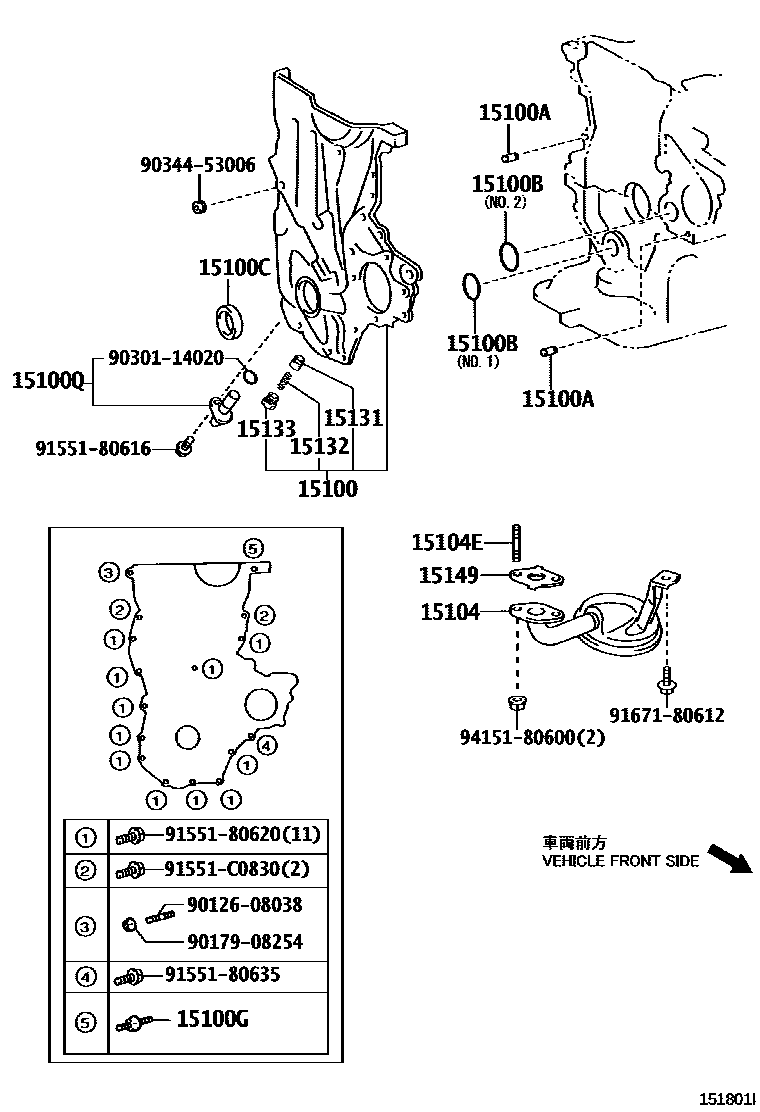

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NCP131201108-201111

main15100-21042i1NZFE..NCP131201111-201204

main15100-21043i1NZFE..NCP131201204

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE..NCP131201108

15100BRING, O(FOR OIL PUMP)

main11497-21010i1NZFE..NCP131201111

NO.2

main12151-21010i1NZFE..NCP131201111

NO.1

main90301-31012i1NZFE..NCP131201108-201111

NO.1

main90301-42006i1NZFE..NCP131201108-201111

NO.2

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NCP131201108-201204

main90311-25032i1NZFE..NCP131201204-201311

main90311-25033i1NZFE..NCP131201311-201407

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NCP131201108-201407

15100QSENSOR, CRANK POSITION

main90919-05081i1NZFE..NCP131201108-201305

main90919-05087i1NZFE..NCP131201305

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZFE..NCP131201108

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE..NCP131201108

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP131201108

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NCP131201108

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NCP131201108

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NCP131201108

9012608038

main90126-08038

9017908254

main90179-08254

9030114020

main90301-14020

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
