SHORT BLOCK ASSEMBLY

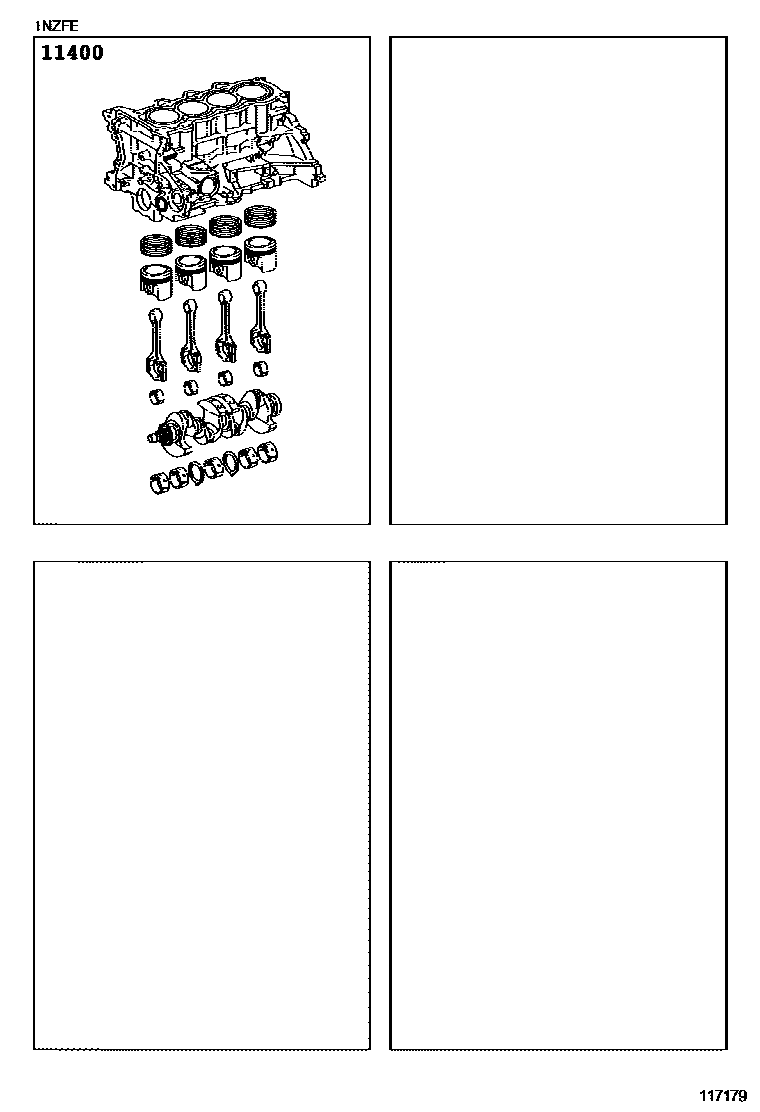

Parts diagram
11400BLOCK ASSY, SHORT
main11400-21220i201108-201204
main11400-21411i201204

1 parts on this diagram · 1 diagram in section
