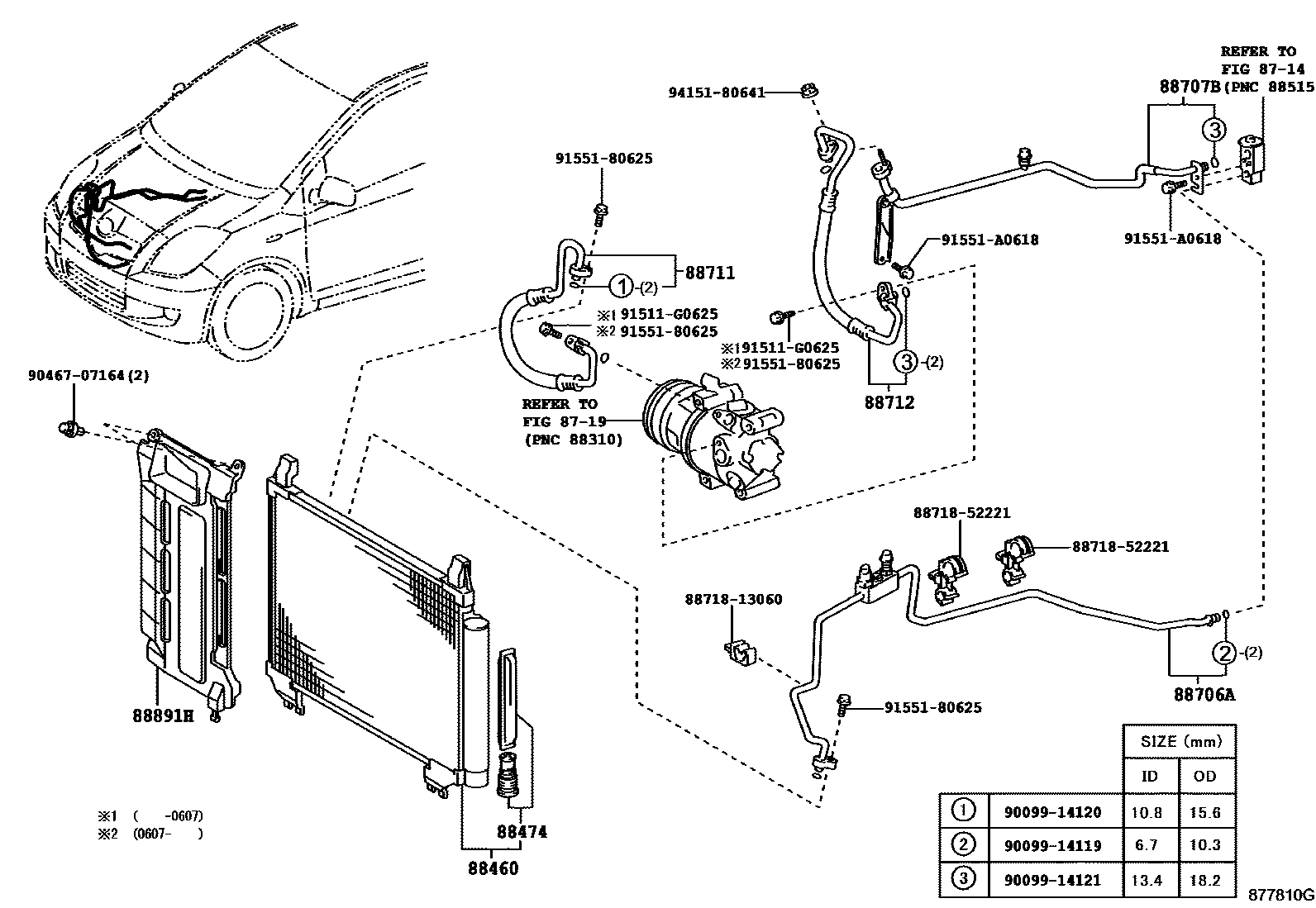

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-52110i200508-200708

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88460-52130i200708-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

88474DRYER, COOLER

main88474-12030i200808-201108

AIR CONDITIONER-DEALER KIT

main88474-17010i200808-201002

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52440i200508-200708

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88706-52450i200508-200708

AIR CONDITIONER-DEALER KIT

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52110i200808-201002

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52270i201002-201108

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-52310i200508-200708

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

88891HCOVER, COOLER, NO.1

main88891-52050i200508-200701

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); COLD SPEC; COLD SPEC&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88891-52051i200702-200708

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); COLD SPEC; COLD SPEC&AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

8871813060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13060

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9046707164

main90467-07164

91511G0625

main91511-G0625

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180641

main94151-80641

19 parts on this diagram · 3 diagrams in section
