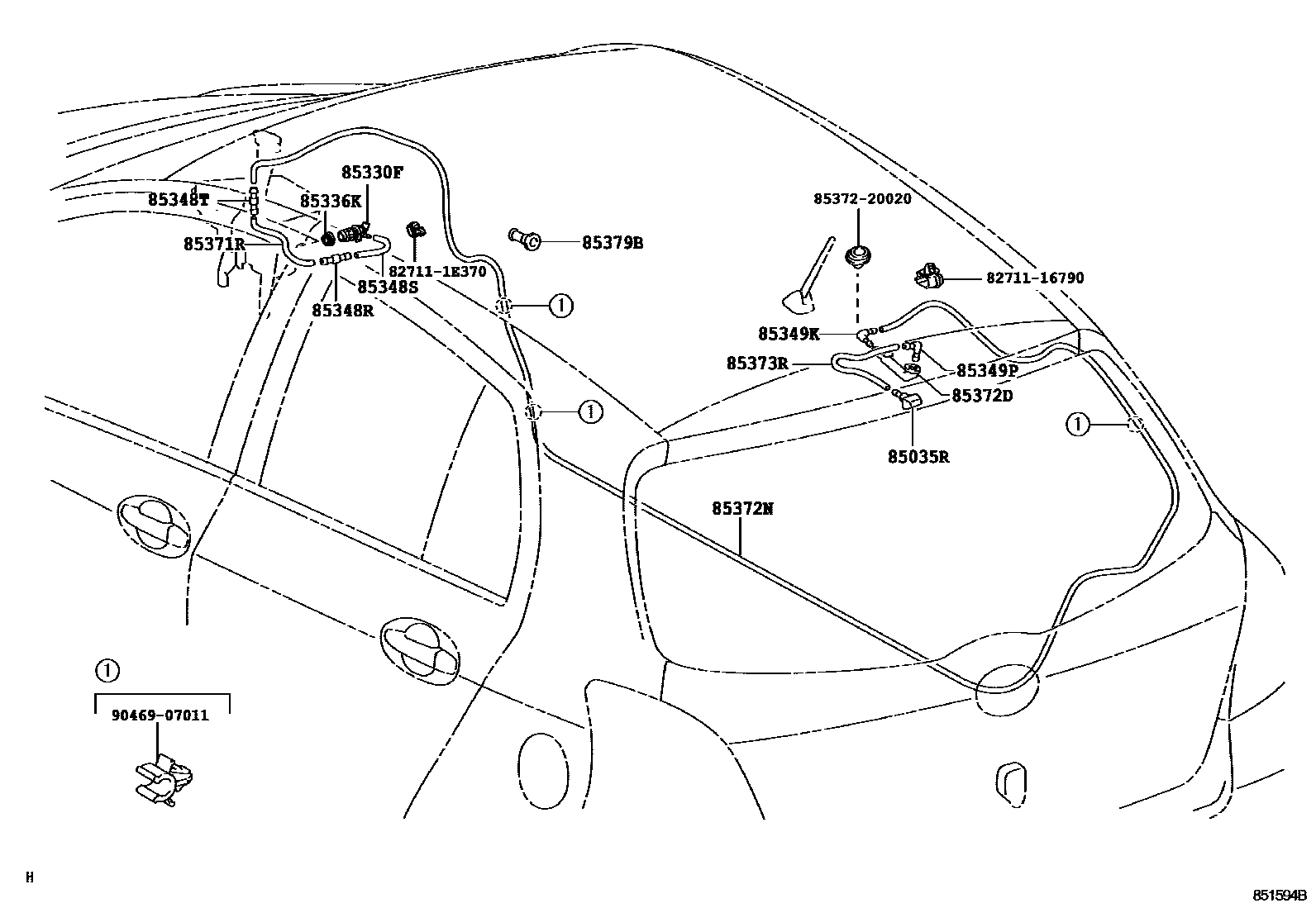

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
sub85391-0K020
85330FMOTOR & PUMP ASSY, RR WASHER
85336KPROTECTOR, WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
REAR WINDOW WIPER-WITHOUT
85349KJOINT, REAR WASHER ELBOW, NO.2
REAR WINDOW WIPER-WITHOUT
85349PJOINT, REAR WASHER ELBOW, NO.3
REAR WINDOW WIPER-WITHOUT
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=200)
L=1450(*H,L=270)
L=1450(*H,L=270),COLD SPEC
L=1450(*H,L=200),MEXICO SPEC
85372DGROMMET, REAR WASHER HOSE
REAR WINDOW WIPER-WITHOUT
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=4985(*H,L=4345)
L=4985(*H,L=4345),REAR WINDOW WIPER-WITHOUT
L=4985(*H,L=4300)
L=4985(*H,L=4300),REAR WINDOW WIPER-WITHOUT
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=220)
L=1000(*H,L=220),REAR WINDOW WIPER-WITHOUT
85379BGROMMET, WASHER, A
REAR WINDOW WIPER-WITHOUT
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-20020
9046907011
main90469-07011
17 parts on this diagram · 1 diagram in section
