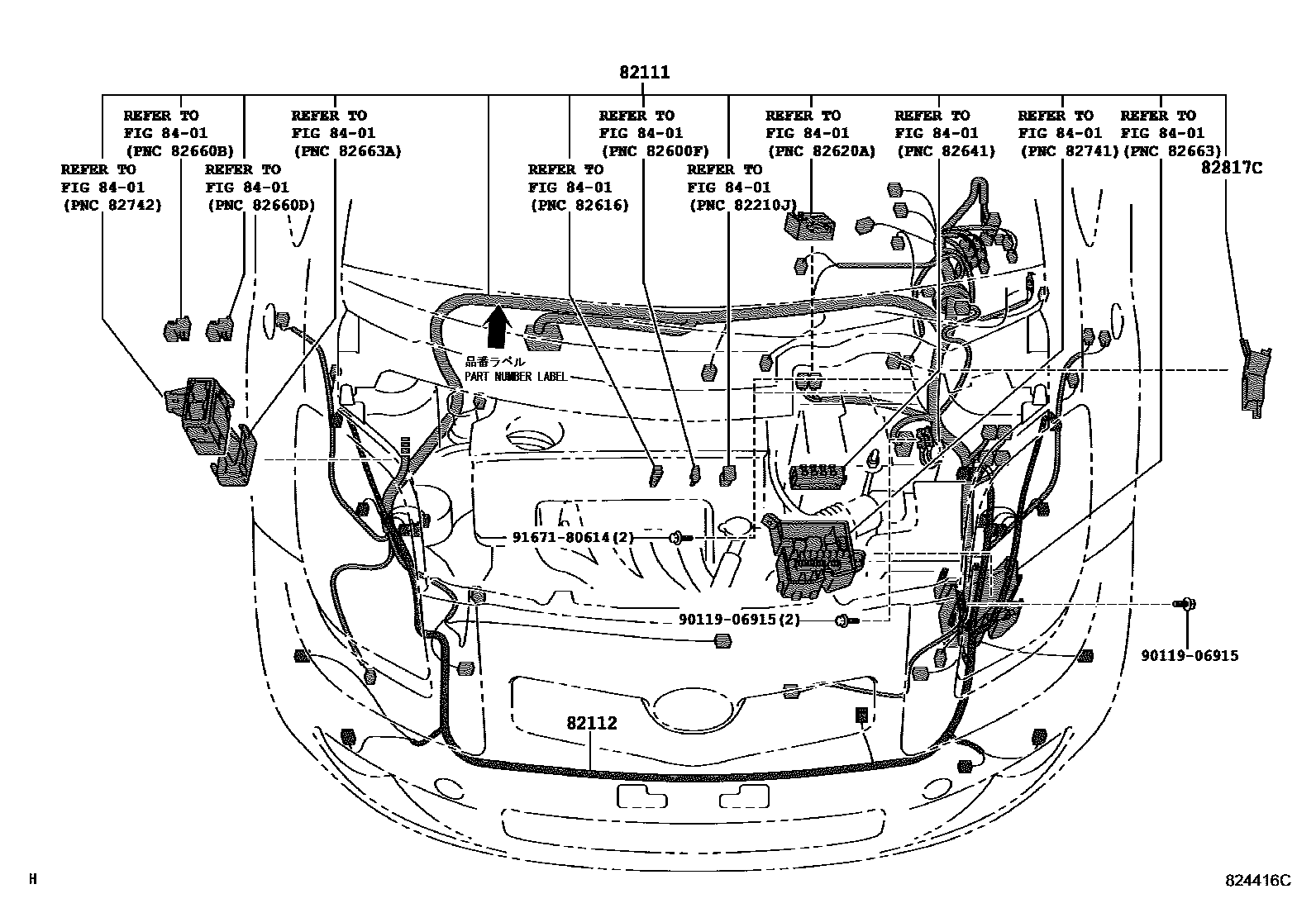

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
PUERTO RICO SPEC&ABS-WITH(W/O BRAKE ASSIST)
PUERTO RICO SPEC&ABS-WITH(W/O BRAKE ASSIST)
COLD SPEC&ABS-WITH(W/O BRAKE ASSIST)
COLD SPEC&ABS-WITH(W/O BRAKE ASSIST)
PUERTO RICO SPEC
PUERTO RICO SPEC
ABS-WITHOUT; COLD SPEC
ABS-WITHOUT; COLD SPEC
ABS-WITH(W/O BRAKE ASSIST); MEXICO SPEC&WIRELESS DOOR LOCK-WITH
ABS-WITH(W/O BRAKE ASSIST); MEXICO SPEC&WIRELESS DOOR LOCK-WITH
MEXICO SPEC&ABS-WITHOUT&WIRELESS DOOR LOCK-WITH
MEXICO SPEC&ABS-WITHOUT&WIRELESS DOOR LOCK-WITH
COLD SPEC&ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT; COLD SPEC
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST); MEXICO SPEC&WIRELESS DOOR LOCK-WITH
MEXICO SPEC&ABS (ANTI-LOCK BRK SYSTM)-WITHOUT&WIRELESS DOOR LOCK-WITH
PUERTO RICO SPEC&ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
PUERTO RICO SPEC
main82111-52T00supersedes 82111-52T10iNCP91..3D..5F..RS; NCP91..5D..STD..CND; NCP91..USA200808-200908
MEXICO SPEC; MEXICO SPEC&FRONT FOG & DRIVING LAMP-WITH
MEXICO SPEC; MEXICO SPEC&FRONT FOG & DRIVING LAMP-WITH
MEXICO SPEC; MEXICO SPEC&FRONT FOG & DRIVING LAMP-WITH
MEXICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT; MEXICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT&FRONT FOG & DRIVING LAMP-WITH
COLD SPEC
ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
PUERTO RICO SPEC
PUERTO RICO SPEC&ABS(ANTI-LOCK BRK SYSTM)-WITHOUT
ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH
ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH
COLD SPEC
COLD SPEC
82112WIRE, ENGINE ROOM, NO.2
FRONT FOG LAMP-WITH
FRONT FOG & DRIVING LAMP-WITH
82817CPROTECTOR, WIRING HARNESS, NO.4
PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)
8401SWITCH & RELAY & COMPUTER
9011906915
main90119-06915
9167180614
main91671-80614
6 parts on this diagram · 7 diagrams in section
