INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iNCP91..STD..CND; NCP91..USA200708-200808

GRAY,TRIM1#; GRAY,TRIM18

main81240-52040-C0iNCP91..RS200508-200708

BLACK,TRIM18

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP91200808-201107

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNCP91201010-201107

main81330-05021iNCP91200808-201009

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNCP91200508-200708

12V 5W

main90981-WE003iNCP91201010-201107

12V 5W

81260ALAMP ASSY, MAP

main81260-52030-B0iNCP91..STD..CND; NCP91..USA200708-200808

GRAY,TRIM1#; GRAY,TRIM18

main81260-52030-C0iNCP91..RS; NCP91..USA200708-200808

BLACK,TRIM1#; BLACK,TRIM18

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP91200708-200808

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP91200508-200708

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP91200808-201107

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP91200708-200808

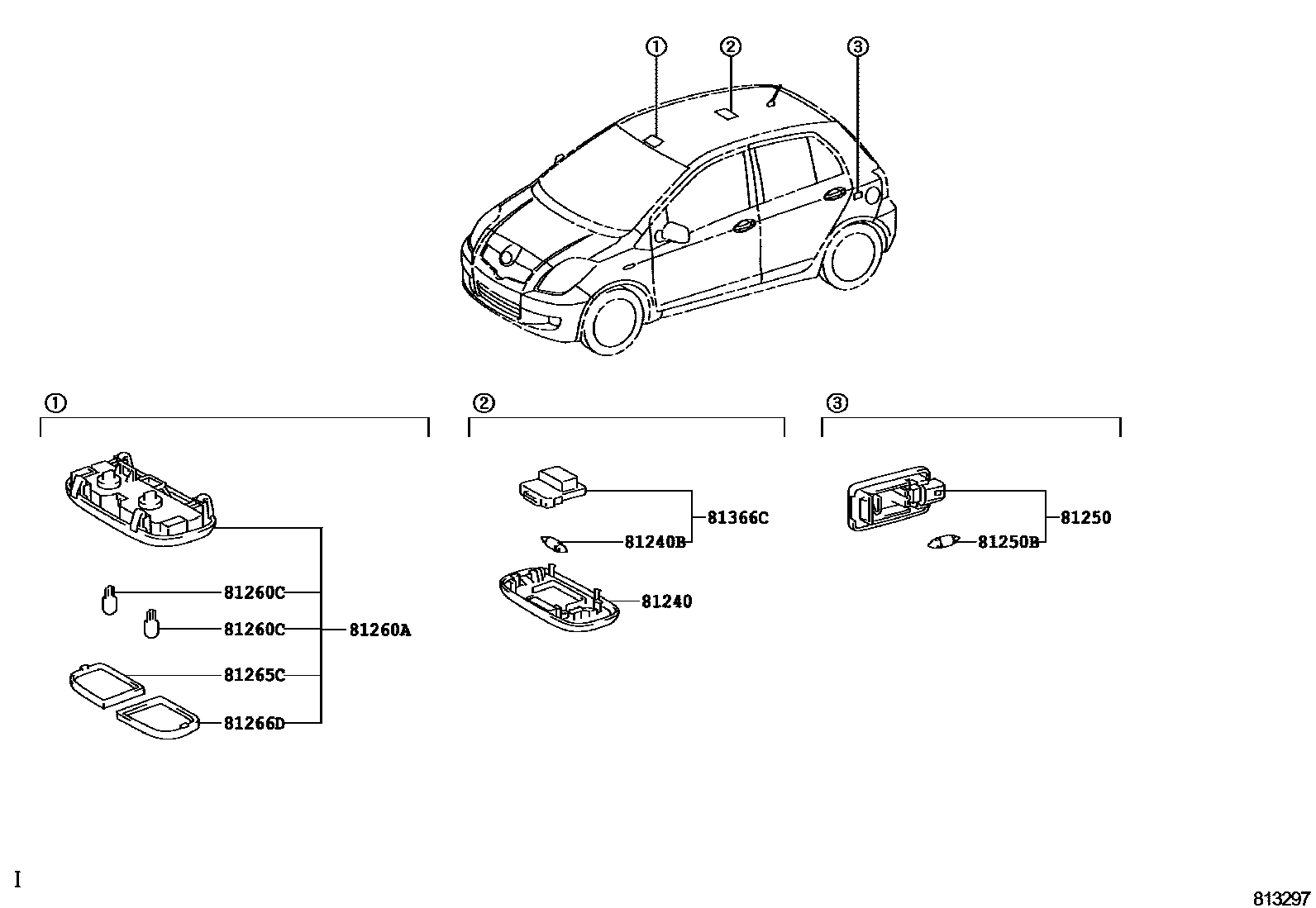

9 parts on this diagram · 1 diagram in section
