Toyota 113320 — REAR COMBINATION LAMP

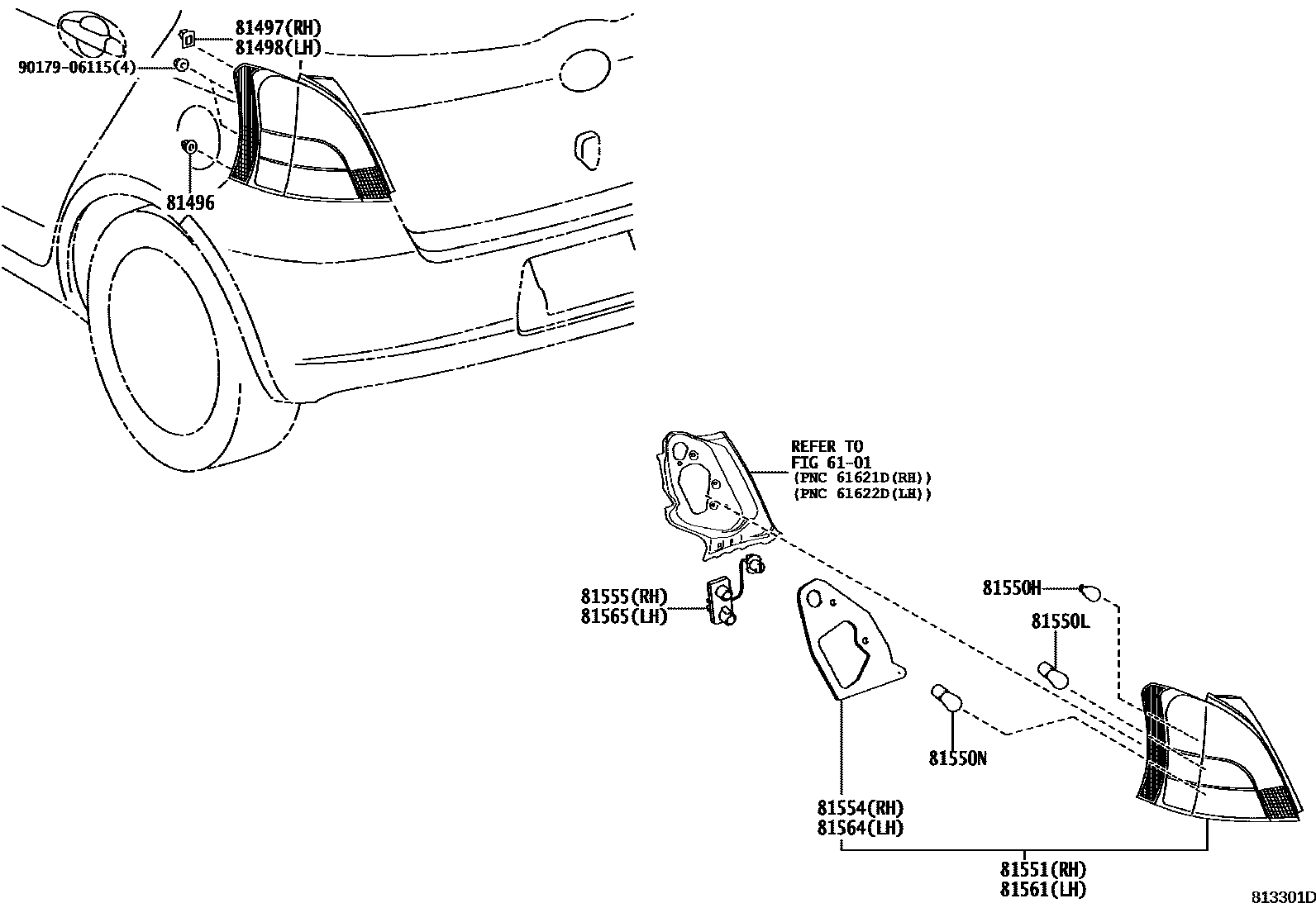

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
81496GUIDE, REAR COMBINATION LAMP
81496-52020
81497COVER, REAR COMBINATION LAMP, RH
81497-52020
81498COVER, REAR COMBINATION LAMP, LH
81497-52020
81550HBULB, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551LENS, REAR COMBINATION LAMP, RH
81551-52520
81551-52780
81554GASKET, REAR COMBINATION LAMP BODY, RH
81554-52530
81554-52710
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-52520
81555-52780
81561LENS, REAR COMBINATION LAMP, LH
81561-52460
81561-52700
81564GASKET, REAR COMBINATION LAMP BODY, LH
81564-52470
81564-52630
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-52460
81555-52780
9017906115
90179-06115

14 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota 113320

This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 113320. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, COVER, REAR COMBINATION LAMP, RH, COVER, REAR COMBINATION LAMP, LH, BULB, TAIL & STOP LAMP.
