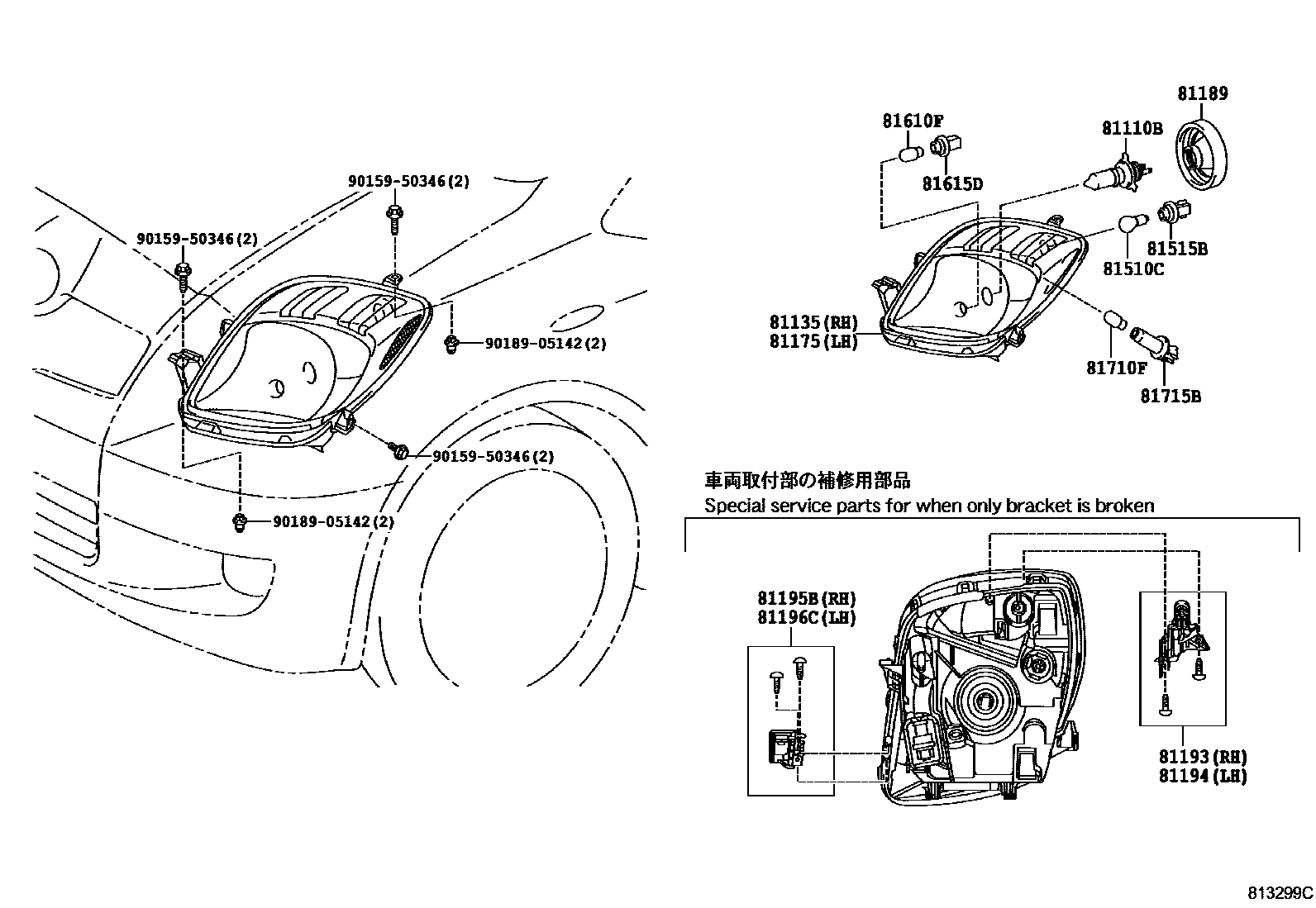

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP91200508-200708

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52610iNCP91200508-200607

main81130-52611iNCP91200608-200708

main81130-52B50iNCP91200808-201108

81175UNIT ASSY, HEADLAMP, LH

main81170-52600iNCP91200508-200607

main81170-52601iNCP91200608-200708

main81170-52B40iNCP91200808-201108

81189COVER, HEADLAMP

main81139-52570×2iNCP91200508-200708

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52080iNCP91200508-200708

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52080iNCP91200508-200708

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-52050iNCP91200508-200708

main81195-52110iNCP91200808-201107

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-52050iNCP91200508-200708

main81196-52110iNCP91200808-201107

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15020×2iNCP91200508-200708

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-52570×2iNCP91200508-200708

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP91200508-200708

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-52570×2iNCP91200508-200708

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×2iNCP91..CND;NCP91..3D..USA200508-200607

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60056×2iNCP91..CND;NCP91..3D..USA200508-200708

9015950346

main90159-50346

9018905142

main90189-05142

16 parts on this diagram · 2 diagrams in section
