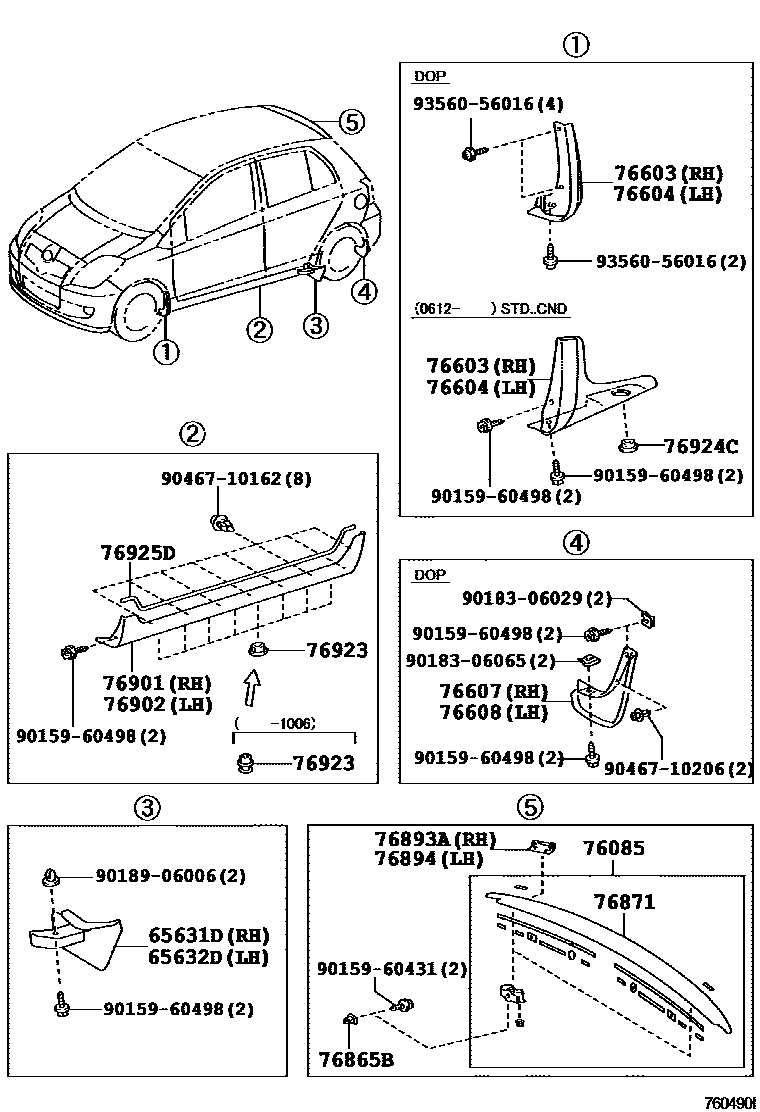

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
SILVER M.M.,1E7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,ORANGE M.M.,4S9
DK.GREEN M.M.,6S3
REAR SPOILER-WITH,DK.BLUE M.M.,8P4
BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)
NO PAINT REQ.,MUD GUARD-WITH(REAR)
NO PAINT REQ.,MUD GUARD-WITH(REAR)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)
NO PAINT REQ.,MUD GUARD-WITH(REAR)
NO PAINT REQ.,MUD GUARD-WITH(REAR)
76865BRETAINER, REAR SPOILER
REAR SPOILER-WITH
76871SPOILER, REAR
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
SILVER M.M.,1E7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,ORANGE M.M.,4S9
DK.GREEN M.M.,6S3
REAR SPOILER-WITH,DK.BLUE M.M.,8P4
BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1
76893ACOVER, REAR SPOILER, RH
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
SILVER M.M.,1E7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,ORANGE M.M.,4S9
DK.GREEN M.M.,6S3
REAR SPOILER-WITH,DK.BLUE M.M.,8P4
BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1
MEXICO SPEC,WHITE PEARL CS.,070
MEXICO SPEC,SUPER WHITE 2,040
MEXICO SPEC,GRAY ME.,1G3
MEXICO SPEC,SILVER ME.,1F7
76894COVER, REAR SPOILER, LH
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
SILVER M.M.,1E7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,ORANGE M.M.,4S9
DK.GREEN M.M.,6S3
REAR SPOILER-WITH,DK.BLUE M.M.,8P4
BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1
MEXICO SPEC,WHITE PEARL CS.,070
MEXICO SPEC,SUPER WHITE 2,040
MEXICO SPEC,GRAY ME.,1G3
MEXICO SPEC,SILVER ME.,1F7
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
SPORT PACKAGE
76923RETAINER, SIDE MUDGUARD
SPORT PACKAGE
SPORT PACKAGE
SPORT PACKAGE
76924CRETAINER, SIDE MUDGUARD, NO.2
76925DPROTECTOR, SIDE MUDGUARD, RH
MEDIUM GRAY,068 ,1E7 ,1F8
BLACK,209 ,3P0 ,4S9 ,6S3 ,8P4 ,8T0 ,8T1
SPORT PACKAGE,MEDIUM GRAY,040 ,068 ,1F8 ,5A6
BLACK,1G3 ,209 ,3P0 ,8T0 ,8T1
9015960431
main90159-60431
9015960498
main90159-60498
9018306029
main90183-06029
9018306065
main90183-06065
9018906006
main90189-06006
9046710162
main90467-10162
9046710206
main90467-10206
9356056016
main93560-56016
24 parts on this diagram · 1 diagram in section
