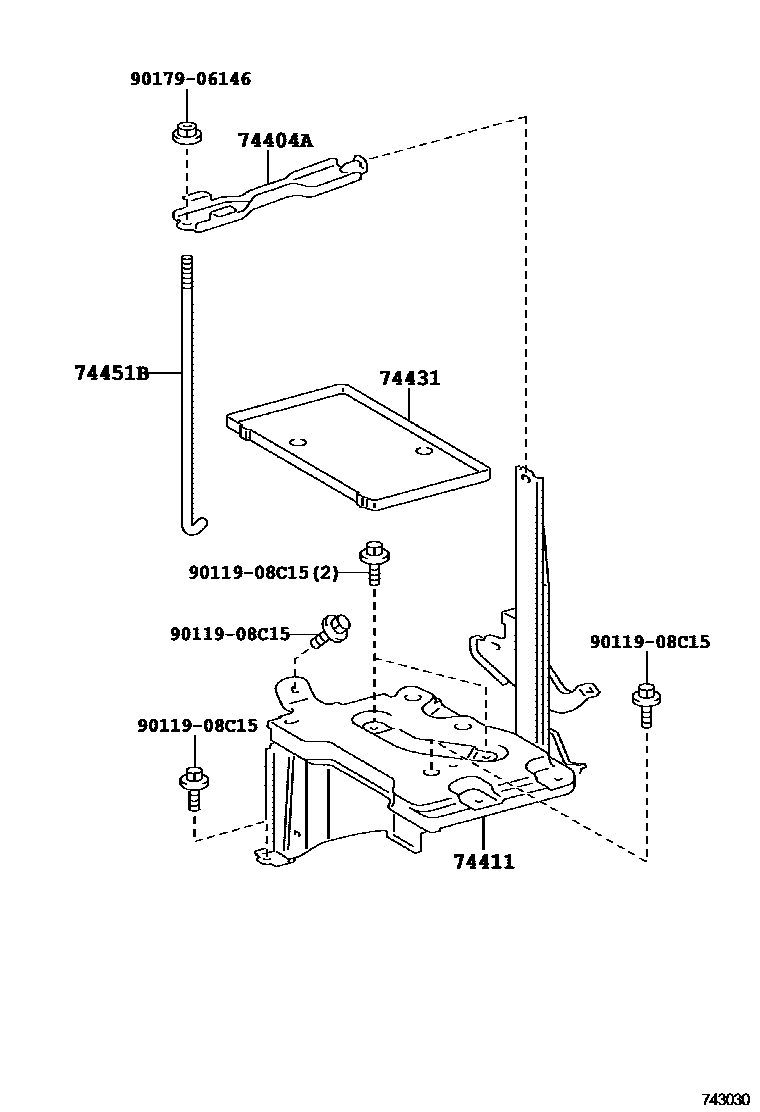

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-52080iNCP91200508-200708

74411CARRIER, BATTERY

main74410-52020iNCP91200508-200708

74431TRAY, BATTERY

main74431-52110iNCP91200508-200708

main74431-52111iNCP91201010-201107

74451BBOLT, BATTERY CLAMP

main74451-52070iNCP91200508-200708

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
