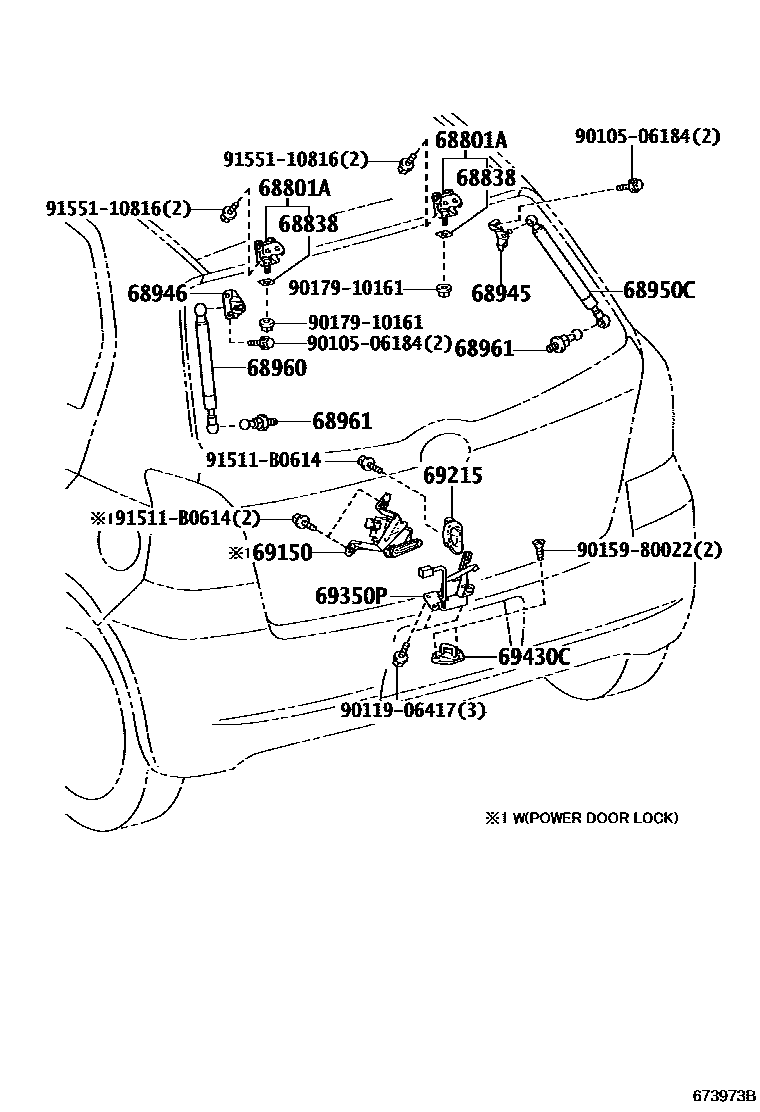

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52010×2iNCP91200508-200708

68838PAD, BACK DOOR HINGE, NO.1

main68838-10020×2iNCP91200808-201107

T=1.0

main68838-52010×2iNCP91200708-200808

T=0.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52050iNCP91200508-200708

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52050iNCP91200508-200708

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D020iNCP91200508-200702

main68950-0D021iNCP91200703-200708

main68950-0D022iNCP91200805-200808

main68950-0W390iNCP91..STD200508-200702

REAR WINDOW WIPER-WITHOUT

main68950-0W391iNCP91..STD200708-200808

REAR WINDOW WIPER-WITHOUT

68960STAY ASSY, BACK DOOR, LH

main68960-0D010iNCP91200508-200702

main68960-0D011iNCP91200703-200708

main68960-0D012iNCP91200808-201107

main68960-0W390iNCP91..STD200508-200702

REAR WINDOW WIPER-WITHOUT

main68960-0W391iNCP91..STD200708-200808

REAR WINDOW WIPER-WITHOUT

68961BOLT, BACK DOOR STAY

main68961-10030×2iNCP91200508-200708

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-52070iNCP91..3D; NCP91..5D200708-200808

POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW

main69150-52060iNCP91..USA200808-201107

PUERTO RICO SPEC

69215HANDLE, BACK DOOR OUTSIDE

main69215-52060iNCP91200508-200708

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52260iNCP91200508-200708

main69350-52261iNCP91201105-201108

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iNCP91200508-200708

9010506184

main90105-06184

9011906417

main90119-06417

9015980022

main90159-80022

9017910161

main90179-10161

91511B0614

main91511-B0614

9155110816

main91551-10816

17 parts on this diagram · 1 diagram in section
