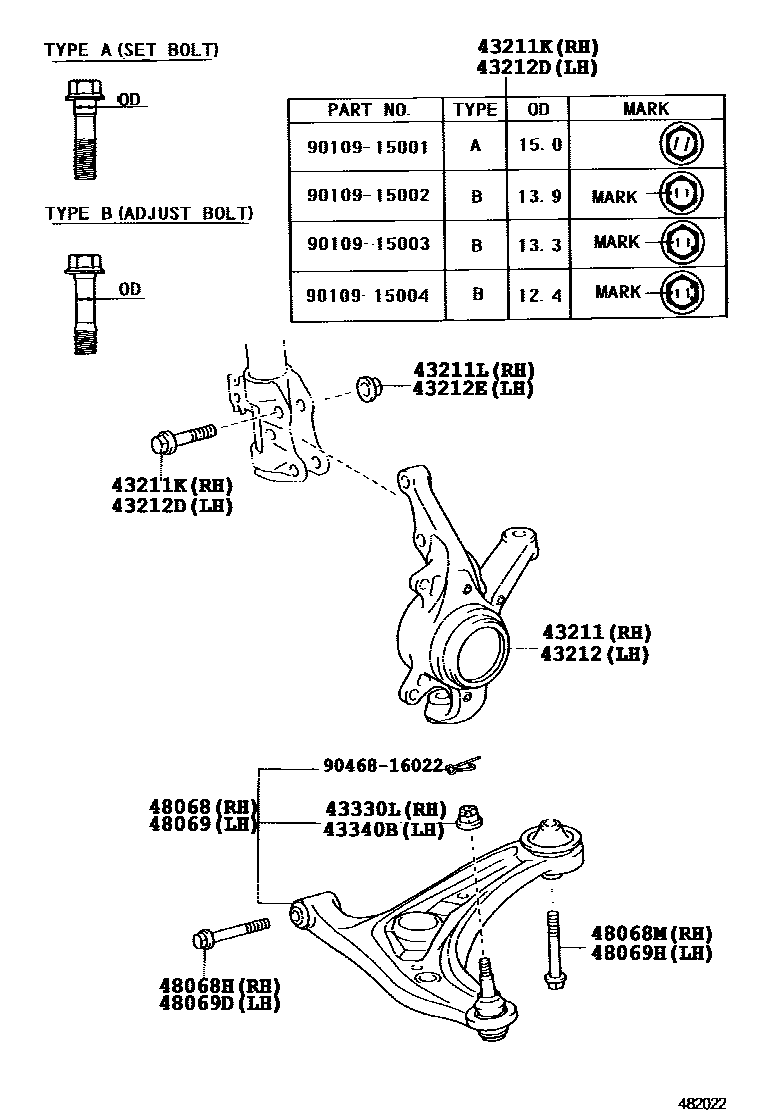

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
ABS-WITH(W/O BRAKE ASSIST)
ABS-WITHOUT
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15,TYPE A:REFER ILLUST.
OD=13.9,TYPE B:REFER ILLUST.
OD=13.3,TYPE B:REFER ILLUST.
OD=12.4,TYPE B:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
ABS (ANTI-LOCK BRK SYSTM)-WITH(W/O BRAKE ASSIST)
ABS-WITH(W/O BRAKE ASSIST)
ABS (ANTI-LOCK BRK SYSTM)-WITHOUT
ABS-WITHOUT
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15,TYPE A:REFER ILLUST.
OD=13.9,TYPE B:REFER ILLUST.
OD=13.3,TYPE B:REFER ILLUST.
OD=12.4,TYPE B:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
9046816022
main90468-16022
15 parts on this diagram · 1 diagram in section
