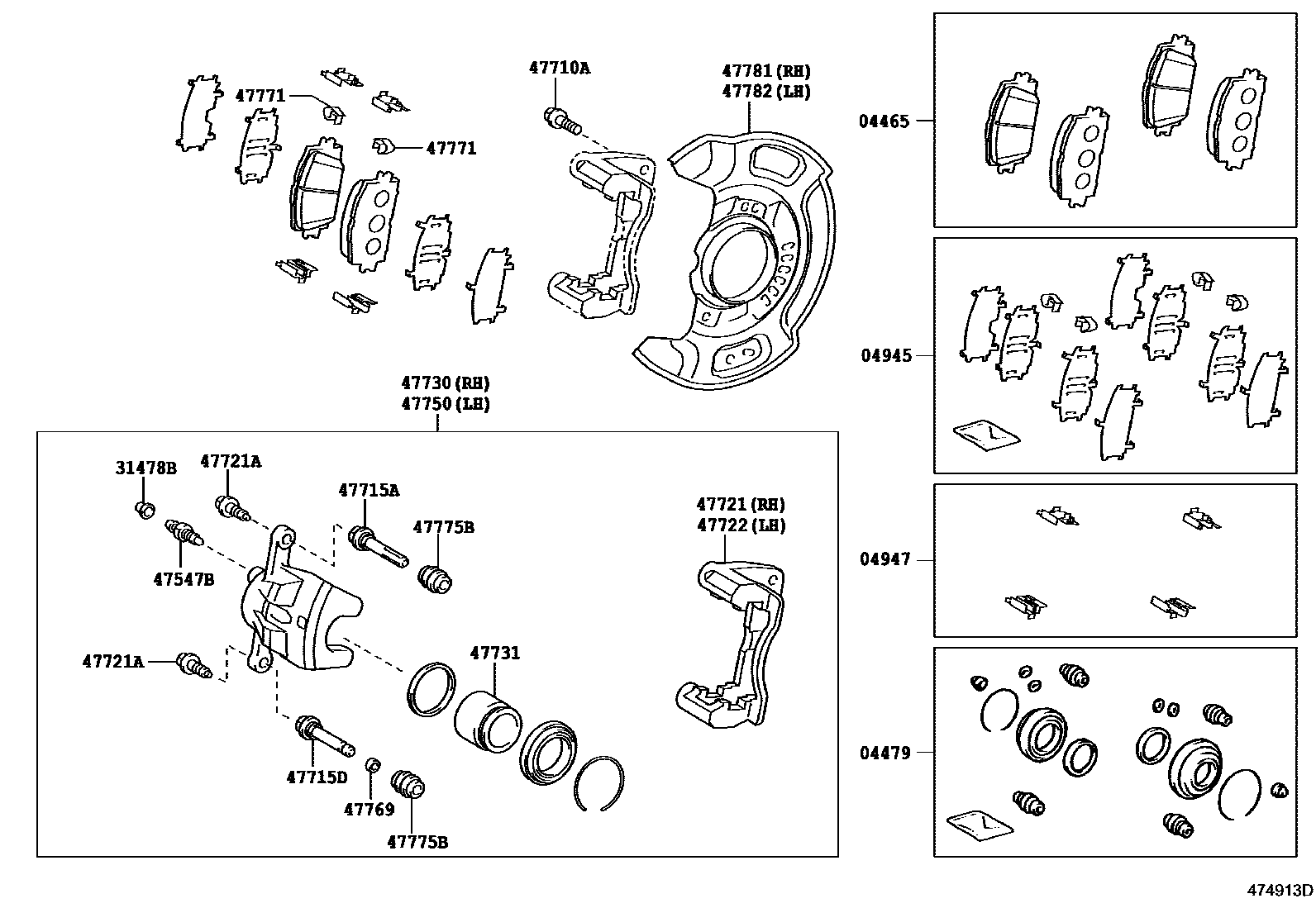

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52260iNCP91200508-201107

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52070iNCP91200508-201107

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52130iNCP91200508-201107

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNCP91200508-201107

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNCP91200508-201107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP91200508-201107

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNCP91200508-201107

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iNCP91200612-201107

main47715-22070iNCP91200508-200612

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iNCP91200508-201107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191iNCP91200508-201107

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP91200508-201107

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191iNCP91200508-201107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52191iNCP91200508-201107

47731PISTON, FRONT DISC BRAKE

main47731-52190iNCP91200508-201107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52191iNCP91200508-201107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNCP91200508-201107

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iNCP91200508-200808

47775BBOOT, BUSH DUST, NO.1

main47775-52190iNCP91200508-201108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iNCP91200508-201107

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iNCP91200508-201107

20 parts on this diagram · 1 diagram in section
