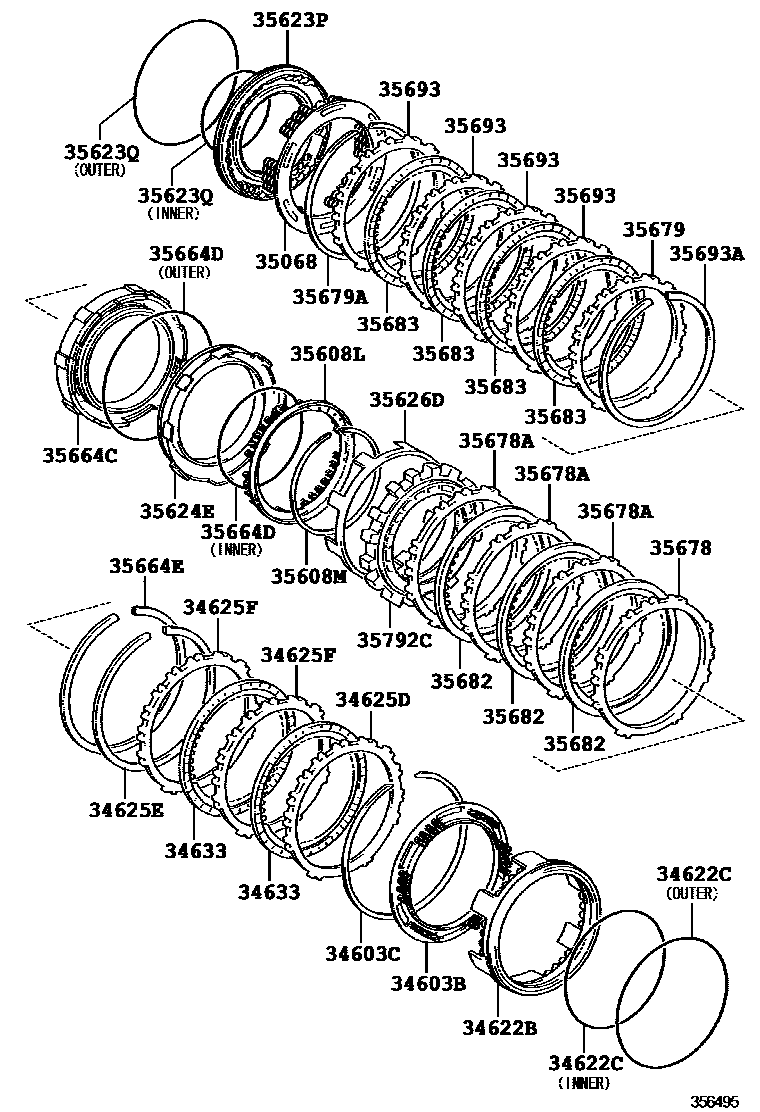

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52020iNCP91..4FC200708-200808

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99055iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52021iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99121iNCP91..4FC200808

INNER

main90301-99122iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

OUTER

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52071iNCP91..4FC200708-200808

T=4.2, MARK 5

main34625-52081iNCP91..4FC200808

T=4.4, MARK 6

main34625-52091iNCP91..4FC200808

T=4.6, MARK 7

main34625-52110iNCP91..4FC200708-200808

T=4.0, MARK 4

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99050iNCP91..4FC200708-200808

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iNCP91..4FC200708-200808

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-52030iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52020iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iNCP91..4FC200708-200808

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iNCP91..4FC200808

INNER

main90301-99117iNCP91..4FC200708-200808

OUTER

35624EPISTON, 2ND BRAKE

main35624-52020iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52020iNCP91..4FC200708-200808

35664CCYLINDER, 2ND BRAKE

main35664-52020iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99118iNCP91..4FC200808

INNER

main90301-99119iNCP91..4FC200708-200808

OUTER

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99050iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52020iNCP91..4FC200808

T=3.0

main35678-52030iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

T=3.2

main35678-52040iNCP91..4FC200708-200808

T=3.4

main35678-52050iNCP91..4FC200808

T=3.6

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020×3iNCP91..4FC200808

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52020iNCP91..4FC200808

T=3.4

main35679-52030iNCP91..4FC200808

T=3.6

main35679-52040iNCP91..4FC200808

T=3.8

main35679-52050iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

T=4.0

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99054iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52020×3iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52050×4iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52040×4iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

35792CCLUTCH, 1 WAY, NO.2

main35792-52021iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200708

27 parts on this diagram · 1 diagram in section
