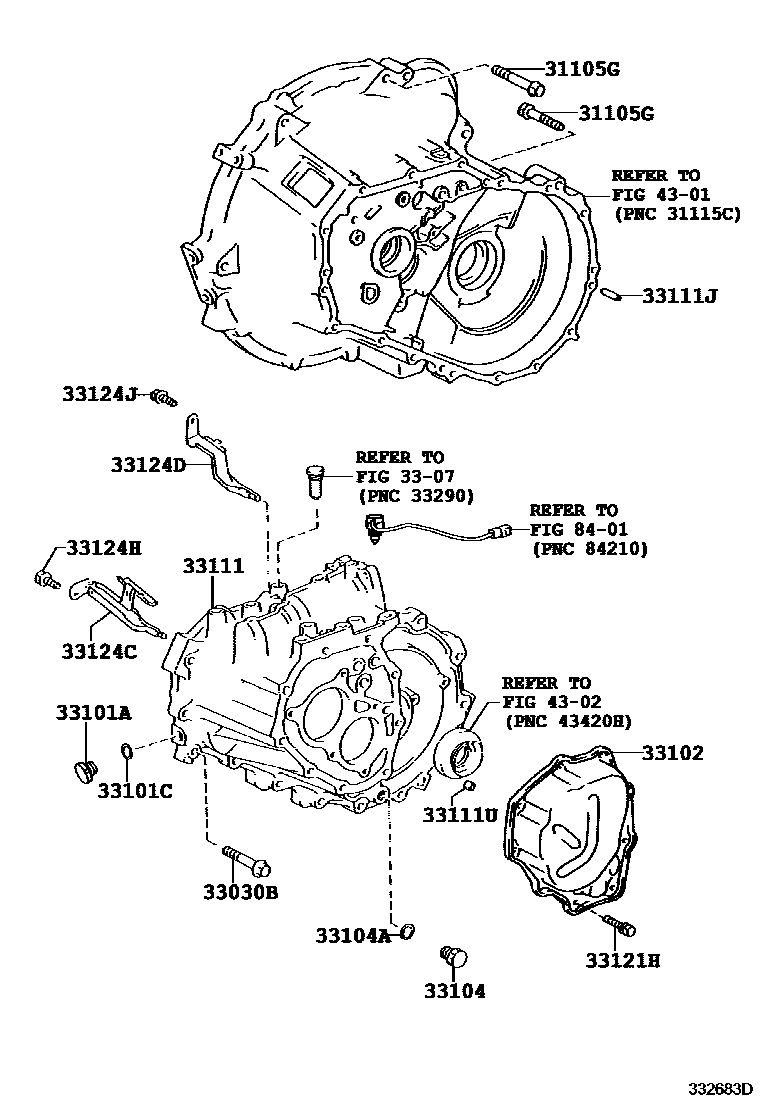

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61045iNCP91..5F200611-201108

*10-1.25PX45-30

main91612-61050iNCP91..5F..CND;NCP91..3D..5F..USA200508-200610

*10-1.25PX50-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP91..5F200508-201107

*8-1.25PX50-30

main90105-08430iNCP91..5F200508-201107

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNCP91..5F200508-200808

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP91..5F200508-200808

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP91..5F200508-200808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18033iNCP91..5F200508-200808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP91..5F200508-200808

33111CASE, MANUAL TRANSMISSION

main33111-12260iNCP91..5F200811

main33111-52120iNCP91..5F200508-200811

sub33111-12260

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP91..5F200508-200808

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNCP91..5F200508-200808

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNCP91..5F200811

main90119-08782iNCP91..5F200603-200811

main91611-60835iNCP91..5F200508-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNCP91..5F200508-200808

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNCP91..5F200508-200808

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP91..5F200508-200808

33124JBOLT, W/WASHER

main91611-G0820iNCP91..5F200508-200808

4301

4302

8401

19 parts on this diagram · 1 diagram in section
