Toyota ECHO — REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
8271152060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
9046907002
9046907011

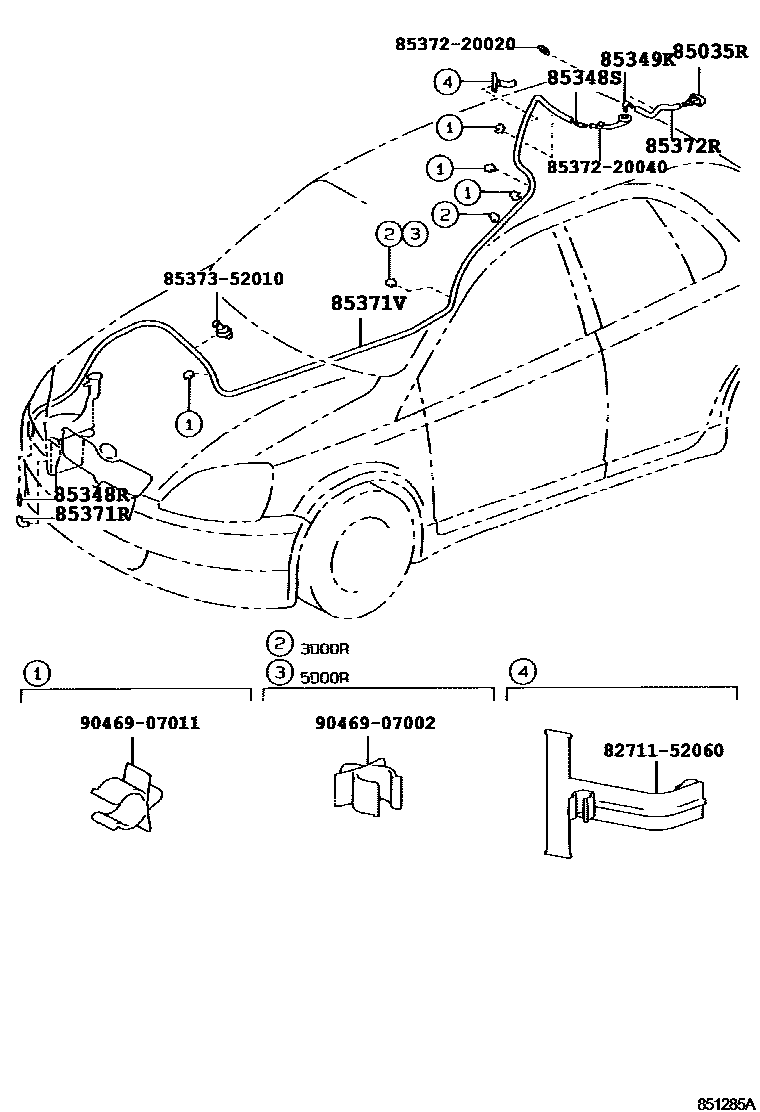

13 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota ECHO
This section contains 13 genuine Toyota parts for the REAR WASHER system of the Toyota ECHO. Key components include: NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER ELBOW, NO.2, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
