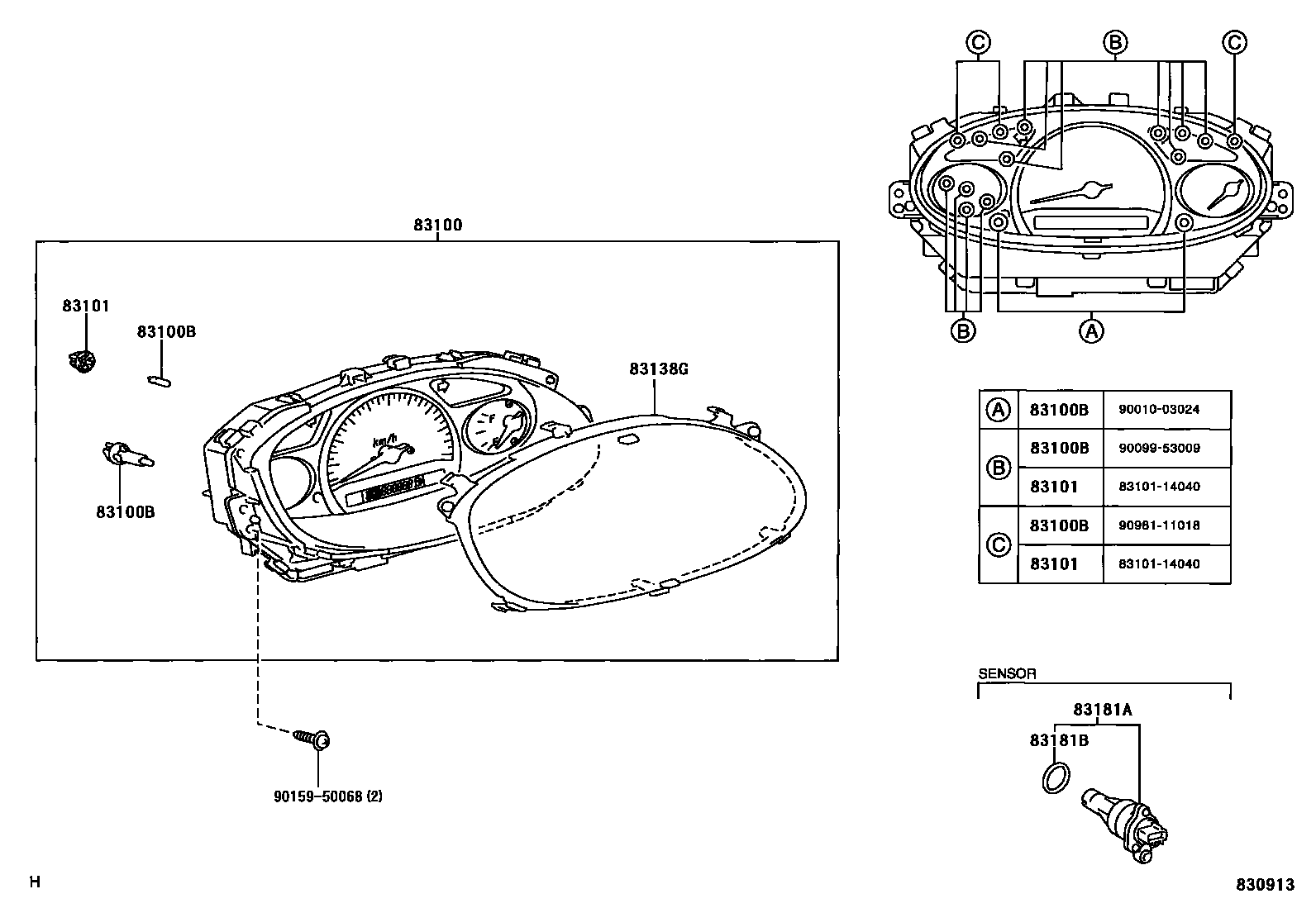

METER
83100METER ASSY, COMBINATION
83100BBULB, COMBINATION METER, NO.1
14V 1.4W,TYPE A:REFER ILLUST.
14V 2W,TYPE A:REFER ILLUST.
14V 2W,W(BLUE CAP),TYPE C:REFER ILLUST.
14V 1.1W,TYPE B:REFER ILLUST.
14V0.84W W/O(SOCKET),TYPE B:REFER ILLUST.
12V 1.2W W/O SOCKET,TYPE C:REFER ILLUST.
83101SOCKET SUB-ASSY, COMBINATION METER BULB
T/P B,C:SEE ILLUST.
TYPE B:REFER ILLUST.
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
9015950068
main90159-50068
7 parts on this diagram · 2 diagrams in section
