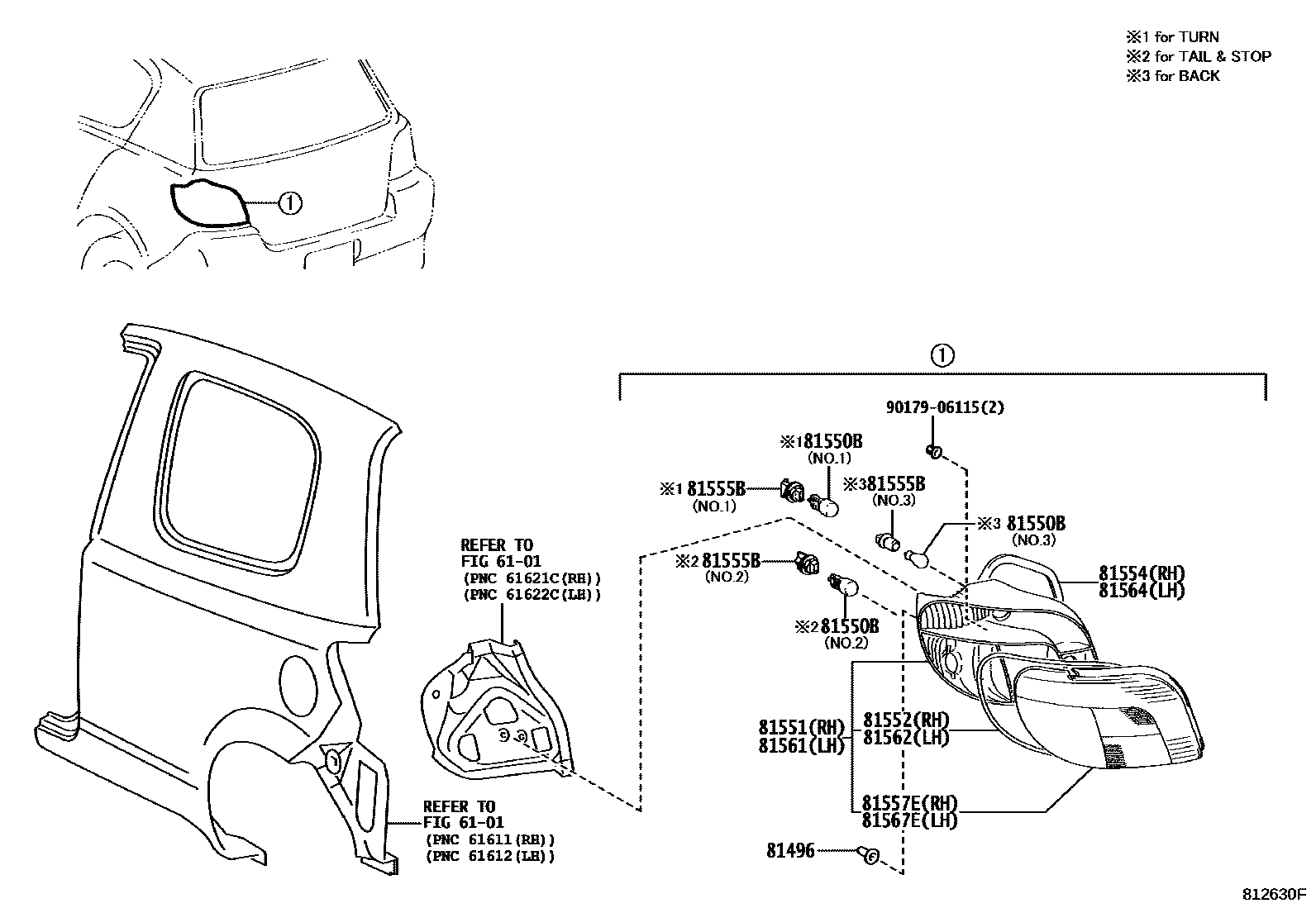

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52010iNCP13200306

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iNCP13200306-200508

12V 21W,NO.3

main90981-13044iNCP13200306-200508

12V 21/5W,NO.2

main90981-15009iNCP13200306-200508

12V 21W,AMBER,NO.1

81551LENS, REAR COMBINATION LAMP, RH

main81551-52450iNCP13200306

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52020iNCP13200306

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52020iNCP13200306

81555BSOCKET PLUG, NO.1

main90075-60015iNCP13200306

NO.3

main90075-60017iNCP13200306

NO.2

main90075-60019iNCP13200306

NO.1

81557ELENS, REAR COMBINATION LAMP, RH NO.2

main81557-52450iNCP13200306

81561LENS, REAR COMBINATION LAMP, LH

main81561-52400iNCP13200306

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52020iNCP13200306

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52020iNCP13200306

81567ELENS, REAR COMBINATION LAMP, LH NO.2

main81567-52400iNCP13200306

9017906115

main90179-06115

13 parts on this diagram · 1 diagram in section
