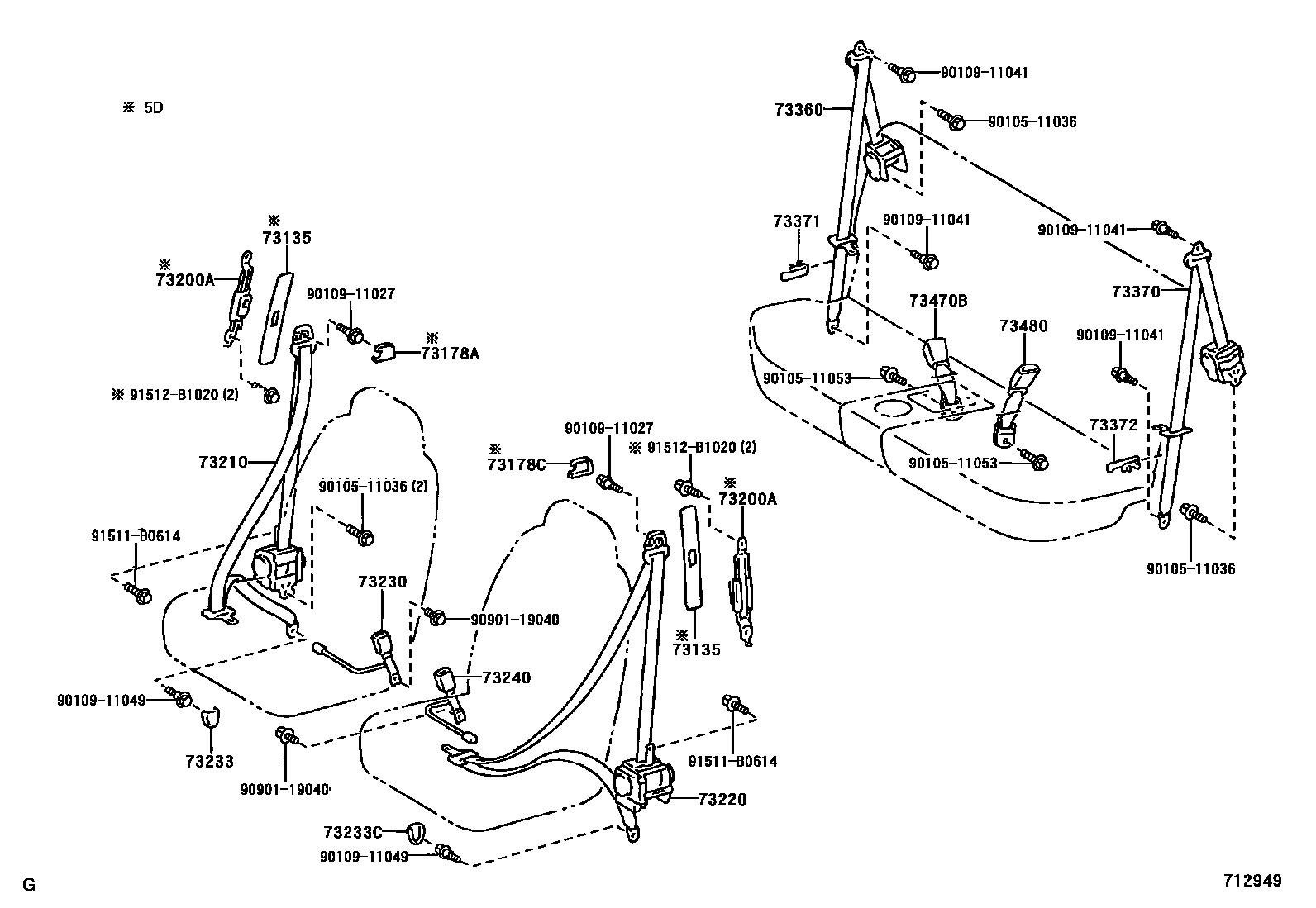

SEAT BELT & CHILD RESTRAINT SEAT
73135COVER, SHOULDER BELT ANCHORAGE PLATE
LT.GRAY,TRIM9#
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM9#
73178CCAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM9#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM9#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM9#
BLACK,TRIM9#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM9#
BLACK,TRIM9#
73230BELT ASSY, FRONT SEAT INNER, RH
DK.GRAY,TRIM9#,TRIM = YN**
SPORT SEAT,DK.GRAY,TRIM9#,TRIM = YP**
73233COVER, LAP BELT OUTER ANCHOR
DK.GRAY,TRIM9#
73233CCOVER, LAP BELT OUTER ANCHOR, LH
DK.GRAY,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
DK.GRAY,TRIM9#
DK.GRAY,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLACK,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLACK,TRIM9#
73371HANGER, REAR SEAT SHOULDER BELT, RH
DK.GRAY,TRIM9#
73372HANGER, REAR SEAT SHOULDER BELT, LH
DK.GRAY,TRIM9#
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
BLACK,TRIM9#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
BLACK,TRIM9#
9010511036
main90105-11036
9010511053
main90105-11053
9010911027
main90109-11027
9010911041
main90109-11041
9010911049
main90109-11049
9090119040
main90901-19040
91511B0614
main91511-B0614
91512B1020
main91512-B1020
24 parts on this diagram · 1 diagram in section
