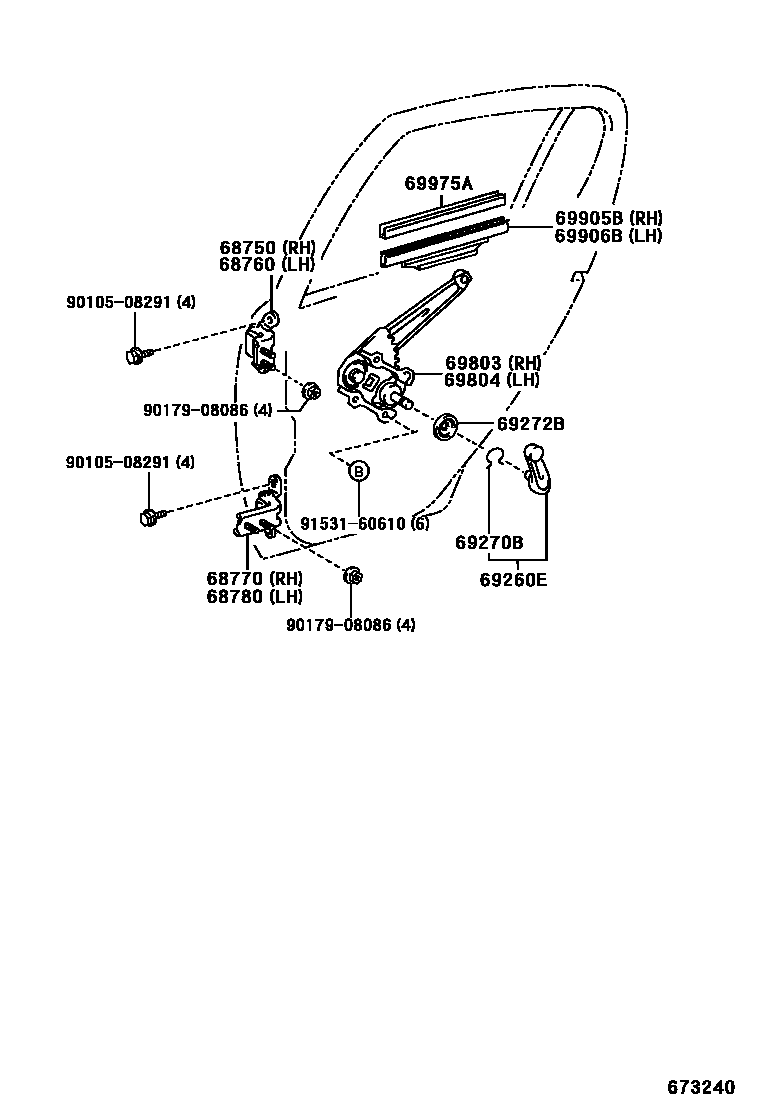

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-52011iNCP13..5D200306-200508

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-52011iNCP13..5D200306-200508

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52011iNCP13..5D200306-200508

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52011iNCP13..5D200306-200508

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52030-B4×2iNCP13..5D200306-200508

DK.GRAY,TRIM9#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iNCP13..5D200306

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iNCP13..5D200306

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-52020iNCP13..5D200306

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-52020iNCP13..5D200306

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52010iNCP13..5D200306

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52020iNCP13..5D200306

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP13..5D200306

9010508291

main90105-08291

9017908086

main90179-08086

9153160610

main91531-60610

15 parts on this diagram · 1 diagram in section
