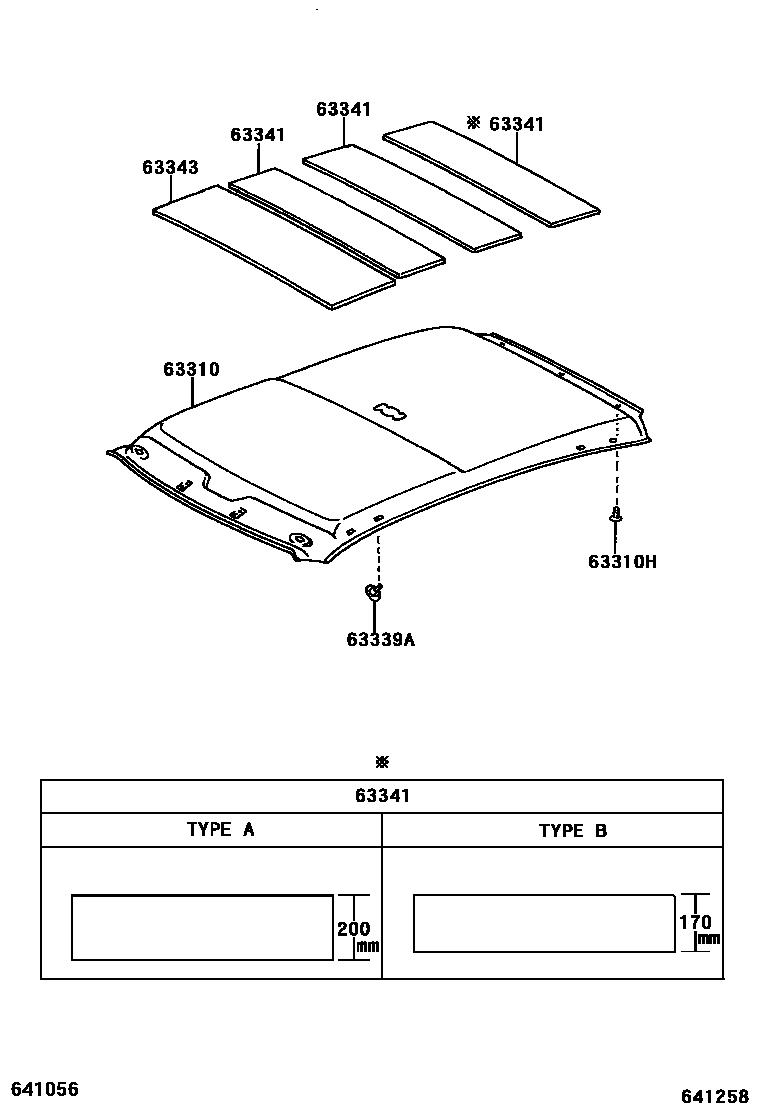

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-52850-B0iNCP13..5D200306-200508

LT. GRAY,TRIM9#

main63310-52870-B0iNCP13..3D200306-200508

LT. GRAY,TRIM9#

63310HCLIP(FOR ROOF HEADLINING)

main90467-08213-B0×3iNCP13200306-200508

LT.GRAY,TRIM9#

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-52010-B0×2iNCP13..3D; NCP13..5D200306-200508

LT.GRAY,TRIM9#

63341PAD, ROOF SILENCER, NO.1

main63341-12160×3iNCP13200306

TYPE A:REFER TO ILLUSTRATION

main63342-52080iNCP13200306

TYPE B:REFER TO ILLUSTRATION

63343PAD, ROOF SILENCER, NO.3

main63343-12050iNCP13200306

5 parts on this diagram · 1 diagram in section
