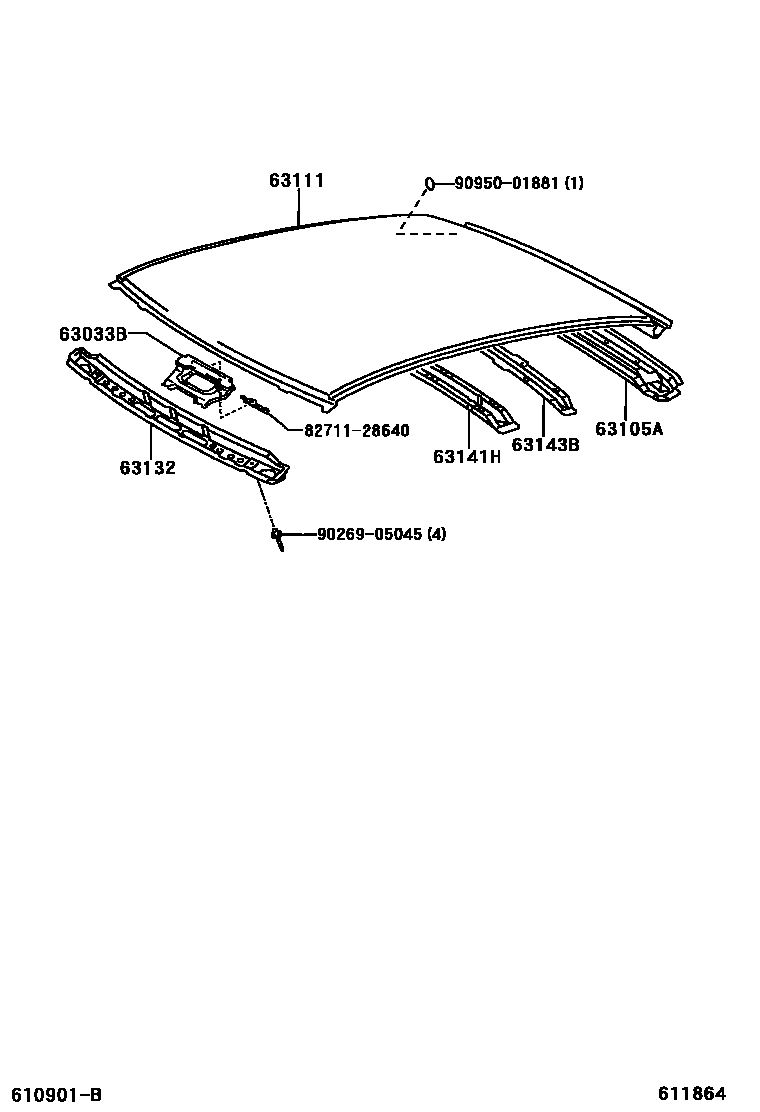

ROOF PANEL & BACK WINDOW GLASS

63033BBRACKET SUB-ASSY, ROOM LAMP, NO.1

main63033-52020iNCP13200306

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52011iNCP13200306

63111PANEL, ROOF

main63111-52370iNCP13200306

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52011iNCP13200306

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52010iNCP13200306

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52010iNCP13200306

8271128640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28640

9026905045

main90269-05045

9095001881

main90950-01881

9 parts on this diagram · 1 diagram in section
