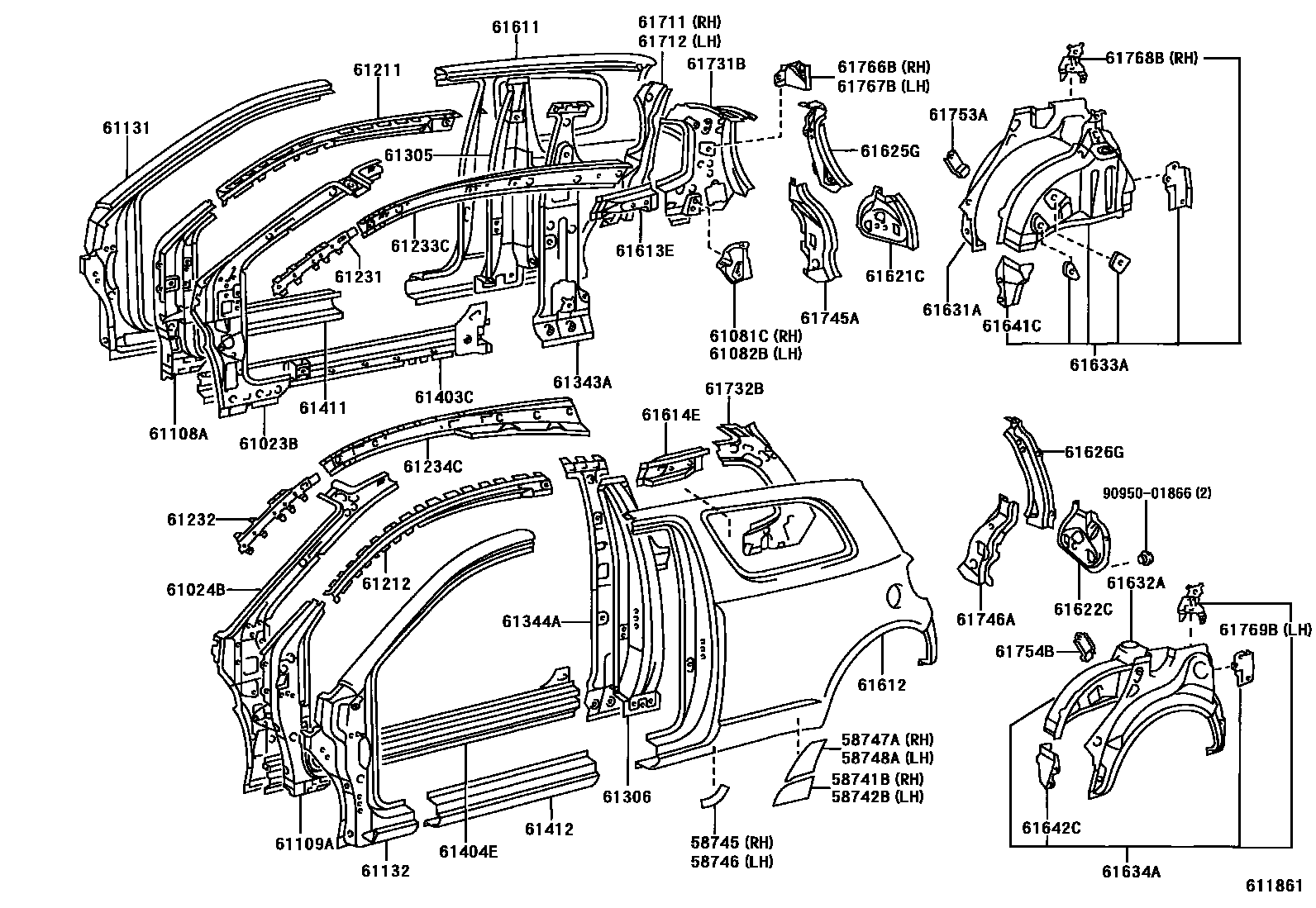

SIDE MEMBER

0001 1SIDE MEMBER 0002 1SIDE MEMBER 0003 1PLUG, HOLE 0004 1PLUG, HOLE 0005 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-52012iNCP13..5D200306

main58741-52022iNCP13..3D200306

main58741-52080iNCP13..5D200306

W(SIDE MUDGUARD)

58742BPROTECTOR, QUARTER PANEL, LH

main58742-52012iNCP13..5D200306

main58742-52022iNCP13..3D200306

main58742-52080iNCP13..5D200306

W(SIDE MUDGUARD)

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58745-52010iNCP13..3D200306

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58746-52010iNCP13..3D200306

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-52012iNCP13..5D200306

main58747-52022iNCP13..3D200306

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-52012iNCP13..5D200306

main58748-52022iNCP13..3D200306

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52100iNCP13200306-200508

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-52080iNCP13200306-200508

61081CREINFORCE, ROOF SIDE, INNER RH

main61081-52010iNCP13..5D200306

main61081-52020iNCP13..3D200306

61082BREINFORCE, ROOF SIDE, INNER LH

main61082-52010iNCP13..5D200306

main61082-52020iNCP13..3D200306

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52100iNCP13200306

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-52120iNCP13200306

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52010iNCP13200306

main61131-52090iNCP13..5D200306

W(SIDE MUDGUARD)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52010iNCP13200306

main61132-52080iNCP13..5D200306

W(SIDE MUDGUARD)

61211RAIL, ROOF SIDE, OUTER RH

main61201-52050iNCP13..3D200306

main61201-52060iNCP13..5D200306

61212RAIL, ROOF SIDE, OUTER LH

main61202-52050iNCP13..5D200306

main61202-52060iNCP13..3D200306

61231RAIL, ROOF SIDE, INNER RH

main61231-52250iNCP13200306

61232RAIL, ROOF SIDE, INNER LH

main61232-52260iNCP13200306

61233CHOLDER, SEAT BELT COVER, RH

main61233-52120iNCP13..5D200306-200508

main61233-52140iNCP13..3D200306-200508

61234CHOLDER, SEAT BELT COVER, LH

main61234-52120iNCP13..5D200306-200508

main61234-52140iNCP13..3D200306-200508

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-52070iNCP13..3D200306

main61305-52901iNCP13..5D200306

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-52090iNCP13..3D200306

main61306-52901iNCP13..5D200306

61343APILLAR, CENTER BODY, INNER RH

main61343-52903iNCP13..5D200306

main61343-52904iNCP13..3D200306

61344APILLAR, CENTER BODY, INNER LH

main61344-52903iNCP13..5D200306

main61344-52904iNCP13..3D200306

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52110iNCP13..3D200306

main61403-52120iNCP13..5D200306

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-52110iNCP13..3D200306

main61404-52120iNCP13..5D200306

61411PANEL, ROCKER, OUTER RH

main61411-52010iNCP13..5D200306

main61411-52020iNCP13..3D200306

main61411-52120iNCP13..5D200306

W(SIDE MUDGUARD)

61412PANEL, ROCKER, OUTER LH

main61412-52010iNCP13..5D200306

main61412-52020iNCP13..3D200306

main61412-52120iNCP13..5D200306

W(SIDE MUDGUARD)

61611PANEL, QUARTER, RH

main61601-52010iNCP13..5D200306

sub61601-52011

main61601-52120iNCP13..5D200306

W(SIDE MUDGUARD)

sub61601-52121

main61611-52020iNCP13..3D200306

61612PANEL, QUARTER, LH

main61602-52010iNCP13..5D200306

sub61602-52011

main61602-52020iNCP13..3D200306

main61602-52140iNCP13..5D200306

W(SIDE MUDGUARD)

sub61602-52141

61613EPANEL, QUARTER, INNER RH

main61613-52010iNCP13..3D200306

61614EPANEL, QUARTER, INNER LH

main61614-52010iNCP13..3D200306

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-52010iNCP13200306

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-52010iNCP13200306

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-52010iNCP13200306

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-52010iNCP13200306

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52010iNCP13200306

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-52010iNCP13200306

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52914iNCP13200306

W(ABS)

main61607-52915iNCP13200306

sub90333-25003

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-52914iNCP13200306

W(ABS)

main61608-52915iNCP13200306

sub90333-25003

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52010iNCP13200306

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-52010iNCP13200306

61711PANEL, ROOF SIDE, OUTER RH

main61711-52011iNCP13..5D200306

main61711-52020iNCP13..3D200306

61712PANEL, ROOF SIDE, OUTER LH

main61712-52011iNCP13..5D200306

main61712-52020iNCP13..3D200306

61731BPANEL, ROOF SIDE, INNER RH

main61731-52011iNCP13..5D200306

main61731-52021iNCP13..3D200306

61732BPANEL, ROOF SIDE, INNER LH

main61732-52011iNCP13..5D200306

main61732-52021iNCP13..3D200306

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-52010iNCP13200306

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-52010iNCP13200306

61753ARETAINER, QUARTER TRIM, LOWER

main61753-10050iNCP13..3D200306

61754BRETAINER, QUARTER TRIM, LOWER LH

main61754-10040iNCP13..3D200306

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-52010iNCP13200306

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-52010iNCP13200306

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-52010iNCP13200306

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-52010iNCP13200306

9095001866

main90950-01866

55 parts on this diagram · 5 diagrams in section
